  • Zero-Touch Provisioning Architecture for ISP CPE Rollouts: A Technical Guide to Automated Device Onboarding, ACS Integration, and Fleet Management at Scale

    Zero-Touch Provisioning Architecture for ISP CPE Rollouts: A Technical Guide to Automated Device Onboarding, ACS Integration, and Fleet Management at Scale

    For ISPs and telecom operators managing thousands of customer premises equipment (CPE) units, the manual configuration of each device represents one of the largest operational cost centers. Zero-touch provisioning (ZTP) — the ability to automatically configure and activate CPE upon first connection without any field technician or end-user intervention — has evolved from a nice-to-have feature to a competitive necessity in 2026. This guide examines the architecture, protocols, and vendor selection criteria for deploying ZTP at scale.

    What Is Zero-Touch Provisioning for CPE?

    Zero-touch provisioning is an automated device onboarding workflow where a CPE unit, upon initial power-up and internet connectivity, automatically discovers its management server, authenticates itself, downloads configuration parameters, and becomes operational without human intervention. The process typically completes within minutes and covers firmware version verification, WAN/LAN interface configuration, Wi-Fi SSID and security setup, VoIP SIP account provisioning, and service-specific VLAN assignments.

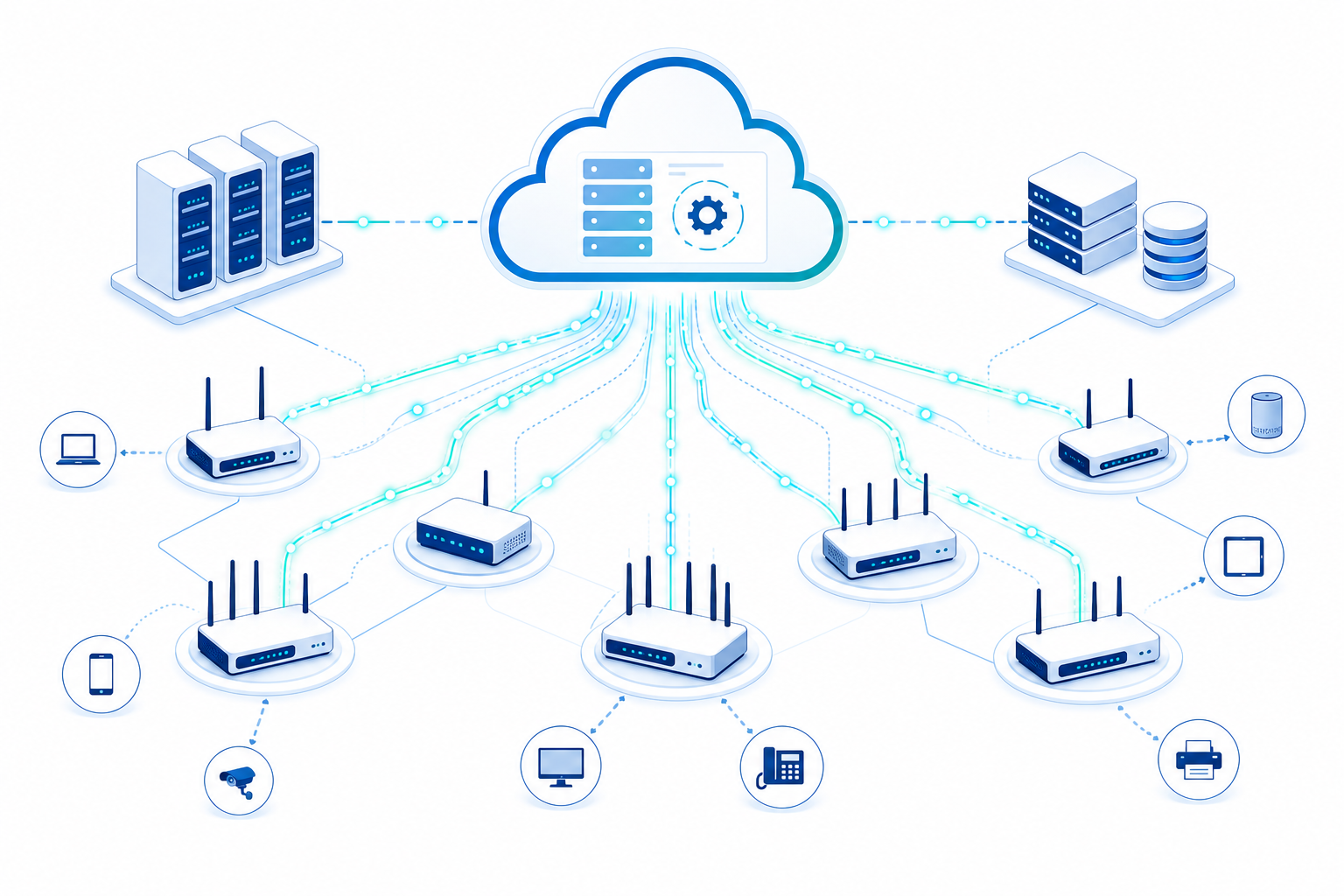

    The ZTP Architecture: Core Components

    A production-grade ZTP system for ISP-scale CPE deployments consists of four integrated components:

    1. Auto-Configuration Server (ACS)

    The ACS is the central management platform that communicates with CPE devices. Modern deployments use TR-069 (CWMP) for legacy fleet management and TR-369 (User Services Platform/USP) for new device onboarding. USP offers significant advantages: WebSocket-based always-on connections replacing periodic TR-069 Inform messages, support for MQTT message brokers for IoT-scale deployments, and a more efficient data model based on the Broadband Forum’s Device:2.16 root data model. When selecting an ACS, operators should verify multi-vendor CPE support, horizontal scalability for 100,000+ device fleets, and API-driven integration with existing OSS/BSS systems.

    2. Bootstrapping and Device Identity

    Every ZTP workflow begins with device identity. CPE must present a unique, cryptographically verifiable identity to the ACS before receiving configuration. Common approaches include: X.509 device certificates burned into factory firmware, IMEI-based identification with pre-provisioned ACS URL via DHCP Option 43, and SZTP (RFC 8572) bootstrapping for secure zero-touch onboarding in multi-vendor environments. Manufacturers that pre-load device certificates and ACS URLs into firmware significantly reduce operator integration effort — a key differentiator in CPE supplier selection.

    3. Configuration Template Engine

    Rather than configuring each device individually, ZTP systems use parameterized configuration templates. A single template defines the standard configuration for a device class (e.g., “Residential FWA CPE — Region A”), with variables populated from the subscriber management database during provisioning. Template variables typically include WAN IP assignment mode, PPPoE credentials or DHCP settings, Wi-Fi SSID and WPA3 passphrase, VoIP SIP credentials, and QoS policy references. Operators should require that CPE vendors support the Broadband Forum’s TR-181 Device Data Model to ensure template portability across hardware generations.

    4. Firmware Lifecycle Management

    ZTP extends beyond initial configuration to ongoing firmware management. During provisioning, the ACS should verify the device firmware version against a defined minimum baseline template. If the firmware is outdated, the ZTP workflow pauses configuration, triggers a firmware upgrade, reboots the device, and then resumes provisioning. This ensures every deployed CPE runs a known-good firmware version before entering service — critical for security compliance and feature consistency across the fleet.

    Vendor Selection Criteria for ZTP-Ready CPE

    When evaluating CPE suppliers for ZTP-enabled deployments, ISP procurement teams should assess these capabilities:

    • TR-069/TR-369 Protocol Support: Does the CPE support both CWMP and USP? Is the USP agent conformant with Broadband Forum TP-469 Conformance Test Plan?
    • Factory Certificate Provisioning: Can the manufacturer pre-load device certificates and ACS bootstrap URLs during production?
    • TR-181 Data Model Coverage: What percentage of the TR-181 Device:2 root data model is implemented? Critical objects include Device.WiFi., Device.Ethernet., Device.IP., and Device.QoS.
    • ACS Interoperability Testing: Has the supplier tested interoperability with leading ACS platforms (Axiros, Friendly Technologies, AVSystem, Incognito)?
    • Customization Flexibility: Can the manufacturer customize the default configuration file, firmware splash page, and bootstrap URL per operator requirements?
    • Bulk Provisioning API: Does the supplier provide tools or APIs for bulk device pre-provisioning — uploading IMEI/Serial-to-subscriber mappings before shipment?

    Deployment Best Practices

    Operators implementing ZTP at scale should follow these practices: begin with a staged rollout — a small pilot fleet of 500-1,000 devices to validate the full ZTP workflow before scaling. Define clear provisioning state machines with timeout and retry logic for each step. Monitor provisioning success rates by device model, firmware version, and geographic region to identify patterns in failures. Maintain a fallback manual provisioning path for edge cases — approximately 2-5% of devices will require human intervention even in mature ZTP deployments. Finally, require that CPE vendors provide a dedicated engineering contact for ZTP integration support during the initial deployment phase.

    Frequently Asked Questions

    What is the difference between TR-069 and TR-369 for ZTP?

    TR-069 (CWMP) uses periodic HTTP-based inform messages initiated by the CPE, creating a polling-based communication model. TR-369 (USP) uses persistent WebSocket connections initiated by the CPE agent, allowing the ACS to push configuration changes and firmware updates in real time. USP also supports MQTT as a transport protocol for IoT-scale device fleets and provides a more granular, efficient data model.

    How long does a typical ZTP process take?

    A well-optimized ZTP workflow typically completes within 3-8 minutes from device power-on to operational service, including DHCP acquisition, ACS discovery, configuration download, and service activation. Firmware upgrades during provisioning add 2-5 minutes depending on image size and connection speed.

    Can ZTP work without an ACS?

    Lightweight ZTP can be achieved without a full ACS using DHCP options to deliver a configuration file URL or by pre-loading configuration into device firmware. However, these approaches lack the ongoing management, monitoring, and firmware lifecycle capabilities of an ACS-managed deployment and are suitable only for small-scale or single-purpose deployments.

    Planning a large-scale CPE deployment? Honlly Telecom offers ZTP-ready devices with pre-loaded certificates, ACS interoperability testing, and dedicated integration support. Contact our engineering team →

  • 5G FWA and Wi-Fi 7 Convergence: Architectural Strategies for Multi-Gigabit Indoor Coverage in MDU and Enterprise Deployments

    5G FWA and Wi-Fi 7 Convergence: Architectural Strategies for Multi-Gigabit Indoor Coverage in MDU and Enterprise Deployments

    The convergence of 5G Fixed Wireless Access and Wi-Fi 7 represents the most significant architectural shift in broadband CPE design since the introduction of integrated DOCSIS-Wi-Fi gateways. For operators deploying FWA services to multi-dwelling units (MDUs), enterprise campuses, and dense urban environments, the end-to-end interaction between the 5G WAN link and the Wi-Fi 7 indoor distribution layer determines whether subscribers experience the multi-gigabit performance that 5G-Advanced networks can deliver. This analysis examines the architectural considerations, trade-offs, and deployment strategies for converged 5G FWA + Wi-Fi 7 CPE platforms.

    The Bottleneck Problem: Why Wi-Fi 6E Is Not Enough for 5G-Advanced FWA

    5G-Advanced networks based on 3GPP Release 18 specifications are delivering peak downlink speeds of 5-8 Gbps in commercial FWA deployments, with 10 Gbps expected as carrier aggregation configurations expand to 6-8 component carriers and 256-QAM modulation becomes standard on the downlink. However, the indoor distribution layer — traditionally a Wi-Fi 6E access point operating in 160 MHz channels with 1024-QAM — caps per-client throughput at approximately 1.2-1.8 Gbps under ideal conditions. For a single-user scenario where the subscriber’s primary device needs to access the full WAN capacity, Wi-Fi 6E becomes the binding constraint.

    Wi-Fi 7 addresses this bottleneck through three mechanisms working in concert: 320 MHz channel bandwidth (doubling the spectral resource), 4K-QAM modulation (20% more bits per symbol), and Multi-Link Operation (aggregating throughput across frequency bands). A triband Wi-Fi 7 CPE with STR-MLO can deliver 4.5-5.2 Gbps to a single Wi-Fi 7 client — approaching parity with the 5G-Advanced downlink capacity and effectively removing the indoor distribution bottleneck for all current and near-term FWA deployment scenarios.

    Architectural Models for Converged 5G FWA + Wi-Fi 7 CPE

    Model 1: Integrated Single-Box CPE

    The integrated single-box approach combines the 5G modem, Wi-Fi 7 access point, and Ethernet switch in a single enclosure. This is the dominant architecture for residential and SMB FWA deployments, accounting for approximately 85% of operator CPE shipments in 2026 according to Omdia.

    Advantages: Lowest BOM cost, simplest installation (single power supply, single device to provision), unified device management via TR-369 USP or TR-069, and simplified subscriber support. The integrated thermal design can share heatsink and ventilation resources between the 5G modem and Wi-Fi 7 subsystems.

    Disadvantages: Fixed physical placement — the optimal location for 5G reception (typically near a window with line-of-sight to the gNodeB) may not be the optimal location for Wi-Fi coverage (typically central to the living or working space). Single-box designs also face thermal density challenges, with combined modem + Wi-Fi 7 power consumption reaching 35-45W in premium implementations, requiring active cooling in some form factors.

    Model 2: Split Architecture (Outdoor CPE + Indoor Wi-Fi 7 Unit)

    The split architecture places the 5G modem and high-gain directional antenna in an outdoor unit (ODU), typically IP67-rated and pole or wall-mounted, connected to an indoor Wi-Fi 7 unit via Power over Ethernet (PoE) or fiber. This architecture is increasingly specified for MDU and enterprise FWA deployments where outdoor antenna placement significantly improves 5G signal quality.

    Advantages: The ODU can be placed at the optimal 5G reception point (rooftop, balcony, exterior wall) while the Wi-Fi 7 indoor unit can be centrally located for optimal coverage. Outdoor antenna placement typically improves RSRP by 8-15 dB and SINR by 5-10 dB compared to indoor antenna placement — a difference that can translate to 2-4x throughput improvement in cell-edge scenarios. Thermal design is simplified as the 5G modem and Wi-Fi 7 subsystem have separate thermal budgets.

    Disadvantages: Higher total solution cost (two enclosures, two power subsystems, interconnect cable), more complex installation requiring external cable routing, and additional points of potential failure. The interconnect between ODU and indoor unit becomes a new specification requirement: operators must ensure adequate bandwidth (typically 2.5G or 5G Ethernet, or 10G SFP+ for future-proofing) and power delivery.

    Model 3: Distributed Mesh Architecture

    For larger MDU and enterprise deployments, a distributed mesh architecture uses a primary 5G FWA gateway (which may be outdoor-mounted) feeding multiple Wi-Fi 7 mesh nodes throughout the premises via wired or wireless backhaul. This architecture is gaining traction for garden-style MDU complexes, multi-floor enterprise offices, and hospitality deployments where a single Wi-Fi 7 access point cannot provide adequate coverage.

    Advantages: Scalable coverage — additional mesh nodes can be added to eliminate dead zones without replacing the primary gateway. Wi-Fi 7’s MLO capability significantly improves mesh backhaul performance compared to Wi-Fi 6E mesh systems, with STR-MLO enabling simultaneous 5 GHz front-haul and 6 GHz backhaul operation without time-sharing penalties.

    Disadvantages: Highest total solution cost and complexity. Wireless mesh backhaul introduces additional latency (typically 2-5 ms per hop) and throughput degradation (15-30% per hop in real-world conditions). Co-channel interference between mesh nodes requires careful channel planning and automatic frequency coordination.

    Key Engineering Considerations for Converged Deployments

    Thermal Design in High-Density Enclosures

    The thermal challenge of converged 5G + Wi-Fi 7 CPE is substantial. A typical premium implementation with a Qualcomm X75 5G modem (approximately 5-7W under sustained load), a Qualcomm Networking Pro 1620 Wi-Fi 7 platform (approximately 12-15W), and associated RF front-ends, Ethernet PHYs, and power management can generate 25-35W of continuous heat dissipation in a compact enclosure. Without adequate thermal design, sustained throughput under load can degrade by 20-40% as the SoC throttles to manage junction temperature.

    Best practices for thermal management in converged CPE include: die-cast aluminum enclosures with integrated heatsink fins rather than plastic enclosures with internal heatsinks; vertical orientation for natural convection; separation of 5G modem and Wi-Fi 7 thermal zones with thermal barriers to prevent heat migration; and, for premium outdoor/indoor split architectures, separate thermal budgets for ODU and indoor unit.

    WAN-to-LAN Data Path Optimization

    The internal data path between the 5G modem and the Wi-Fi 7 subsystem must be engineered to avoid introducing a new bottleneck. Key considerations:

    • PCIe lane allocation: PCIe Gen3 x2 (approximately 1.9 GB/s effective) is sufficient for current 5G-Advanced peak rates. For future-proofing against 10+ Gbps 5G WAN speeds, specify PCIe Gen4 x2 or Gen3 x4 interfaces.
    • Hardware flow control and QoS mapping: The CPE should map 5G QoS flows (5QI values) to Wi-Fi 7 QoS mechanisms (802.11be TID-to-link mapping) to ensure end-to-end quality of service. Voice and video flows from the 5G network should maintain priority through the Wi-Fi distribution layer.
    • Buffer management: Adequate packet buffer memory (typically 512 MB to 1 GB DDR4 for premium CPE) prevents bufferbloat and maintains low latency under concurrent high-throughput and latency-sensitive traffic scenarios.

    Antenna Coexistence: 5G and Wi-Fi 7 in the Same Enclosure

    In integrated single-box CPE, the proximity of 5G antennas (operating at 600 MHz to 6 GHz for sub-7 GHz 5G bands, or 24-47 GHz for mmWave) and Wi-Fi 7 antennas (operating at 2.4 GHz, 5 GHz, and 6 GHz) creates significant coexistence challenges. Without adequate isolation, 5G transmission can desensitize Wi-Fi receivers, and vice versa, leading to throughput degradation on both links.

    Key coexistence strategies include: physical antenna separation of at least 50-70 mm between 5G and Wi-Fi antenna elements; polarization diversity (using orthogonal polarizations for 5G and Wi-Fi antennas); frequency-domain filtering with high-Q bandpass filters on both 5G and Wi-Fi RF paths; and time-domain coexistence coordination through the SoC’s shared coexistence manager — a feature increasingly integrated into platforms from both Qualcomm and MediaTek.

    Deployment Scenarios and Architecture Recommendations

    Single-Family Residential FWA: Integrated single-box CPE with STR-MLO Wi-Fi 7 is the optimal architecture. The subscriber expects a simple, self-installable device. Window or wall placement near the optimal 5G reception point is typically acceptable for indoor Wi-Fi coverage in apartments and small homes. Operators should include a companion smartphone app for optimal placement guidance using real-time RSRP and SINR readings.

    MDU (Apartment Buildings): Split architecture with rooftop or balcony-mounted ODU and central indoor Wi-Fi 7 unit is recommended. For buildings with 4-8 units, a single ODU serving a Wi-Fi 7 mesh system distributed across common areas or individual units via Ethernet backhaul provides the best cost-performance ratio. The ODU should support carrier aggregation across all available 5G bands to maximize backhaul capacity for multi-tenant scenarios.

    Enterprise/SME Deployment: Distributed mesh architecture with outdoor 5G modem as primary WAN, optionally combined with wireline failover (fiber or DOCSIS) in a multi-WAN configuration. Wi-Fi 7 mesh nodes with wired Ethernet backhaul where structured cabling exists, wireless mesh backhaul for legacy buildings. The CPE platform must support enterprise-grade features including VLAN segmentation, RADIUS authentication, and centralized management via TR-369 USP.

    The Path Forward: Wi-Fi 7 as the Universal Indoor Distribution Layer

    As 5G-Advanced FWA deployments scale through 2026-2027 and the first 6G FWA trials begin in 2028-2029, Wi-Fi 7 is positioned to become the universal indoor distribution layer for all fixed broadband access technologies — FWA, fiber, cable, and satellite. The architectural decisions operators make today in specifying converged 5G FWA + Wi-Fi 7 CPE platforms will define subscriber quality of experience for the next 5-7 years.

    For procurement teams, the key strategic principle is straightforward: the indoor Wi-Fi layer should never be the bottleneck. With Wi-Fi 7 silicon now price-competitive and carrier-certified platforms available from established ODMs, there is no technical or economic justification for deploying 5G-Advanced FWA services behind anything less than a Wi-Fi 7 indoor distribution layer.


    Frequently Asked Questions

    What is the optimal CPE architecture for 5G FWA + Wi-Fi 7 convergence?

    The optimal architecture depends on the deployment scenario. Single-family residential FWA is best served by integrated single-box CPE. MDU and enterprise deployments benefit from split architecture (outdoor 5G modem + indoor Wi-Fi 7 unit) which optimizes both 5G reception and Wi-Fi coverage. Large enterprise deployments may require distributed mesh with multiple Wi-Fi 7 nodes.

    Does Wi-Fi 7 eliminate the indoor bottleneck for 5G FWA?

    Yes, for all current and near-term 5G-Advanced FWA deployments. A triband Wi-Fi 7 CPE with STR-MLO can deliver 4.5-5.2 Gbps to a single client, matching or exceeding the peak downlink capacity of current 5G-Advanced networks. Wi-Fi 7’s theoretical maximum of 46 Gbps provides headroom for future 5G and 6G FWA evolution.

    What are the thermal challenges of integrated 5G + Wi-Fi 7 CPE?

    Premium integrated CPE can generate 25-35W of continuous heat, requiring careful thermal design including die-cast aluminum enclosures, integrated heatsink fins, thermal zone separation, and in some cases active cooling. Without adequate thermal management, sustained throughput can degrade 20-40% under load.

    How does outdoor 5G antenna placement improve FWA + Wi-Fi 7 performance?

    Outdoor antenna placement typically improves 5G RSRP by 8-15 dB and SINR by 5-10 dB compared to indoor placement. Combined with centralized Wi-Fi 7 indoor unit placement, split architecture can deliver 2-4x total end-to-end throughput improvement in cell-edge FWA scenarios compared to integrated single-box CPE.


    Deploying 5G FWA with Wi-Fi 7 for your subscriber base? Honlly Telecom offers integrated and split-architecture 5G FWA + Wi-Fi 7 CPE solutions with STR-MLO, outdoor ODU options, and full TR-369 USP device management. Contact our engineering team to discuss your convergence architecture requirements and schedule a technical consultation.

  • A Telecom Operator’s Guide to Wi-Fi 7 CPE Specifications: Evaluating Multi-Link Operation, 320 MHz Channels, and 4K-QAM for Next-Generation Gateways

    A Telecom Operator’s Guide to Wi-Fi 7 CPE Specifications: Evaluating Multi-Link Operation, 320 MHz Channels, and 4K-QAM for Next-Generation Gateways

    As telecom operators and ISPs plan their next-generation CPE procurement cycles, Wi-Fi 7 (IEEE 802.11be) has moved from an emerging technology to a deployment-ready standard. With silicon shipments tripling in H1 2026 and Tier-1 operators across Europe and North America actively deploying Wi-Fi 7 gateways, the procurement question has shifted from “if” to “how.” This guide provides a structured framework for evaluating Wi-Fi 7 CPE specifications, helping procurement teams and network engineering departments make informed vendor selection decisions.

    1. Multi-Link Operation (MLO): The Architecture Decision That Defines Performance

    Multi-Link Operation is the signature feature of Wi-Fi 7 and the single most important specification to evaluate when comparing CPE platforms. However, not all MLO implementations are equal. Operators must understand the architectural trade-offs between different MLO modes.

    MLO Modes: STR vs. NSTR vs. EMLSR

    Simultaneous Transmit and Receive (STR-MLO) represents the highest-performance MLO implementation, where the CPE can simultaneously transmit and receive on multiple frequency bands without any scheduling constraints. STR-MLO requires independent RF chains per band and is typically found in premium triband (2.4 GHz + 5 GHz + 6 GHz) CPE platforms based on Qualcomm Networking Pro 1620 or Broadcom BCM6765 silicon. STR-MLO delivers the full throughput aggregation and latency reduction benefits of Wi-Fi 7, with typical operator lab results showing 4.8-5.2 Gbps aggregate throughput under realistic multi-client conditions.

    Non-Simultaneous Transmit and Receive (NSTR-MLO) is a lower-cost implementation where the CPE can receive on multiple links simultaneously but can only transmit on one link at a time. NSTR-MLO is common in dual-band (5 GHz + 6 GHz) CPE designs using MediaTek Filogic 380 or entry-level Qualcomm platforms. While NSTR-MLO still provides latency benefits through redundant link availability, aggregate throughput gains are limited to approximately 15-25% over equivalent single-link operation.

    Enhanced Multi-Link Single Radio (EMLSR) is a transitional implementation where a single radio dynamically switches between bands. EMLSR provides the reliability benefits of multi-link operation without the cost of multiple RF chains, but throughput is limited to single-link performance. This mode is primarily found in cost-optimized CPE targeting emerging markets.

    Procurement Recommendation: For carrier-grade FWA and fiber gateways serving premium subscriber tiers, specify STR-MLO capability as a mandatory requirement. For mid-tier and entry-level CPE, NSTR-MLO represents a reasonable cost-performance balance. EMLSR-only implementations should be limited to ultra-low-cost segments where Wi-Fi 6E represents the primary competitive alternative.

    2. Channel Bandwidth: 320 MHz Support and Spectrum Strategy

    Wi-Fi 7 doubles the maximum channel bandwidth from 160 MHz (Wi-Fi 6E) to 320 MHz, theoretically doubling peak throughput. However, the practical availability of 320 MHz channels varies significantly by regulatory domain and deployment scenario.

    In the 6 GHz band, 320 MHz channel operation requires access to the full 5925-7125 MHz range. In the United States, the FCC has made the entire 1200 MHz of 6 GHz spectrum available for unlicensed use, enabling three non-overlapping 320 MHz channels. In Europe, where only the lower 500 MHz (5925-6425 MHz) is currently available for unlicensed Wi-Fi under the European Commission’s harmonized framework, operators are limited to a single 320 MHz channel. The UK’s Ofcom and Germany’s BNetzA have both indicated potential expansion to the upper 6 GHz band (6425-7125 MHz) in 2027, but this remains uncertain for near-term CPE procurement decisions.

    Key Specification Questions for Vendors:

    • Does the CPE support 320 MHz channel operation in the target regulatory domain?
    • If 320 MHz operation is not available (e.g., European deployments limited to 5925-6425 MHz), can the CPE operate in 160+80 MHz or 240 MHz modes?
    • What is the AFC (Automated Frequency Coordination) implementation for 6 GHz standard-power operation, and has it been certified by the relevant regulatory body?

    3. 4K-QAM Modulation: Real-World Gains and SNR Requirements

    Wi-Fi 7 introduces 4096-QAM (4K-QAM) modulation, up from 1024-QAM in Wi-Fi 6/6E. This represents a 20% increase in theoretical data rate per spatial stream. However, 4K-QAM requires significantly higher signal-to-noise ratio (SNR) — approximately 35-36 dB compared to 30-31 dB for 1024-QAM — which limits its practical range to approximately 5-8 meters in typical indoor environments with consumer-grade antennas.

    For carrier CPE deployment, the pragmatic benefit of 4K-QAM is most pronounced in “same-room” scenarios where the CPE and client device are in close proximity — for example, an FWA CPE placed near a home office desk serving a single primary laptop. In multi-room deployments where the CPE serves clients through walls and floors, the SNR typically drops below the 4K-QAM threshold, and the modulation rate falls back to 1024-QAM or 256-QAM.

    Procurement Consideration: While 4K-QAM support is a checkbox requirement for most operator RFPs, procurement teams should not weight it heavily in vendor evaluation. The real-world throughput improvement from 4K-QAM in typical residential and SMB deployment scenarios is 5-10% at most. MLO implementation quality, antenna design, and RF front-end performance have far greater impact on end-user experience.

    4. Spatial Streams and Antenna Architecture

    Wi-Fi 7 CPE antenna configurations typically fall into three tiers that directly correlate with target subscriber segments:

    Triband 10-Stream (4×4 + 4×4 + 2×2): The premium configuration specified by European Tier-1 operators for high-end FWA gateways. Typically configured as 4×4 MIMO on 6 GHz, 4×4 MIMO on 5 GHz, and 2×2 MIMO on 2.4 GHz. This configuration maximizes MLO throughput and multi-client capacity but requires significant PCB real estate, antenna isolation engineering, and power budget (typically 25-30W for the Wi-Fi subsystem alone).

    Dual-Band 6-Stream (4×4 + 2×2 or 2×2 + 2×2 + 2×2): The mainstream configuration for mid-tier operator gateways. Provides good MLO performance at accessible price points, with platform cost approximately 40-50% below triband 10-stream designs.

    Dual-Band 4-Stream (2×2 + 2×2): Entry-level Wi-Fi 7 configuration suitable for cost-sensitive markets and SOHO deployments. While technically Wi-Fi 7 compliant, the limited spatial stream count constrains both MLO throughput and multi-user MIMO (MU-MIMO) capacity.

    5. Backhaul Interface and WAN Integration

    For FWA CPE, the integration between the 5G modem and the Wi-Fi 7 subsystem is architecturally critical. Key considerations include:

    Internal Interface Bandwidth: PCIe Gen3 x2 (8 GT/s, approximately 1.9 GB/s effective throughput) is sufficient for most 5G-Advanced FWA deployments with peak downlink speeds up to 5-7 Gbps. For future-proofing against 5G-Advanced Release 18 enhancements that may deliver 10+ Gbps, PCIe Gen4 x2 or USB 3.2 Gen2x2 interfaces should be specified.

    Integrated vs. Discrete Architecture: Integrated platforms combining the 5G modem and Wi-Fi 7 on a single SoC (e.g., Qualcomm’s upcoming “FWA Fusion” platform) can reduce BOM cost by 15-20% and simplify thermal design compared to discrete modem + Wi-Fi designs. However, discrete architectures offer greater flexibility for operators with multi-modem or multi-WAN requirements.

    6. Testing and Certification: Beyond the Datasheet

    Datasheet specifications tell only part of the story. For operator procurement, real-world testing under representative deployment conditions is essential. Key test scenarios should include:

    • Multi-client throughput under load: Test with 16-32 simultaneous clients representing a typical household or SMB deployment, measuring both aggregate throughput and per-client fairness.
    • MLO stability over time: Run sustained 24-hour throughput tests to verify MLO link stability — early Wi-Fi 7 implementations exhibited MLO link drops under thermal load that required firmware updates.
    • Interference coexistence: Test in environments with neighboring Wi-Fi 6/6E networks to verify that Wi-Fi 7 preamble puncturing and coordinated OFDMA scheduling work effectively.
    • 6 GHz AFC compliance: For standard-power 6 GHz operation, verify AFC geolocation database integration and automatic power reduction in protected-frequency scenarios.

    Procurement Checklist Summary

    When evaluating Wi-Fi 7 CPE for carrier deployment, operators should prioritize the following specifications in order of impact on subscriber experience:

    1. MLO implementation quality — STR-MLO for premium tiers, NSTR-MLO minimum for mid-tier
    2. Antenna and spatial stream configuration — Match to target deployment density and range requirements
    3. WAN backhaul interface bandwidth — Ensure no bottleneck between 5G modem and Wi-Fi subsystem
    4. 6 GHz regulatory compliance — Verify AFC and channel availability in target markets
    5. Thermal design robustness — Sustained throughput under thermal load, not just peak benchmarks

    By focusing on these architectural specifications rather than marketing-driven peak throughput numbers, operator procurement teams can select Wi-Fi 7 CPE platforms that deliver measurable improvements in subscriber quality of experience across real-world deployment conditions.


    Frequently Asked Questions

    What is the most important Wi-Fi 7 specification for carrier CPE?

    Multi-Link Operation (MLO) implementation quality is the single most impactful specification. STR-MLO with independent RF chains per band delivers 2-3x throughput improvement over Wi-Fi 6E under real-world multi-client conditions. Operators should prioritize MLO architecture over peak throughput numbers.

    How much more does Wi-Fi 7 CPE cost compared to Wi-Fi 6E?

    As of H1 2026, Wi-Fi 7 CPE platforms carry approximately 15-20% BOM cost premium over equivalent Wi-Fi 6E designs at volume. This gap is expected to narrow to 5-10% by 2027 as silicon volumes scale and reference designs mature. For new service launches, the performance improvement justifies the marginal cost increase.

    Do operators need 6 GHz spectrum access to deploy Wi-Fi 7 CPE?

    Wi-Fi 7 can operate on 2.4 GHz and 5 GHz bands without 6 GHz access, but the most impactful features — 320 MHz channels and STR-MLO across wide channel pairs — require 6 GHz spectrum. Operators in markets without 6 GHz availability should evaluate whether Wi-Fi 7’s 5 GHz-only benefits (4K-QAM, improved OFDMA) justify the upgrade from Wi-Fi 6E.

    What is AFC and why does it matter for Wi-Fi 7 CPE?

    Automated Frequency Coordination (AFC) is a spectrum management system required for standard-power (36 dBm EIRP) Wi-Fi 7 operation in the 6 GHz band. AFC queries a geo-location database to ensure Wi-Fi devices do not interfere with incumbent fixed microwave links. CPE must integrate AFC client functionality and obtain regulatory certification for each target market.


    Procuring Wi-Fi 7 CPE for your operator network? Honlly Telecom provides carrier-grade Wi-Fi 7 gateways with STR-MLO, triband 10-stream antenna architecture, and full AFC certification for European and North American markets. Contact our solutions team to discuss your Wi-Fi 7 CPE requirements and request engineering samples.

  • The Enterprise 4G MiFi Buyer’s Guide: Selecting Portable Broadband Solutions for Field Operations and Business Continuity

    The Enterprise 4G MiFi Buyer’s Guide: Selecting Portable Broadband Solutions for Field Operations and Business Continuity

    While 5G dominates industry headlines, 4G LTE MiFi devices remain the workhorse of enterprise mobile connectivity in 2026—and for good reason. With mature global coverage, predictable performance characteristics, aggressive price points, and a supply chain that has addressed component shortages, 4G MiFi solutions deliver reliable portable broadband that meets the needs of field service teams, emergency responders, temporary offices, and business continuity scenarios across virtually every market worldwide.

    This guide provides a structured evaluation framework for enterprise buyers—ISPs, system integrators, fleet managers, and IT procurement professionals—who need to select 4G MiFi devices at scale. Whether deploying 500 units for a utility company’s field technicians or sourcing portable hotspots for a nationwide retail chain’s backup connectivity, the criteria below will help make informed procurement decisions.

    1. Define the Deployment Profile First

    Before evaluating specific models, document operational requirements across five dimensions: (a) user count per device—typical MiFi devices support 10–32 concurrent connections, and undersizing creates helpdesk tickets; (b) daily data consumption per user—streaming, video conferencing, and large file transfers quickly exhaust consumer-grade data plans; (c) mobility pattern—stationary, pedestrian, or in-vehicle; (d) geographic coverage—urban, suburban, or rural, and across which carriers; and (e) environmental conditions—indoor office, outdoor field, or industrial.

    These five dimensions determine the essential hardware specifications: battery capacity, antenna configuration, ruggedization rating, and carrier aggregation capabilities. A field survey team mapping rural infrastructure has fundamentally different requirements than a pop-up retail kiosk in a shopping mall.

    2. Carrier Aggregation: The Single Most Important Radio Specification

    In the 4G world, carrier aggregation (CA) capability is the primary determinant of real-world throughput. Entry-level MiFi devices with no CA support (Cat 4, up to 150 Mbps theoretical) deliver 15–40 Mbps in real-world conditions—adequate for email and basic browsing but insufficient for video conferencing or cloud application access. Cat 6 devices (2× CA, up to 300 Mbps) represent the performance floor for enterprise deployment, delivering 30–80 Mbps in typical urban environments.

    For power users and primary connectivity scenarios, Cat 12 (3× CA, up to 600 Mbps) or Cat 16 (4× CA, up to 1 Gbps) devices provide the headroom needed for concurrent users, VPN tunnels, and real-time collaboration tools. The cost increment from Cat 6 to Cat 12 is typically 25–40% per unit—a premium that pays for itself in reduced user frustration within the first quarter of deployment.

    3. Battery and Power Architecture

    Battery specifications on datasheets are measured under idealized lab conditions. In the field, real-world battery life runs 50–70% of published figures. When evaluating devices, prioritize removable batteries for fleet deployments—the ability to hot-swap a depleted battery eliminates device downtime and simplifies lifecycle management. A 3000 mAh battery provides approximately 6–8 hours of active use in real-world conditions; for full-shift coverage (10–12 hours), look for 4000–5000 mAh or plan for swappable battery logistics.

    Also evaluate charging options beyond USB-C. Devices that support charging cradles with Ethernet pass-through enable fixed-location use cases (temporary office, event connectivity) where the MiFi doubles as a stationary CPE. Quick Charge 3.0 or USB-PD support reduces downtime between battery swaps.

    4. Management and Security: Non-Negotiable Enterprise Requirements

    Consumer-grade MiFi devices lack the management tooling that enterprise fleets require. At minimum, your selected device must support: (a) remote device management via TR-069 or TR-369 USP for configuration, firmware updates, and diagnostics; (b) VPN passthrough and ideally an onboard VPN client (IPsec/L2TP/WireGuard) for securing traffic at the device level; (c) customizable APN and PDP context settings for private APN and M2M SIM deployments; (d) FOTA (Firmware Over-The-Air) with scheduled update windows and rollback capability; and (e) RADIUS/Diameter AAA integration for operator-managed deployments.

    Security certifications matter. Look for devices with Wi-Fi Alliance WPA3 certification, FCC/CE compliance for target markets, and ideally PTCRB or GCF certification for carrier interoperability. For government and defense-sector deployments, FIPS 140-2 validated encryption modules may be required.

    5. Total Cost of Ownership: Beyond the Unit Price

    The per-unit hardware cost is only the starting point. A proper TCO model includes: device management platform licensing (typically $1–4 per device per year for cloud ACS); battery replacement cycles (plan for one replacement per device over a 3-year lifecycle); SIM and data plan costs (negotiate pooled data across devices rather than per-device plans); support and RMA overhead (enterprise-grade devices typically have 2–5% annual failure rates vs. 8–15% for consumer devices); and training and deployment logistics.

    When the full TCO is modeled over 36 months, the $30–50 premium for an enterprise-grade MiFi over a consumer hotspot is typically recovered within the first 6 months through reduced support tickets and lower failure rates alone. OEM/ODM partners who offer customized firmware, private labeling, and direct warranty support can further compress TCO for large-scale deployments.

    Frequently Asked Questions

    Q: What minimum 4G category (Cat) should an enterprise MiFi support?

    Cat 6 (2× carrier aggregation, up to 300 Mbps) is the minimum recommended for enterprise deployment. Cat 4 devices without CA are adequate only for light email and messaging. For teams using video conferencing, VPN, and cloud applications, Cat 12 (3× CA, up to 600 Mbps) is strongly recommended. The $30-50 premium over Cat 6 is recovered quickly through improved user productivity.

    Q: How many devices can connect to a 4G MiFi simultaneously?

    Enterprise-grade 4G MiFi devices typically support 16-32 concurrent Wi-Fi connections. However, the practical limit depends on usage patterns: 10-15 light users (email, messaging) or 5-8 heavy users (video conferencing, large file transfers). For larger groups, consider deploying multiple MiFi units or a fixed 4G CPE with higher Wi-Fi capacity.

    Q: Should I choose removable or sealed batteries for fleet deployment?

    Removable batteries are strongly recommended for fleet deployments. Hot-swappable batteries eliminate device downtime, simplify lifecycle replacement (batteries degrade after 300-500 charge cycles), and allow carrying spare batteries instead of spare devices. A charging cradle ecosystem with spare batteries reduces per-user logistics costs by approximately 30% over a 3-year lifecycle.

    Q: What management protocols should enterprise MiFi devices support?

    At minimum, enterprise MiFi devices should support TR-069 for remote management. For new deployments in 2026, TR-369 USP support is strongly recommended for future-proofing. The management platform should enable centralized configuration, scheduled firmware updates, real-time performance monitoring, and bulk operations across the device fleet.

  • Carrier Aggregation in 5G CPE Explained: How Multi-Component Carrier Bonding Delivers Multi-Gigabit Throughput for Fixed Wireless Access Networks

    Carrier Aggregation in 5G CPE Explained: How Multi-Component Carrier Bonding Delivers Multi-Gigabit Throughput for Fixed Wireless Access Networks

    Carrier aggregation (CA) is not a new concept—LTE-Advanced introduced it to 4G networks over a decade ago. But in the 5G era, carrier aggregation has evolved into a fundamentally more powerful and complex technology that directly determines whether a fixed wireless access (FWA) CPE delivers 300 Mbps or 3 Gbps. For telecom operators and ISPs deploying 5G FWA at scale, understanding the mechanics and procurement implications of 5G CA is essential to making infrastructure investments that match service-level commitments.

    The Mechanics: How 5G Carrier Aggregation Works

    At its core, carrier aggregation combines multiple frequency carriers—each an independent radio channel—into a single, wider logical data pipe. In 5G NR (New Radio), the aggregated bandwidth can span low-band (sub-1 GHz, e.g., n5, n28), mid-band (1–6 GHz, e.g., n77, n78, n79), and high-band/mmWave (24–47 GHz, e.g., n257, n258, n260, n261) spectrum simultaneously. A 5G CPE with robust CA capabilities can bond a 100 MHz n78 channel, a 40 MHz n5 channel, and a 400 MHz n260 mmWave carrier into a single 540 MHz effective bandwidth.

    This cross-band aggregation is what makes 5G FWA commercially viable at scale. The mid-band carrier provides the capacity layer for sustained high throughput, the low-band carrier provides the coverage layer for uplink reliability and indoor penetration, and the mmWave carrier—where available—provides the extreme-capacity layer for peak throughput. The CPE’s modem and antenna system must handle all three simultaneously, which is why CA configuration directly impacts bill of materials cost and thermal design complexity.

    CA Combinations: What Operators Should Specify in RFPs

    Not all CA combinations are created equal, and the combinations a CPE supports must match the operator’s spectrum holdings. The 3GPP specifications define hundreds of permitted CA combinations across FR1 (sub-7 GHz) and FR2 (mmWave), but practical CPE implementations support a meaningful subset. For operator procurement in 2026, the following CA configurations represent the minimum viable specification for carrier-grade FWA CPE:

    Essential FR1 CA combinations for mid-band FWA: n77+n77 (intra-band contiguous and non-contiguous) for markets with 80–100 MHz of C-band spectrum; n78+n78 for markets using the 3.3–3.8 GHz range; and n77+n5 or n78+n28 for mid-band plus low-band aggregation. These combinations ensure the CPE can aggregate the operator’s primary capacity band with supplementary low-band for uplink and coverage.

    FR1+FR2 (mmWave) CA: n77+n260 and n78+n257 combinations are critical for operators with mmWave holdings who want to deliver multi-gigabit peak speeds in dense urban and suburban deployments. The CPE modem must support EN-DC (E-UTRAN New Radio Dual Connectivity) for 4G anchor plus 5G data paths, as well as NR-CA within 5G standalone mode for future-proof SA architectures.

    Modem Selection: Qualcomm, MediaTek, and the CA Landscape

    The CPE’s modem chipset is the primary determinant of CA capability. In the current generation (2025–2026), the Qualcomm Snapdragon X75 and X80 modem-RF systems support up to 10 carrier aggregation across sub-7 GHz and mmWave, with 5× CA on sub-7 GHz alone. MediaTek’s T800 and forthcoming T830 platforms offer comparable CA density with slightly different band combination priorities—particularly strong in Asian and European band configurations where MediaTek’s market share is highest.

    For operators, the modem selection decision has cascading implications. Qualcomm-based CPE generally offers broader carrier certification coverage in North America and Europe. MediaTek-based CPE often delivers better price-performance ratios for price-sensitive markets in Southeast Asia, Africa, and Latin America. The key procurement question is not “which modem is better” but “which modem supports the CA combinations that match our deployed spectrum and target throughput.”

    Antenna Design: The Silent CA Enabler

    Carrier aggregation multiplies the antenna design challenge. Each aggregated band requires independent antenna paths with adequate isolation to prevent inter-band interference. A CPE supporting 3× CA across n77+n77+n5 needs at minimum 4×4 MIMO on n77 (four antenna elements) plus 2×2 MIMO on n5 (two elements)—a total of six independent antenna paths that must coexist within a compact enclosure while maintaining 15–20 dB of isolation between bands.

    This antenna density requirement is a key reason why outdoor CPE units consistently outperform indoor units in CA scenarios. The larger physical enclosure allows better antenna separation, while outdoor placement eliminates building penetration loss that disproportionately affects higher-frequency bands. When evaluating CPE for CA-heavy deployments, operators should strongly consider outdoor or window-mounted form factors for the primary FWA device.

    Procurement Checklist: CA Evaluation Criteria

    When evaluating 5G CPE for carrier aggregation capability, operators should require vendors to provide: (1) a complete list of supported CA combinations as tested and certified, not just modem chipset theoretical capabilities; (2) throughput test results under controlled conditions for each supported CA configuration, including performance at cell edge (-115 to -120 dBm RSRP); (3) thermal performance data under sustained CA load—devices that throttle after 15–20 minutes of full CA throughput are not suitable for FWA use cases; and (4) carrier certification status for the operator’s specific network, including IOT (Interoperability Testing) completion reports.

    Carrier aggregation capability is not a binary yes/no specification—it is a multi-dimensional performance characteristic that directly determines the end-user experience, network efficiency, and service tier differentiation. Operators who invest the time to specify CA requirements precisely in their CPE RFPs will deploy FWA networks that deliver on their throughput promises, while those who treat CA as an afterthought will field a steady stream of “why is my internet slow” support tickets.

    Frequently Asked Questions

    Q: What is carrier aggregation in 5G and why does it matter for FWA CPE?

    Carrier aggregation (CA) combines multiple 5G frequency carriers into a single wider data pipe, dramatically increasing throughput. For FWA CPE, CA enables bonding low-band (coverage), mid-band (capacity), and mmWave (peak speed) simultaneously. A CPE with robust CA might deliver 1.5-3 Gbps where a non-CA device on the same network achieves 300-500 Mbps.

    Q: How many CA combinations should a carrier-grade 5G CPE support?

    A carrier-grade 5G FWA CPE should support at minimum: intra-band contiguous and non-contiguous CA on mid-band (n77+n77, n78+n78); mid-band plus low-band CA (n77+n5, n78+n28); and ideally FR1+FR2 CA (n77+n260, n78+n257) for operators with mmWave spectrum. The exact combinations must match the operator’s deployed spectrum holdings.

    Q: Does carrier aggregation affect CPE thermal design?

    Yes, significantly. Each additional aggregated carrier increases modem power consumption by 15-25%. A CPE running 3× CA with 4×4 MIMO can consume 8-12W, requiring active cooling solutions. Operators should require vendors to provide sustained throughput data (not just peak) and thermal throttling thresholds. Passive cooling is usually only adequate for 2× CA configurations.

    Q: Qualcomm vs MediaTek modems: which is better for carrier aggregation?

    Both offer comparable CA density in their 2025-2026 generation platforms. Qualcomm X75/X80 provides broader carrier certification in North America and Europe. MediaTek T800/T830 offers competitive CA at lower cost, particularly strong in Asian and European bands. The decision should be based on which modem supports the specific CA combinations that match your spectrum, not brand preference.

  • Thermal Design for Outdoor 5G CPE: Engineering IP67-Rated Enclosures for Extreme Environments

    Thermal Design for Outdoor 5G CPE: Engineering IP67-Rated Enclosures for Extreme Environments

    Outdoor 5G CPE units face a thermal paradox: the 5G modem and RF front-end generate significant heat during high-throughput operation, yet the IP67-rated enclosure that protects these components from rain, dust, and humidity also traps that heat inside. Solving this thermal management challenge is one of the hardest problems in outdoor CPE engineering — and one that directly determines field reliability and service life.

    Why Outdoor CPE Thermal Design Matters

    A 5G CPE operating in sub-6 GHz or mmWave bands can dissipate 8\u201315 W during sustained data transfer. In an enclosed plastic or aluminum housing under direct sunlight — where ambient temperatures can reach 55\u00b0C in Middle Eastern or South Asian deployments — internal junction temperatures can exceed 100\u00b0C if cooling is inadequate. At these temperatures, modem performance throttles, RF output power drops, and component lifespan degrades rapidly.

    For operators deploying thousands of outdoor CPE units across diverse climate zones, thermal failure is not a theoretical risk — it is a predictable source of support tickets, truck rolls, and customer churn. Engineering the thermal solution correctly at the design stage pays for itself many times over in reduced field failure rates.

    IP67 Requirements and the Sealed Enclosure Challenge

    IP67 certification requires the enclosure to withstand immersion in 1 meter of water for 30 minutes — meaning the housing must be completely sealed against liquid ingress. This eliminates the simplest cooling method: ventilation. With no airflow through the enclosure, all heat generated by the modem, RF power amplifiers, and power supply must be conducted through the enclosure walls to the external environment.

    The engineering challenge breaks into three parts:

    • Internal heat spreading: Moving heat from concentrated hot spots (SoC, PA) to the enclosure surface area.
    • Enclosure-to-air transfer: Maximizing the rate at which the enclosure surface dissipates heat to ambient air.
    • Solar load management: Minimizing solar radiation absorption that adds heat to the system.

    Passive Cooling Strategies That Work

    Thermal Interface Materials and Heat Spreading

    The most critical thermal path in an outdoor CPE is from the modem/SoC die to the enclosure wall. High-performance thermal gap pads or phase-change materials bridge the air gap between the chip package and an aluminum heat spreader plate. The spreader plate — typically 2\u20134 mm thick aluminum — distributes heat across a much larger area than the chip package alone, reducing thermal resistance by an order of magnitude.

    In well-designed units, the heat spreader is mechanically bonded to the rear enclosure wall using thermal adhesive or screw-mounted with thermal grease. This creates a direct conduction path from silicon to the outside world, bypassing the insulating air gap inside the enclosure.

    Enclosure Material Selection

    Aluminum alloy enclosures (typically ADC12 or AL6061) offer approximately 100\u2013200x the thermal conductivity of plastic (PC/ABS). For outdoor CPE targeting ambient temperatures above 45\u00b0C, an aluminum housing is often the difference between sustained gigabit throughput and thermal throttling within 30 minutes.

    Where plastic enclosures are preferred for cost or RF transparency reasons, manufacturers may embed aluminum inserts or use thermally conductive plastics with filler materials (graphite, ceramic, or boron nitride). These materials achieve 5\u201310 W/m\u00b7K — better than standard plastics (0.2 W/m\u00b7K) but still far below aluminum (150\u2013200 W/m\u00b7K).

    External Fin Design

    Adding fins to the exterior enclosure surface increases the surface area available for convective and radiative heat transfer. A finned aluminum enclosure can improve heat dissipation by 40\u201360% compared to a smooth surface of the same footprint, without compromising the IP67 seal — since the fins are part of the solid enclosure casting, not openings.

    Fin orientation matters in outdoor installations: vertical fins promote natural convection (hot air rises along the fin channels), while horizontal fins trap heat. The best outdoor CPE designs orient fins vertically regardless of mounting position.

    Solar Radiation: The Overlooked Heat Load

    An outdoor CPE installed on a rooftop or exterior wall in direct sunlight can absorb 600\u20131000 W/m\u00b2 of solar radiation. A unit with a 0.05 m\u00b2 surface area facing the sun adds 30\u201350 W of external heat load — several times the internal heat generation from the electronics.

    Mitigation strategies include:

    • High-reflectivity surface coating: White or light-colored enclosures with a solar reflectance index (SRI) above 80 reflect most solar energy. A white aluminum enclosure can operate 10\u201315\u00b0C cooler than a dark grey equivalent.
    • Sun shield design: A secondary shield mounted with an air gap above the main enclosure blocks direct radiation while allowing airflow in the gap.
    • Installation guidelines: Specifying north-facing mounting (in the northern hemisphere) or shaded locations in deployment documentation reduces solar exposure without hardware changes.

    Testing and Validation for Extreme Environments

    Responsible CPE vendors validate thermal performance through environmental stress testing:

    • Thermal chamber testing: Operating the CPE at 55\u00b0C ambient with maximum throughput load for 24+ hours, monitoring modem temperature and throughput stability.
    • Solar simulation: Exposing the CPE to calibrated solar spectrum lamps at 1000 W/m\u00b2 while measuring internal temperatures.
    • Thermal shock cycling: Rapid transitions between -20\u00b0C and +60\u00b0C to verify that thermal expansion/contraction does not compromise the IP67 seal or damage solder joints.
    • Field pilot testing: Deploying units in target climate zones (e.g., Gulf region summer, Nordic winter) for 3\u20136 month validation before volume shipment.

    Operators evaluating outdoor CPE should request thermal validation reports — not just IP rating certificates — as part of vendor qualification. A unit that passes IP67 in a lab at 25\u00b0C may fail in the field at 55\u00b0C if thermal management was an afterthought.

    FAQ

    Does passive cooling limit 5G throughput?

    A properly designed passive cooling system does not limit throughput under normal operating conditions. The thermal solution should be sized for worst-case ambient temperature and continuous maximum load. If thermal throttling occurs during sustained throughput, the cooling design is undersized for the deployment environment.

    Why not use active cooling with a fan?

    Fans create an opening in the enclosure, which breaks the IP67 seal. While fan-protected enclosures with IP55 ratings exist, they add a mechanical failure point (fan bearing), increase power consumption, and require filter maintenance. For carrier-grade outdoor CPE, passive cooling is strongly preferred for reliability.

    How do you verify thermal performance before buying?

    Ask the vendor for: (a) thermal simulation reports showing junction temperatures at maximum rated ambient, (b) environmental chamber test logs with throughput data, and (c) field trial results from deployments in climate zones similar to your own. A vendor that cannot provide these documents has not validated their thermal design.

    Deploying outdoor 5G CPE in challenging environments? Contact Honlly Telecom to discuss thermal performance data and explore our IP67-rated outdoor CPE portfolio engineered for extreme conditions.

  • eSIM Integration in 4G/5G CPE: Simplifying Global Operator Deployment and Logistics

    eSIM Integration in 4G/5G CPE: Simplifying Global Operator Deployment and Logistics

    For telecom operators and ISPs managing multi-country CPE deployments, SIM logistics have long been a cost bottleneck. Physical SIM cards require country-specific inventory, manual provisioning, and in-field replacement when roaming agreements change — each step multiplying operational overhead. eSIM technology, now maturing across 4G and 5G CPE platforms, changes this equation fundamentally.

    What eSIM Means for CPE Deployment

    An embedded SIM (eSIM) is a soldered, remotely programmable SIM chip compliant with GSMA’s Remote SIM Provisioning (RSP) specifications. Unlike a traditional plastic SIM that binds a device to one operator profile, an eSIM-enabled CPE can store multiple operator profiles and switch between them over the air — without a technician visit or hardware swap.

    For CPE devices deployed across borders, this capability removes the need to stock SKU variants per operator. One hardware SKU can serve deployments in Germany, Brazil, and Indonesia — the operator profile is loaded after the device arrives at its destination.

    Supply Chain Simplification: One SKU, Global Reach

    In a traditional physical SIM model, an operator or distributor must:

    • Forecast demand per country and per operator partner
    • Procure CPE units pre-loaded with country-specific SIM cards
    • Manage separate inventory pools for each market
    • Handle returns and re-flashing when forecasts miss

    With eSIM, the procurement team orders a single CPE variant. The device ships to any regional warehouse, and the correct operator profile is downloaded during first boot or at a staging facility. This collapses SKU count, reduces warehousing complexity, and cuts the cost of demand-forecast errors dramatically.

    Remote SIM Provisioning: How It Works

    GSMA’s RSP architecture defines two core components: the SM-DP+ (Subscription Manager Data Preparation) server, managed by the operator or a third-party RSP platform, and the eUICC (embedded UICC) inside the CPE. The provisioning flow is straightforward:

    1. Profile download: The CPE connects to any available network (including a bootstrap profile) and contacts the SM-DP+ server.
    2. Mutual authentication: The SM-DP+ verifies the eUICC certificate and the eUICC authenticates the server.
    3. Profile installation: The operator profile — containing IMSI, authentication keys, and network parameters — is encrypted and installed on the eUICC.
    4. Profile activation: The CPE switches to the new profile and attaches to the target operator’s network.

    This entire process can be triggered remotely, at scale, and without physical access to the device. For operators managing tens of thousands of CPE units across multiple markets, the operational savings are substantial.

    Multi-Operator Switching: Reducing Roaming Costs

    An eSIM-capable CPE can hold multiple operator profiles simultaneously (typically 5\u201310, depending on eUICC memory). Combined with intelligent profile switching logic, the CPE can:

    • Select the lowest-cost operator for data based on time-of-day or usage thresholds
    • Fail over to a second operator when the primary network degrades
    • Switch profiles based on geographic location (detected via network MCC/MNC)

    This multi-IMSI capability is especially valuable for IoT and enterprise CPE use cases where devices move between regions or require guaranteed uptime. It also gives operators flexibility to renegotiate roaming agreements without touching deployed hardware.

    Key Considerations for CPE Procurement

    When evaluating eSIM-capable 4G/5G CPE for operator deployment, procurement teams should verify:

    • GSMA SGP.02 / SGP.22 compliance: Ensure the eUICC supports the M2M (SGP.02) or consumer (SGP.22) RSP architecture appropriate for the deployment model.
    • Profile memory capacity: Confirm how many operator profiles the eUICC can store and whether profile deletion/replacement is supported OTA.
    • Bootstrap connectivity: Understand how the CPE gains initial network access to download its first operational profile — bootstrap IMSI, Wi-Fi provisioning, or local staging tool.
    • SM-DP+ integration: Verify that your chosen RSP platform or operator SM-DP+ is compatible with the CPE vendor’s eUICC implementation.
    • Regulatory compliance: Some markets restrict permanent roaming or require local IMSI registration. eSIM simplifies compliance by enabling local profile provisioning.

    The Logistics Advantage: Real-World Impact

    Consider a European MVNO expanding to three new markets in Southeast Asia. With physical SIMs, the roll-out requires three separate CPE shipments, three inventory pools, and on-site technicians for installation. With eSIM-capable CPE, a single shipment covers all three markets. Devices are activated remotely after customs clearance, and the operator can provision local profiles from a central NOC. Deployment time shrinks from months to days.

    For fixed wireless access (FWA) deployments at scale — where CPE installation is already a major cost driver — eliminating the SIM-handling step reduces truck rolls, simplifies installer training, and accelerates time-to-revenue.

    FAQ

    Does eSIM increase CPE hardware cost?

    The eUICC chip adds a marginal component cost — typically under USD 1 per unit at volume. This is offset many times over by supply chain simplification and reduced SIM logistics expense. Most CPE vendors now offer eSIM as a standard or optional feature with negligible price impact.

    Can eSIM CPE fall back to a physical SIM?

    Many eSIM-capable CPE designs include both an eUICC and a physical SIM slot (hybrid configuration). This gives operators flexibility: use eSIM for primary deployment and the physical SIM slot for local testing or emergency fallback.

    What happens if the provisioning server is unreachable?

    Once a profile is installed on the eUICC, the CPE operates independently of the SM-DP+. The provisioning server is needed only during initial profile download or profile updates. If the server is unreachable at first boot, the CPE typically retries or falls back to a pre-loaded bootstrap profile.

    Is eSIM secure for operator credentials?

    Yes. The GSMA Security Accreditation Scheme (SAS) certifies eUICC manufacturing sites and SM-DP+ platforms. Profile data is encrypted end-to-end using the eUICC unique private key, which never leaves the secure element. The security model is more robust than a removable physical SIM.

    Looking for eSIM-ready 4G/5G CPE for your operator deployment? Contact Honlly Telecom to discuss your requirements and explore our CPE portfolio with integrated eSIM support.

  • 4×4 MIMO and Beamforming in 5G CPE: An Enterprise Buyer’s Technical Guide to Antenna Technology and Real-World Throughput Performance

    4×4 MIMO and Beamforming in 5G CPE: An Enterprise Buyer’s Technical Guide to Antenna Technology and Real-World Throughput Performance

    When telecom operators and enterprise buyers evaluate 5G CPE specifications, antenna configuration and MIMO capability are often buried in data sheets under cryptic technical parameters. Yet these two factors — more than any other single specification — determine real-world throughput, coverage range, and user experience. A CPE with an advanced modem chipset but a compromised antenna design will consistently underperform a device with a mid-range chipset and a well-engineered antenna system. This guide explains the antenna and MIMO technologies that matter for 5G CPE procurement and how to evaluate them effectively.

    Understanding MIMO: The Throughput Multiplier

    Multiple-Input Multiple-Output (MIMO) is the foundational technology that enables 5G’s high data rates. It exploits multipath propagation — the phenomenon where radio signals reflect off buildings, vehicles, and terrain — by using multiple antennas at both the base station and the CPE to create parallel data streams over the same frequency channel. Each additional antenna pair adds a spatial stream, multiplying throughput without requiring additional spectrum.

    MIMO Configurations in Commercial 5G CPE

    Modern 5G CPE devices typically implement one of the following MIMO configurations:

    MIMO Configuration Downlink Streams Typical Peak Throughput Common Use Case
    2×2 MIMO 2 spatial layers ~1.5-2.5 Gbps (sub-6 GHz) Entry-level FWA, MiFi, IoT gateways
    4×4 MIMO 4 spatial layers ~3.0-5.0 Gbps (sub-6 GHz) Premium FWA, enterprise CPE, carrier-grade routers
    4×4 + mmWave 4 (sub-6) + 2-4 (mmWave) ~7-10 Gbps High-capacity urban FWA, enterprise HQ

    The step from 2×2 to 4×4 MIMO roughly doubles theoretical throughput under good signal conditions. However, this doubling only materializes when the network side also supports 4×4 MIMO on the serving cell — a condition that is increasingly common as operators upgrade base stations but is not yet universal, particularly in rural or suburban deployments.

    Beamforming: Directional Precision for Coverage and Capacity

    While MIMO multiplies capacity through spatial streams, beamforming improves signal quality by focusing radio energy in specific directions rather than broadcasting omnidirectionally. In 5G CPE, two types of beamforming are relevant:

    Network-Side Beamforming (gNB Transmit)

    The 5G base station (gNB) uses its antenna array — typically 64 or 128 elements in massive MIMO deployments — to form narrow beams directed at individual CPE devices. This beamforming is transparent to the CPE but dramatically improves the signal-to-interference-plus-noise ratio (SINR) at the receiver. A CPE located in a beamformed cell can experience 6-10 dB higher SINR than in a non-beamformed environment, translating to higher-order modulation (256QAM vs. 64QAM) and significantly higher throughput.

    For CPE buyers, the key insight is that beamforming effectiveness depends partly on the CPE’s ability to provide accurate channel state information (CSI) feedback to the network. CPE with well-designed antenna arrays and sophisticated CSI reporting algorithms enables better beamforming at the network side, creating a virtuous cycle of improved performance. This is one reason why premium CPE with carefully engineered RF front-ends can outperform lower-cost devices even when both use the same modem chipset.

    CPE-Side Beamforming and Antenna Diversity

    At the CPE side, beamforming is implemented through antenna diversity and phased array techniques. High-end 5G CPE devices use multiple antenna elements arranged with specific spacing and polarization to maximize diversity gain and enable receive-side beamforming. Key design parameters include:

    Antenna correlation: For MIMO to work effectively, signals received at different antennas must be sufficiently uncorrelated. Antenna correlation below 0.3 is generally considered good; above 0.5, MIMO gain degrades significantly. Antenna spacing of at least λ/2 (half wavelength, approximately 4-5 cm at 3.5 GHz) and mixed polarization (vertical + horizontal) are standard techniques for achieving low correlation. CPE with internal antennas must be carefully designed to maintain low correlation despite the compact form factor — a non-trivial RF engineering challenge that separates competent ODMs from commodity manufacturers.

    Antenna gain and efficiency: Antenna gain measures how effectively an antenna concentrates radiated energy in a particular direction, expressed in dBi. For indoor CPE, typical antenna gain ranges from 2-5 dBi. Higher gain improves reception in the antenna’s favored direction at the expense of reduced coverage in other directions — a worthwhile tradeoff for fixed CPE that can be oriented toward the nearest cell site. Antenna efficiency — the ratio of radiated power to input power — should exceed 50% across the operating frequency bands. Low efficiency means a significant portion of the received signal is lost as heat rather than delivered to the receiver, directly reducing throughput.

    Internal vs. External Antennas: The Deployment Decision

    One of the most consequential CPE procurement decisions is whether to select devices with internal or external antennas. Each approach has distinct tradeoffs:

    Internal Antennas

    Advantages: Sleek industrial design, no installation complexity, lower manufacturing cost, no risk of antenna damage or misconnection during deployment. Suitable for consumer self-install FWA and indoor enterprise deployments with adequate signal strength.

    Limitations: Inevitable performance compromise due to space constraints and proximity to electronics (noise sources). Antenna gain is limited to approximately 2-4 dBi in compact enclosures. Performance is sensitive to device placement and orientation — a CPE placed behind a metal shelf or near a refrigerator may experience 10-15 dB signal degradation. No option for external high-gain antenna upgrade in marginal coverage locations.

    External Antennas (with TS-9 or SMA Connectors)

    Advantages: Support for external high-gain antennas (8-12 dBi) that can be mounted outdoors or in optimal indoor positions. TS-9 or SMA connectors enable field-upgradeable antenna configurations tailored to specific deployment environments. Critical for rural and suburban FWA where cell site distance exceeds 2-3 km. External antennas can improve SINR by 8-15 dB in challenging locations — the difference between usable and unusable broadband service.

    Limitations: Higher total cost (CPE + external antenna kit typically $30-80 additional). Installation complexity requires technical competence or professional installation. External connectors introduce potential points of failure (corrosion, loose connections, water ingress). Aesthetic considerations for visible external antennas in residential deployments.

    For operators serving mixed urban/suburban/rural markets, the optimal procurement strategy is often a two-tier CPE portfolio: internal-antenna devices for urban/suburban subscribers with good signal conditions, and external-antenna-capable devices for rural and cell-edge subscribers. This segmentation minimizes total cost while ensuring acceptable service quality across the subscriber base.

    Antenna Configuration Verification: What to Look for in CPE Specifications

    CPE data sheets vary widely in the depth and honesty of antenna specifications. When evaluating candidate devices, look for these specific parameters:

    Explicit MIMO configuration per band: Some CPE devices advertise “4×4 MIMO” but only implement it on select frequency bands — commonly n78 (3.5 GHz) while falling back to 2×2 on n1/n3/n7/n28. A device with 4×4 MIMO only on a single band provides limited benefit in networks using carrier aggregation across multiple bands. Verify the MIMO configuration for each supported 5G NR band, not just the headline specification.

    Antenna gain per band (not just peak gain): Antenna gain varies across frequency. A CPE with 5.0 dBi gain at 3.5 GHz may deliver only 1.5 dBi at 700 MHz (n28). Since low-band frequencies are critical for coverage range, low antenna gain at n28 significantly reduces cell-edge performance. Request antenna gain specifications per supported frequency band.

    Total radiated power (TRP) and total isotropic sensitivity (TIS): These over-the-air (OTA) metrics provide a more complete picture of antenna system performance than conducted measurements. TRP measures total power radiated by the CPE transmitter across all directions — important for uplink-limited scenarios common at cell edges. TIS measures receiver sensitivity across all directions — critical for downlink performance. Reputable CPE manufacturers should provide OTA test results from certified labs (CTIA, SGS, Bureau Veritas).

    Antenna isolation between MIMO branches: Isolation below -15 dB between antenna elements within the same CPE indicates strong mutual coupling, which degrades MIMO performance by increasing correlation. Isolation above -10 dB is generally acceptable; -15 dB or better is good design practice. This parameter is often omitted from consumer-grade CPE data sheets but should be available from ODMs targeting carrier customers.

    Real-World MIMO Performance Factors

    Laboratory MIMO performance in conducted test conditions rarely translates directly to field performance. Several real-world factors significantly affect MIMO gain:

    Channel richness: MIMO requires a rich multipath environment with sufficient scatterers — buildings, vehicles, terrain features — to create decorrelated signal paths. In flat rural terrain with few obstructions, MIMO gain is inherently limited even with well-designed CPE. Operators deploying FWA in rural plains or desert regions should temper MIMO throughput expectations and consider external directional antennas as an alternative.

    Network loading: MIMO spatial streams are shared resources at the base station. During peak hours, a gNB serving 64 connected devices may allocate only 1-2 spatial layers per CPE regardless of the CPE’s 4×4 capability. The CPE’s MIMO configuration sets the upper bound of performance, but actual throughput is always limited by network resource allocation.

    Indoor penetration loss: Modern energy-efficient buildings with low-E glass and metal-framed construction can impose 20-30 dB penetration loss at mid-band frequencies (3.5 GHz). This loss not only reduces total signal power but also strips the multipath richness that MIMO exploits — signals arriving through a single window penetration point tend to be highly correlated, reducing MIMO gain. For buildings with high penetration loss, an outdoor-mounted CPE or external antenna is often the only effective solution.

    Evaluating Antenna Performance Without a Lab

    For procurement teams without access to RF test laboratories, several practical evaluation techniques provide useful antenna performance insights:

    Field A/B testing: Deploy candidate CPE devices at 3-5 representative locations — urban indoor, suburban indoor, cell-edge, rural — and measure throughput, SINR, RSRP, and RSRQ at multiple times of day. A CPE that shows 15-20% higher average throughput than a competitor across diverse locations is demonstrating superior antenna system design, not just modem capability. Ensure all devices are connected to the same operator network and, ideally, the same serving cell during testing.

    Placement sensitivity testing: Test each CPE in multiple orientations and locations within the same room. A device whose throughput varies by less than 15% across orientations has well-designed antenna diversity; a device showing 30%+ variation has poor omnidirectional coverage and will be more sensitive to end-user placement decisions.

    Near-field obstruction testing: Place the CPE near common household objects — metal shelf, TV, microwave oven, refrigerator — and measure throughput degradation. A well-designed antenna system typically tolerates moderate obstructions with less than 10% throughput loss; poorly designed systems may lose 30-50% of throughput. This test simulates real-world deployment conditions more accurately than open-air laboratory measurements.

    Future Developments: MIMO Evolution in 5G-Advanced and Beyond

    Antenna technology in CPE continues to evolve. Several developments on the near horizon will affect procurement decisions in 2026-2028:

    Multi-TRP MIMO (3GPP Release 18): The ability for a single CPE to simultaneously receive from multiple transmission reception points (cell sites) effectively creates a distributed MIMO system that dramatically improves cell-edge performance. CPE supporting multi-TRP requires additional antenna complexity and signal processing capability. Operators planning network upgrades to R18 should begin qualifying multi-TRP-capable CPE in 2026.

    AI-enhanced beam management: 5G-Advanced standardizes AI/ML-based beam prediction and selection, reducing the beam sweeping overhead that currently consumes air interface resources. CPE with AI-enhanced beam management capability will experience faster beam acquisition after cell reselection and more consistent beam tracking during mobility — an important consideration for nomadic or vehicular CPE applications.

    Sub-7 GHz antenna integration: As regulators allocate new spectrum in the 6-7 GHz range for IMT (international mobile telecommunications), CPE antenna designs must expand to cover this additional frequency range. Dual-band antennas covering both 3.3-4.2 GHz and 6.425-7.125 GHz in a single compact element present a significant design challenge. Early-adopter CPE for 6 GHz 5G will command premium pricing but provide spectrum capacity advantages as networks deploy the new band.

    Conclusion

    Antenna design and MIMO configuration are not secondary specifications to be reviewed after chipset and throughput numbers — they are the primary determinants of real-world CPE performance. For telecom operators and enterprise buyers, investing time in understanding MIMO configurations, beamforming implementation, antenna gain characteristics, and field validation methodology pays direct dividends in subscriber satisfaction and reduced support costs. When comparing CPE options, look beyond the modem specification to the antenna system that actually delivers the bits to the user. A 4×4 MIMO CPE with carefully engineered antennas will consistently outperform a 2×2 device with the same chipset — and a 4×4 CPE with poor antenna design will underperform a well-engineered 2×2 device. The antenna is not a commodity component; it is the critical interface between the 5G network and the end user’s experience.

    Frequently Asked Questions

    Is 4×4 MIMO always better than 2×2 MIMO for 5G CPE?

    In theory, yes — 4×4 MIMO doubles the number of spatial streams, potentially doubling throughput. In practice, the benefit depends on three conditions: the serving cell must support 4×4 MIMO (increasingly common but not universal), the radio environment must provide sufficient multipath richness to decorrelate the four streams, and the CPE antenna design must achieve low enough correlation between elements. In poor multipath environments (flat rural terrain) or when connected to a 2×2-only cell, a 4×4 CPE provides no throughput advantage over 2×2. However, for future-proofing and best-case performance, 4×4 is the recommended minimum for premium FWA and enterprise CPE procurement from 2026 onward.

    How do I know if my CPE supports external antennas?

    Look for TS-9, SMA, or RP-SMA connector ports on the CPE enclosure — typically 2 or 4 ports corresponding to the MIMO configuration. These are usually covered by removable caps or panels. The product specification should explicitly list “external antenna support” or “antenna connector type.” Be aware that some CPE devices have the physical connectors but require firmware configuration to switch from internal to external antennas — verify this capability before procurement if external antenna use is anticipated.

    Can I upgrade a 2×2 MIMO CPE to 4×4 MIMO?

    No. MIMO configuration is determined by the modem chipset and RF front-end architecture, both of which are fixed at the hardware level. A 2×2 MIMO CPE physically lacks the additional RF receive chains, antenna elements, and baseband processing capability required for 4×4 operation. MIMO capability cannot be added through software or firmware updates. If 4×4 MIMO is important for your deployment, it must be specified at the procurement stage.

    What antenna gain is sufficient for rural FWA deployments?

    For rural FWA where cell site distance exceeds 3-5 km, internal CPE antennas (2-5 dBi) are generally insufficient. External directional antennas with 8-12 dBi gain, ideally mounted outdoors at roof level, are recommended. The combination of higher antenna gain, outdoor mounting (eliminating building penetration loss), and directional focus (reducing interference) can improve SINR by 10-20 dB compared to an indoor internal-antenna CPE — often the difference between no service and reliable broadband.

    Does beamforming eliminate the need for careful CPE placement?

    No. While network-side beamforming improves signal quality, it cannot fully compensate for extremely poor CPE placement. Placing a CPE inside a metal cabinet, behind a large appliance, or in a basement will still degrade performance significantly regardless of beamforming capability. CPE placement guidelines — near a window facing the nearest cell site, elevated position, away from metal obstructions — remain important even in beamformed 5G networks. The combination of good CPE placement and network beamforming delivers the best results.

    Need High-Performance 5G CPE with Optimized Antenna Systems?

    Honlly Telecom designs and manufactures 5G CPE, FWA devices, and MiFi products with carefully engineered 4×4 MIMO antenna systems, external antenna support, and carrier-grade RF performance. Contact our engineering team to discuss your antenna and MIMO requirements for your next CPE deployment.

    Contact Honlly Telecom →
  • The Telecom OEM/ODM Partner Selection Playbook: How ISPs and Operators Can Evaluate CPE Manufacturing Partners for Competitive Product Lines

    The Telecom OEM/ODM Partner Selection Playbook: How ISPs and Operators Can Evaluate CPE Manufacturing Partners for Competitive Product Lines

    For telecom operators, ISPs, and MVNOs seeking to launch branded customer premises equipment (CPE) product lines, selecting an OEM or ODM manufacturing partner is arguably the single most consequential business decision in the product development lifecycle. The right partner delivers competitive hardware, accelerates time-to-market, and protects your brand reputation. The wrong partner creates quality problems, regulatory compliance failures, and costly delays that can damage customer relationships irreparably.

    This playbook provides a structured 14-point evaluation framework designed for telecom procurement teams assessing OEM/ODM CPE manufacturing partners. Each criterion addresses a dimension of manufacturing partnership that directly affects product quality, total cost of ownership, and long-term business viability.

    1. Engineering Competence and R&D Depth

    The foundation of any CPE manufacturing partnership is engineering capability. Evaluate prospective partners across three dimensions:

    In-house design capability: Does the partner employ dedicated RF engineers, antenna designers, embedded systems developers, and industrial designers as full-time staff? A manufacturer that outsources core design work introduces coordination risk and reduces your ability to customize products. Request an organizational chart of the engineering team and verify headcount — a credible CPE ODM should have at least 30-50 engineers covering the full hardware-to-software stack.

    Reference design vs. custom development: Some ODMs are essentially integrators who assemble chipsets from Qualcomm, MediaTek, or UNISOC using vendor-provided reference designs with minimal modification. Others have the capability to customize RF front-end designs, optimize antenna arrays, and develop differentiated firmware features. Understand where each candidate sits on this spectrum. A reference-design integrator may be adequate for basic CPE with short time-to-market requirements, but custom development capability becomes essential for differentiated products in competitive market segments.

    Software and firmware capability: Modern CPE is increasingly software-defined. Your ODM partner must demonstrate competence in OpenWrt-based firmware development, TR-069/TR-369 remote management protocol implementation, OTA update infrastructure, and security hardening. Request examples of firmware customization projects completed for existing clients and verify the partner’s ability to deliver ongoing software maintenance over a 3-5 year product lifecycle.

    2. Certification Track Record

    CPE products must navigate a complex landscape of regulatory and carrier certifications. A manufacturing partner’s existing certification portfolio is a strong indicator of their ability to bring your product to market efficiently.

    Essential certifications to verify:

    • FCC (USA) — Part 15 and Part 96 (CBRS) compliance for 4G/5G devices
    • CE (European Union) — RED Directive 2014/53/EU compliance
    • GCF/PTCRB — Global Certification Forum and PCS Type Certification Review Board for network interoperability
    • Carrier-specific certifications — T-Mobile, AT&T, Verizon, Vodafone, Deutsche Telekom device approval programs
    • Safety certifications — UL, IEC 62368-1, CE LVD
    • Environmental — RoHS, REACH, WEEE compliance

    Ask the ODM for a list of products that have completed each certification category. A partner that has guided multiple products through FCC and CE certification in the last 24 months will navigate the process efficiently. First-time certification projects typically take 4-6 months longer and carry higher risk of rejection or retesting. Factor this time and cost into your evaluation.

    3. Chipset Platform Relationships

    The chipset platform is the most critical component decision in CPE design, and your ODM’s relationship with chipset vendors directly affects pricing, technical support, and roadmap access. Evaluate these relationships:

    Platform diversity: A strong ODM should maintain active relationships with at least two major chipset vendors (Qualcomm, MediaTek, UNISOC, Sequans, ASR Micro). Single-vendor dependency creates supply chain concentration risk and limits your product differentiation options.

    Access tier: Not all ODM-chipset relationships are equal. Premier-tier partners receive earlier access to new chipset platforms, dedicated field application engineer (FAE) support, and preferential pricing. Ask the ODM to characterize their relationship tier with each vendor. Premier-tier relationships translate to faster time-to-market and better technical support when the inevitable integration issues arise.

    Roadmap alignment: Verify that the ODM has visibility into chipset vendor roadmaps for the next 18-24 months. Ask which next-generation platforms (e.g., Qualcomm X80/X85 for 5G-Advanced, MediaTek T830 for Wi-Fi 7-integrated 5G) they are actively developing against.

    4. Manufacturing Facilities and Quality Systems

    Physical factory capability is as important as engineering capability. When evaluating manufacturing partners:

    Factory ownership vs. subcontracting: Some ODMs operate their own SMT (surface-mount technology) lines, assembly facilities, and testing labs. Others are fabless design houses that subcontract manufacturing to third-party EMS (electronics manufacturing services) providers. The ODM-with-factory model offers better quality control and faster issue resolution, but fabless ODMs may offer more flexible capacity scaling. Both models are viable — the key is transparency. A fabless ODM must disclose their EMS partners and demonstrate tight quality management across the subcontractor relationship.

    Quality certifications: Minimum requirements include ISO 9001:2015 (quality management) and ISO 14001 (environmental management). For products targeting automotive or medical verticals, IATF 16949 and ISO 13485 respectively become relevant. Request copies of current certificates, not just claims of compliance.

    Testing infrastructure: In-house RF anechoic chambers, thermal chambers, reliability testing equipment (HALT/HASS), and automated production testing lines are indicators of manufacturing maturity. An ODM that relies entirely on third-party testing labs will have longer development cycles and higher per-project testing costs.

    5. Supply Chain Resilience

    The semiconductor shortages of 2021-2023 demonstrated that supply chain resilience is a competitive advantage, not just a cost consideration. Evaluate:

    Component sourcing strategy: Does the ODM maintain relationships with multiple distributors and authorized channels for critical components (baseband processors, RF front-end modules, memory, power management ICs)? Single-source component dependencies create single points of failure in your product supply.

    Buffer inventory policy: Ask about standard buffer stock levels for long-lead-time components. A responsible ODM should maintain 8-12 weeks of buffer inventory for components with lead times exceeding 26 weeks.

    Geopolitical risk management: For ODMs with manufacturing in China, understand their strategy for managing US-China trade restrictions, particularly around advanced semiconductor access. ODMs with manufacturing facilities in multiple countries (China + Vietnam/India/Malaysia) offer geographic diversification that mitigates single-country trade policy risk.

    6. Intellectual Property Protection

    For operators developing branded CPE with custom industrial design, firmware, or feature sets, IP protection is non-negotiable:

    Contractual IP assignment: The manufacturing agreement must clearly assign IP ownership. Custom industrial design, firmware modifications, and product-specific engineering work you commission should be your IP, not the ODM’s. Review contract language carefully — some ODM standard terms include provisions that grant them broad license rights to your commissioned designs.

    Non-compete and exclusivity: If your product involves proprietary features or unique industrial design, negotiate exclusivity periods (typically 12-24 months) during which the ODM cannot offer substantially similar products to your competitors. Exclusivity comes at a cost but protects your differentiation investment.

    Physical and digital security: Evaluate the ODM’s practices for design file access control, employee NDAs, and customer data segregation. A credible partner should have documented information security policies and be willing to undergo a security audit as part of the qualification process.

    7. Lifecycle Management and Post-Sales Support

    CPE products typically remain in the field for 3-7 years. Post-deployment support quality directly affects your operational costs and customer satisfaction:

    Firmware maintenance commitment: Clarify the ODM’s commitment to security patch delivery, bug fixes, and protocol compatibility updates over the product lifecycle. A minimum commitment should be security patches for 5 years from end-of-sale, with feature updates for at least 3 years.

    RMA and warranty process: Understand the return merchandise authorization (RMA) process, typical failure analysis turnaround time, and root cause reporting quality. A target RMA rate below 2% in the first year and below 1% annually thereafter is a reasonable benchmark for mature CPE products.

    End-of-life management: Plan for product discontinuation from the start. The ODM should commit to last-time-buy notice periods (minimum 6 months), final firmware release delivery, and documentation archival that ensures you can support the product independently if necessary.

    8. Communication and Project Management

    Technical capability is necessary but not sufficient. The ODM’s communication and project management maturity determines whether the partnership will be collaborative or adversarial:

    English-language capability: For international buyers, the ODM’s engineering and project management team must demonstrate working English proficiency. Language barriers introduce specification errors, delay issue resolution, and increase project management overhead. Conduct technical interviews in English during the evaluation process — not just with the sales team but with the engineers who will work on your project.

    Project management methodology: Ask about the ODM’s project management framework (PMP, Agile, or proprietary), milestone tracking tools, and reporting cadence. A structured project management approach with weekly status reports, milestone reviews, and documented change control processes reduces the risk of schedule and budget overruns.

    Time zone and cultural alignment: Factor in communication overhead from time zone differences. An ODM with dedicated account management in or near your time zone significantly reduces friction. Some larger ODMs maintain regional offices in Europe or North America specifically to provide local-time-zone project coordination — this is a meaningful differentiator.

    9. Cost Structure Transparency

    Cost competitiveness matters, but cost structure transparency matters more for long-term partnerships:

    BOM transparency: The ODM should be willing to share an open bill of materials (BOM) with component-level pricing, rather than a black-box unit price. Open BOMs enable you to track component cost movements, identify cost-reduction opportunities, and negotiate fairly when component prices change.

    NRE cost breakdown: Non-recurring engineering (NRE) costs for CPE development typically range from $80,000 to $400,000+ depending on customization depth. The ODM should provide a line-item NRE breakdown covering industrial design, PCB layout, RF tuning, firmware development, tooling, certification testing, and project management. Vague NRE quotes are a red flag.

    Volume pricing curves: Request pricing at multiple volume tiers (1K, 5K, 10K, 50K, 100K+ units). Steep volume discount curves may indicate high fixed costs in the manufacturing process; flat curves suggest the ODM is primarily a design house with outsourced manufacturing. Neither is inherently better — the pricing curve shape should align with your expected volumes.

    10. Existing Customer Portfolio and References

    Past performance is the best predictor of future results:

    Customer type alignment: An ODM that primarily serves consumer electronics brands may struggle with telecom carrier requirements around certification, lifecycle support, and SLAs. Look for partners with demonstrated experience serving telecom operators, ISPs, or enterprise networking brands — not just consumer gadget companies.

    Reference checks: Request permission to contact 2-3 existing customers, ideally in your region and market segment. Key questions for references: How did the ODM handle unexpected technical challenges? Was the project delivered on schedule? How responsive is post-sales support? Would you choose them again for your next product?

    Product teardown: If possible, obtain a production unit from a product the ODM manufactured for an existing customer and perform a teardown analysis. PCB layout quality, solder joint quality, thermal design, and component selection reveal more about manufacturing standards than any sales presentation.

    11. Scalability and Capacity

    Your initial order may be 5,000 units, but a successful product needs to scale to 50,000 or 500,000:

    Production capacity: The ODM should demonstrate capacity to scale from pilot production to volume manufacturing without quality degradation. Ask about monthly SMT line utilization rates — an ODM running at 90%+ utilization has limited capacity headroom for your volume growth.

    Multi-site manufacturing: For higher-volume products, dual-source manufacturing capability (two factories producing the same design) provides business continuity protection. Verify whether the ODM can replicate your production line at a second facility if volumes justify it.

    12. Regulatory and Compliance Expertise

    CPE products are among the most heavily regulated consumer electronics categories. Your ODM must demonstrate proactive regulatory competence:

    Regulatory monitoring: The ODM should maintain awareness of evolving regulations in your target markets — FCC spectrum rule changes, EU Radio Equipment Directive updates, cybersecurity certification requirements (NIST IR 8425 in the US, EN 303 645 in Europe, PSTI Act 2022 in the UK). Ask for examples of how the ODM has adapted products to regulatory changes in the past 24 months.

    Labeling and documentation: Regulatory compliance extends beyond lab testing to product labeling, user documentation, and packaging. The ODM should have experience preparing FCC Supplier’s Declaration of Conformity (SDoC) documentation, EU Declaration of Conformity, and country-specific labeling requirements. Errors in compliance documentation can delay market access by weeks or months.

    13. Innovation and Technology Roadmap

    Today’s CPE specifications won’t be competitive in 2028. Your ODM partner should demonstrate forward-looking technology development:

    R&D investment: Ask about R&D spending as a percentage of revenue (5-10% is typical for competent CPE ODMs) and the number of active R&D projects targeting next-generation technologies — Wi-Fi 7, 5G-Advanced, AI-driven network optimization, eSIM with SGP.32, ambient IoT.

    Technology demonstration capability: A credible ODM should be willing to demonstrate working prototypes or engineering samples of next-generation products, not just PowerPoint roadmaps. Seeing is believing — request a lab visit or video demonstration of their latest platform development.

    14. Cultural Fit and Long-Term Partnership Orientation

    The final criterion is qualitative but critically important: does this ODM operate as a transactional supplier or a strategic partner?

    Problem-solving culture: How does the ODM respond when things go wrong — as they inevitably do in hardware development? Look for partners who communicate problems early with proposed solutions, rather than hiding issues until they become crises. The evaluation process itself reveals cultural patterns: ODMs who are transparent about past project challenges and how they were resolved demonstrate maturity.

    Long-term orientation: CPE product cycles span years, not months. The ideal ODM partner views the relationship as an ongoing collaboration rather than a one-time transaction. Indicators of long-term orientation include proactive technology roadmap sharing, willingness to invest in joint development, and flexible commercial terms that align incentives over the product lifecycle.

    Practical Evaluation Process

    Implementing this 14-point framework requires a structured evaluation process. Recommended approach:

    1. Desktop screening (Weeks 1-2): Evaluate 8-12 candidate ODMs against criteria 1-3 (engineering, certifications, chipset relationships) using publicly available information, website analysis, and initial contact. Narrow to 4-6 candidates.
    2. RFI response (Weeks 3-4): Issue a detailed Request for Information covering criteria 4-12. Score responses against a weighted scorecard. Narrow to 2-3 finalists.
    3. Site visit and audit (Weeks 5-7): Conduct on-site evaluations of finalist facilities. Send a cross-functional team including engineering, quality, supply chain, and program management representatives. Perform reference checks and product teardowns.
    4. Commercial negotiation (Weeks 8-10): Negotiate commercial terms with 1-2 preferred partners, including BOM transparency, NRE costs, volume pricing, IP terms, and exclusivity provisions.
    5. Pilot project (Weeks 11-20): Before committing to full-scale production, execute a pilot project — perhaps a limited customization of an existing platform — to validate the partnership in practice before scaling commitment.

    Conclusion

    Selecting an OEM/ODM CPE manufacturing partner is a decision that reverberates through your product portfolio for years. A structured evaluation process using the 14 criteria outlined above — from engineering depth and certification readiness to IP protection and cultural fit — significantly reduces the risk of selecting an inadequate partner. The upfront investment in thorough evaluation pays dividends in product quality, time-to-market reliability, and long-term partnership value. In the competitive telecom CPE market, your manufacturing partner is not just a supplier — they are a critical component of your competitive strategy.

    Frequently Asked Questions

    What is the difference between OEM and ODM in telecom CPE manufacturing?

    An ODM (Original Design Manufacturer) designs and manufactures products that buyers can brand as their own. The ODM owns the base design and offers customization options. An OEM (Original Equipment Manufacturer) typically produces products based on the buyer’s specifications and designs. In telecom CPE, the ODM model is more common for operators seeking branded devices with moderate customization, while OEM arrangements suit buyers with proprietary technology who need contract manufacturing capacity.

    How much does CPE product development cost with an ODM?

    Non-recurring engineering (NRE) costs for CPE development typically range from $80,000 to $400,000+, depending on the level of customization. A lightly customized reference design with logo and packaging may cost $80,000-$120,000. A fully custom industrial design with modified PCB, custom antenna array, and differentiated firmware typically costs $200,000-$400,000+. These figures exclude certification testing costs, which can add $50,000-$150,000 depending on target markets.

    How long does it take to bring a CPE product to market with an ODM?

    Timeline depends on customization depth. A lightly customized ODM platform product can reach market in 4-6 months (including certification). A moderately customized product with new industrial design and firmware modifications typically requires 8-12 months. A fully custom product with new PCB design, custom antenna, and extensive software development can take 14-18 months. Add 2-4 months if the ODM has no existing certifications in your target markets.

    Should I work with a China-based or non-China ODM for CPE manufacturing?

    China remains the dominant location for CPE ODMs due to ecosystem density, cost competitiveness, and engineering talent availability. However, geopolitical factors (tariffs, trade restrictions) are driving interest in alternative manufacturing locations including Vietnam, India, and Malaysia. The optimal approach for many operators is to work with a China-based ODM that has or is developing multi-country manufacturing capability, providing cost advantages with geographic risk diversification.

    What are the most common mistakes in ODM partner selection?

    The most frequent mistakes include: selecting based on unit price alone without evaluating total cost of ownership; failing to verify certification track record for target markets; inadequate IP protection in manufacturing agreements; choosing an ODM whose primary experience is in consumer electronics rather than carrier-grade equipment; and insufficient technical due diligence (relying on sales presentations rather than engineering audits and product teardowns). Each of these mistakes can delay market entry by 6-12 months or create product quality issues that damage brand reputation.

    Ready to Discuss Your CPE Manufacturing Requirements?

    Honlly Telecom provides comprehensive OEM/ODM manufacturing services for 4G/5G CPE, MiFi, FWA devices, and wireless routers. With ISO 9001-certified manufacturing facilities and a proven track record of carrier-grade product delivery, we help operators and ISPs bring competitive CPE products to market. Contact our team to begin your partner evaluation.

    Contact Honlly Telecom →
