Private 5G Spectrum Options: Shared vs. Dedicated vs. Leased

The choice of spectrum fundamentally shapes CPE requirements, coverage characteristics, and total cost of ownership. Enterprise buyers must understand three primary spectrum acquisition models:

1. Dedicated / Licensed Spectrum

Enterprises directly acquire spectrum licenses from national regulators for exclusive use within a defined geographic area. This model provides the highest level of control and predictability, with guaranteed interference-free operation. Germany’s 3.7-3.8 GHz “Campusnetz” licenses (€1,000-10,000 per site, 10-year term) and Japan’s Local 5G licenses (4.6-4.8 GHz) are prominent examples. CPE for dedicated spectrum deployments must be precisely configured for the specific licensed frequency range and must include GPS/GNSS receivers for time synchronization in TDD networks.

2. Shared Spectrum (e.g., CBRS, n77 Shared Access)

In shared spectrum models, multiple users access the same frequency band under a coordination framework. The US CBRS band (3.55-3.70 GHz) operates under a three-tier Spectrum Access System (SAS) that dynamically assigns frequencies to incumbent (Tier 1), Priority Access (Tier 2), and General Authorized Access (Tier 3) users. CPE operating in shared spectrum must be SAS-certified and capable of dynamic frequency selection, requiring embedded Environmental Sensing Capability (ESC) or SAS client integration. The UK’s Shared Access license framework provides a similar model with low-power (indoor) and medium-power (outdoor/campus) tiers.

3. Operator-Leased Spectrum / Network Slicing

Enterprises can lease private network capacity from mobile network operators (MNOs) through dedicated network slices on public 5G infrastructure. This model, often referred to as PNI-NPN (Public Network Integrated Non-Public Network), uses the operator’s licensed spectrum with guaranteed SLA parameters for throughput, latency, and availability. CPE for network-sliced deployments must support URSP (UE Route Selection Policy) for slice-aware traffic routing and may require operator-specific SIM/eSIM provisioning with dedicated DNN/APN configurations.

NPN Architecture Models: SNPN vs. PNI-NPN

The 3GPP standards (TS 23.501, Release 16+) define two primary architecture models for Non-Public Networks:

Standalone Non-Public Network (SNPN)

An SNPN operates as a completely independent 5G network with its own dedicated core network, radio access network, and network management system. It does not rely on any public PLMN (Public Land Mobile Network) infrastructure. SNPN is identified by a unique NID (Network Identifier) in addition to the PLMN ID. This architecture provides maximum data sovereignty, security isolation, and operational independence — critical requirements for defense contractors, semiconductor fabs, and critical infrastructure operators. CPE for SNPN deployments must support SNPN-specific network selection procedures as defined in 3GPP Release 16, including CAG (Closed Access Group) cell selection and manual SNPN selection modes.

Public Network Integrated NPN (PNI-NPN)

PNI-NPN provides private network functionality integrated with a public 5G network, typically using network slicing and Closed Access Groups (CAGs) to create virtualized private network domains within the operator’s infrastructure. This model reduces upfront capital expenditure by leveraging existing network infrastructure and is ideal for enterprises that require private network-grade performance but prefer an OPEX-based service model. CPE for PNI-NPN must support CAG-based access control, allowing devices to only access cells belonging to authorized CAGs, and URSP rules for directing enterprise traffic to dedicated network slices.

Hybrid Deployment Models

A growing number of enterprises are adopting hybrid architectures that combine SNPN for mission-critical, high-security workloads (e.g., production line control, safety systems) with PNI-NPN for less sensitive applications (e.g., visitor Wi-Fi offload, general office connectivity). This requires CPE capable of simultaneously operating in both SNPN and public network modes, with intelligent traffic steering between private and public network domains based on application requirements.

CPE Selection Criteria for Enterprise Private 5G

Radio Capability Requirements

• 5G SA (Standalone) support: Mandatory for private networks; NSA is insufficient for URLLC and network slicing features
• Band support: n48 (CBRS), n77, n78, n79 for sub-6 GHz; n257/n258 for mmWave use cases
• 4×4 MIMO: Essential for maximizing spectral efficiency in enterprise environments
• Carrier aggregation: Support for intra-band and inter-band CA for throughput aggregation
• Antenna configuration: External antenna ports (SMA/N-Type) for installations requiring directional or high-gain antennas

Network Interface and Protocol Support

• Multi-gigabit Ethernet: 2.5GbE minimum; 5GbE/10GbE for high-throughput industrial applications
• Serial interfaces: RS232/RS485 with Modbus TCP/RTU gateway for legacy industrial equipment
• Time-sensitive networking (TSN): IEEE 802.1AS timing synchronization for industrial automation
• Dual SIM / eSIM: For multi-operator redundancy and flexible provisioning
• GPS/GNSS: For TDD network synchronization and location-aware services

Security and Management

• Hardware root of trust (HRoT): TPM 2.0 or equivalent secure element
• Secure boot: Signed firmware with rollback protection
• IPsec/IKEv2: For secure backhaul tunneling to enterprise data centers
• Zero-touch provisioning (ZTP): TR-069/TR-369 (USP) support for bulk device onboarding
• SNMP v3 / NETCONF / RESTCONF: For integration with enterprise NMS platforms

Deployment Best Practices

1. Conduct a Comprehensive Site Survey: Before CPE procurement, perform a detailed RF site survey including spectrum analysis, propagation modeling, and interference assessment. Identify optimal CPE mounting locations accounting for industrial obstacles (metal racking, machinery, RF-noisy equipment).

2. Plan for Device Density: Private 5G networks in manufacturing and logistics often support 500-1,000+ connected endpoints per cell. Ensure CPE selection accounts for per-device throughput requirements under peak load conditions, not just headline speed specifications.

3. Implement Staged Deployment: Begin with a pilot deployment in a single production area or warehouse zone, validate performance against KPIs (latency, throughput, availability), then scale to full production. Use the pilot phase to validate CPE interoperability with specific industrial applications and protocols.

4. Establish CPE Lifecycle Management: Deploy centralized CPE management platforms supporting firmware OTA updates, configuration backup/restore, performance monitoring, and security patch management. Plan for CPE lifecycle of 5-7 years with vendor support commitments aligned to operational requirements.

5. Engage with System Integrators: Private 5G deployment is rarely a “plug-and-play” exercise. Partner with experienced system integrators who understand both 5G network engineering and the specific operational technology (OT) environment of your industry vertical.

Contact Honlly Telecom for Private 5G CPE Consultation →

For ISPs, MVNOs, and enterprise network operators deploying 5G Fixed Wireless Access (FWA) at scale, Quality of Service (QoS) architecture is no longer a secondary consideration—it is a fundamental differentiator that determines whether a CPE fleet can deliver carrier-grade service level agreements (SLAs) across diverse traffic profiles. This technical buyer’s guide examines the architectural components, standards frameworks, and procurement criteria that define enterprise-grade 5G CPE QoS capabilities in 2026.

The Enterprise QoS Imperative: Why Best-Effort Is Not Enough

Enterprise 5G FWA deployments carry fundamentally different traffic requirements than consumer broadband. A single enterprise CPE may simultaneously handle real-time UCaaS traffic (Teams, Zoom), cloud ERP transactions, SD-WAN overlay tunnels, IoT telemetry streams, and bulk data backups—each with distinct latency, jitter, throughput, and reliability requirements. Without robust QoS enforcement at the CPE level, the “last meter” of the 5G connection becomes the bottleneck that undermines end-to-end SLA guarantees.

Key enterprise traffic profiles and their QoS requirements:

Traffic Class	Latency Target	Jitter	Packet Loss	Priority
Real-Time Voice/Video	<30ms	<10ms	<0.1%	EF (Expedited Forwarding)
Business-Critical Apps	<50ms	<20ms	<0.5%	AF41 (Assured Forwarding)
SD-WAN Control Plane	<100ms	N/A	<1%	AF31
IoT Telemetry	<200ms	N/A	<2%	AF21
Bulk Data/Backup	N/A	N/A	<5%	BE (Best Effort)

5G QoS Architecture Fundamentals: The 5QI Framework

The 3GPP 5G QoS model centers on the 5G QoS Identifier (5QI), a scalar value that maps to standardized QoS characteristics including resource type (GBR, Non-GBR, Delay-Critical GBR), priority level, packet delay budget (PDB), and packet error rate (PER). For CPE procurement, understanding how candidate devices map 5QI values to internal traffic processing pipelines is essential.

Enterprise-relevant 5QI values include:

• 5QI 3 (GBR, PDB 50ms): Real-time gaming, V2X communications, and interactive AR/VR applications requiring guaranteed bit rate with tight latency bounds.
• 5QI 5 (Non-GBR, PDB 100ms): IMS signaling, critical machine-type communications, and enterprise UCaaS session initiation.
• 5QI 6 (Non-GBR, PDB 300ms): TCP-based enterprise applications including HTTP/HTTPS, email, chat, and file transfers with standard buffering tolerance.
• 5QI 7 (Non-GBR, PDB 100ms): Voice, live streaming, and interactive gaming with conversational latency requirements.
• 5QI 82 (Delay-Critical GBR, PDB 10ms): Discrete automation, intelligent transport systems, and industrial control loops requiring ultra-reliable low-latency communication (URLLC).

A production-grade enterprise CPE must support a minimum of 8 concurrent QoS flows with independent 5QI mapping, DSCP marking preservation across the LAN-WAN boundary, and per-flow buffer management with configurable queue depths.

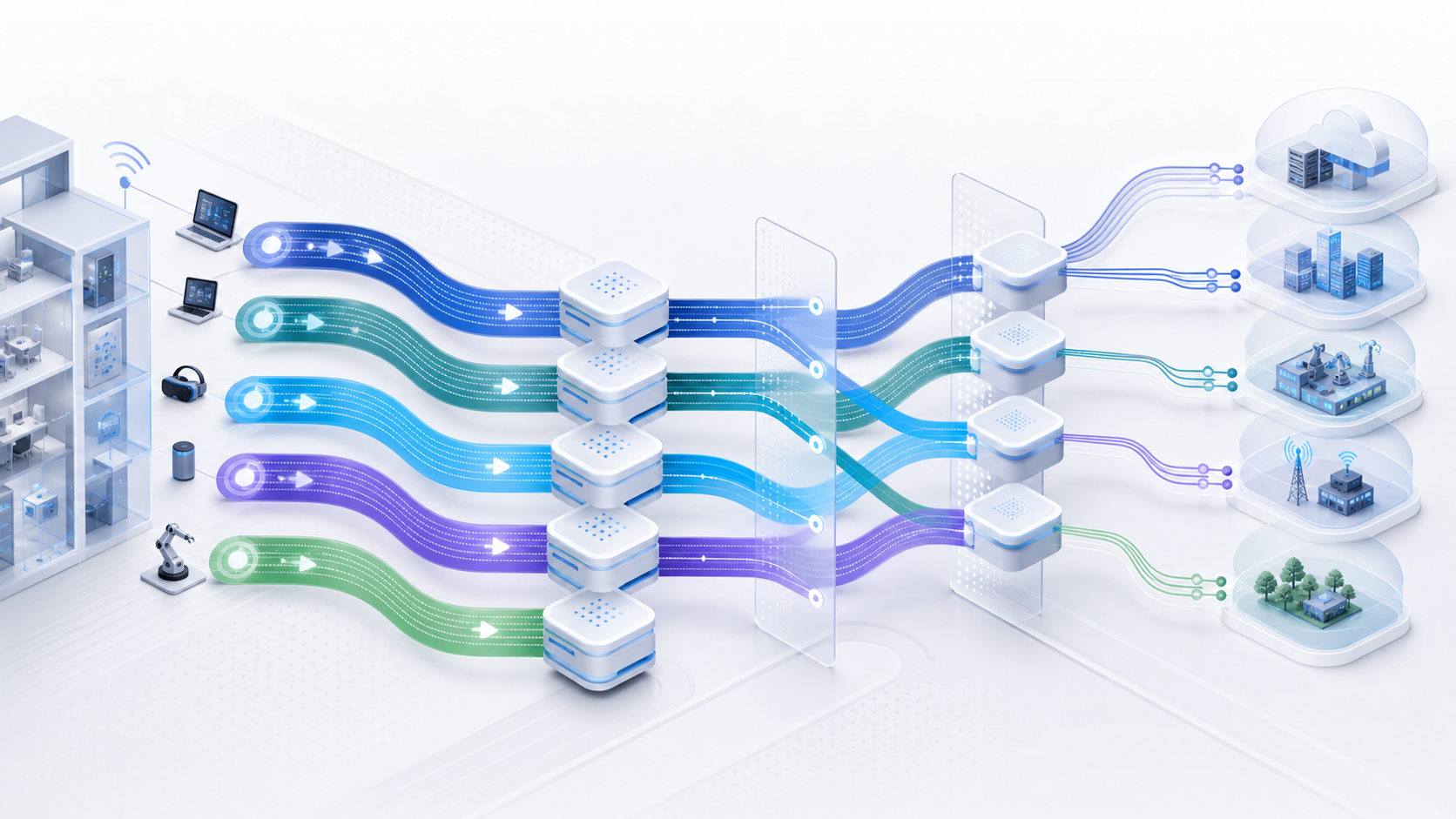

Network Slicing Integration: CPE as the Slice Termination Point

5G network slicing extends QoS architecture from per-flow management to per-slice isolation. A single enterprise CPE may terminate multiple network slices simultaneously—for example, a URLLC slice for industrial control traffic, an eMBB slice for office productivity applications, and an mMTC slice for sensor networks—each with independent security, routing, and QoS policies.

Critical CPE capabilities for network slicing integration include:

• NSSAI Awareness: The CPE must parse and act upon Network Slice Selection Assistance Information (NSSAI) conveyed during PDU session establishment, mapping each S-NSSAI to the appropriate internal processing pipeline.
• Multi-Slice VLAN Mapping: Enterprise deployments typically require per-slice VLAN separation on the LAN side. The CPE must support flexible VLAN-to-slice mapping with 802.1Q tagging, enabling seamless integration with existing enterprise switching and SD-WAN infrastructure.
• Per-Slice DSCP Remarking: When enterprise traffic traverses the 5G core, the CPE should preserve or intelligently remark DSCP markings at the slice boundary to maintain end-to-end QoS consistency.
• Slice-Aware Failover: If a network slice becomes unavailable due to radio conditions or core network events, the CPE should implement graceful degradation policies—routing critical traffic to alternate slices or fallback bearers according to configurable priority rules.

Traffic Prioritization: From 5QI to Silicon

The gap between QoS policy definition and actual packet processing performance is where many CPE implementations fall short. Enterprise buyers should evaluate devices on their hardware-accelerated QoS pipeline capabilities:

• Hardware Queue Architecture: Minimum 8 hardware queues per direction (WAN-to-LAN and LAN-to-WAN) with weighted round-robin (WRR) or deficit round-robin (DRR) scheduling, supporting both strict priority and weighted queuing in a hierarchical configuration.
• Buffer Management: Active Queue Management (AQM) with CoDel or PIE algorithms to minimize bufferbloat under congestion, plus per-queue buffer sizing configurable from 32KB to 2MB to accommodate diverse traffic profiles.
• Flow Classification Engine: Hardware-accelerated packet classification supporting Layer 2–4 matching (MAC, VLAN, IP 5-tuple, DSCP) at line rate for all Ethernet interfaces (1G/2.5G/5G/10G depending on CPE class).
• Hierarchical QoS (HQoS): Support for three-level scheduling hierarchy: per-subscriber shaping at the top level, per-service-class scheduling in the middle, and per-flow queuing at the leaf—enabling service providers to deliver wholesale SLA guarantees to multiple enterprise tenants through a single CPE.

SLA Enforcement and Monitoring

QoS architecture is only as valuable as the monitoring framework that validates it. Enterprise-grade CPE must provide granular telemetry that enables both proactive SLA assurance and forensic troubleshooting:

• Per-Flow KPI Export: The CPE should export per-flow latency, jitter, packet loss, and throughput statistics via IPFIX or NetFlow to centralized monitoring platforms, with configurable reporting intervals down to 10 seconds.
• TWAMP Light Reflector: Integrated Two-Way Active Measurement Protocol (TWAMP) reflector functionality enables end-to-end SLA measurement from centralized probes without deploying additional test endpoints at each customer site.
• Y.1731 Ethernet OAM: For enterprise LAN-side performance monitoring, support for ITU-T Y.1731 Ethernet service OAM including frame loss measurement (LM), frame delay measurement (DM), and synthetic loss measurement (SLM).
• gRPC Streaming Telemetry: Modern CPE platforms should offer gRPC-based streaming telemetry with Protobuf-encoded metrics, enabling integration with cloud-native observability stacks (Prometheus, Grafana, Thanos) and AIOps platforms for predictive SLA analytics.

Procurement Checklist: QoS Evaluation Criteria

When evaluating 5G CPE for enterprise SLA-guaranteed deployments, technical buyers should verify the following capabilities through vendor documentation, independent testing, and reference deployments:

1. 5QI Support Matrix: Full documentation of supported 5QI values, including GBR, Non-GBR, and Delay-Critical GBR types, with per-5QI PDB and PER compliance verification.
2. Concurrent QoS Flow Capacity: Minimum 8 concurrent QoS flows with independent 5QI mapping; 16+ recommended for multi-tenant or slice-rich deployments.
3. Hardware Queue Depth: At least 8 hardware queues per direction with hierarchical scheduling; verify at line rate under 64-byte packet load.
4. Bufferbloat Resistance: AQM implementation (CoDel/PIE) with buffer sizing below 500KB per queue under typical RTT conditions; validate with industry-standard bufferbloat tests.
5. NSSAI Processing: Confirm S-NSSAI parsing in PDU Session Establishment Accept messages and per-slice VLAN mapping capabilities.
6. Telemetry Export: IPFIX/NetFlow v9/v10 with per-flow granularity; gRPC streaming telemetry preferred for cloud-native integration.
7. TWAMP Light Support: Reflector functionality with configurable UDP port and DSCP marking for measurement traffic.
8. Management API: RESTCONF/NETCONF or gNMI interface for programmatic QoS policy configuration, avoiding vendor-proprietary management lock-in.
9. Firmware Update SLA: Vendor commitment to QoS-related firmware updates for the full CPE lifecycle, including new 5QI definitions from 3GPP release updates.
10. Independent Certification: O-RAN Alliance or TIP certification covering QoS and slicing interoperability; BBF TR-398 Issue 3 or later for Wi-Fi integrated CPE.

Looking Ahead: AI-Driven QoS Optimization

The next frontier in CPE QoS architecture is AI/ML-driven dynamic policy optimization. Emerging CPE platforms incorporate on-device inference engines that analyze traffic patterns in real time, predict congestion events before they impact SLAs, and autonomously adjust queue weights, buffer allocations, and 5QI-to-DSCP mappings. For enterprise buyers building long-term FWA strategies, selecting CPE with dedicated ML acceleration silicon—even if not yet fully utilized—provides a future-proofing advantage as these capabilities mature through 2027–2028.

To discuss your enterprise 5G CPE QoS requirements or request product specifications for SLA-guaranteed deployment scenarios, contact the Honlly Telecom engineering team for a detailed technical consultation.

As enterprise 5G fixed wireless access deployments scale from proof-of-concept trials to production networks carrying sensitive corporate, financial, and operational traffic, the security architecture of CPE devices has emerged as a boardroom-level concern. The traditional perimeter-based security model—where CPE was treated as a trusted endpoint inside the corporate firewall—is fundamentally incompatible with the distributed, multi-site, cloud-first enterprise architectures dominating 2026. For technical buyers evaluating 5G CPE for enterprise and industrial deployments, zero-trust security principles must now inform procurement specifications as rigorously as throughput, latency, and radio performance parameters.

The CPE Attack Surface: Why 5G FWA Demands Zero-Trust

5G CPE occupies a uniquely exposed position in the enterprise network topology. Unlike a core router locked in a climate-controlled data center with physical access controls and 24/7 security monitoring, CPE is frequently deployed in branch offices, retail locations, construction trailers, and outdoor enclosures—environments where physical tampering, unauthorized access, and network-based attacks are realistic threat vectors. Compromised CPE provides an attacker with a persistent foothold inside the enterprise WAN, with the ability to intercept, modify, or exfiltrate traffic across every connected LAN segment.

The 3GPP 5G security architecture (TS 33.501) provides robust air interface protection through 5G AKA mutual authentication, SUCI-based subscriber identity privacy, and 256-bit encryption on the radio link. However, these protections terminate at the CPE’s modem interface. Post-modem—within the CPE’s application processor, operating system, LAN interfaces, and management plane—enterprise security depends entirely on the CPE’s embedded security architecture, which varies dramatically across vendors and price points.

Hardware Root of Trust: The Foundational Layer

Zero-trust CPE security begins at the silicon level. A hardware root of trust (HRoT) provides an immutable, cryptographically verifiable foundation that ensures the CPE boots only authentic, vendor-signed firmware and that device identity keys cannot be extracted or cloned even with physical access to the device.

Secure Boot Chain: The CPE’s boot ROM, signed by the SoC vendor’s root key, cryptographically verifies the first-stage bootloader. Each subsequent stage—U-Boot or LK bootloader, Linux kernel, root filesystem—is verified against signed hashes before execution. Any modification to the boot chain, whether through firmware tampering, JTAG/SWD debug interface exploitation, or storage replacement, causes boot failure and, ideally, tamper-evident logging to a secure element. Enterprise procurement specifications should mandate secure boot with hardware-backed key storage (e.g., TPM 2.0 or platform-integrated secure enclave) and configurable security policy for boot verification failure behavior.

Trusted Platform Module (TPM) Integration: A discrete or firmware TPM 2.0 implementation enables secure storage of device identity keys, measured boot attestation, and sealed storage that binds encryption keys to specific platform configuration register (PCR) values. For enterprise zero-trust architectures, TPM-backed device attestation allows the network’s policy enforcement point to cryptographically verify that the CPE is running authorized firmware and configuration before granting network access—a foundational zero-trust principle.

Secure Element and SIM/eUICC Integration

The CPE’s UICC or eUICC provides a tamper-resistant secure element for 5G network authentication, but its security capabilities can and should be leveraged for CPE device identity beyond the 3GPP authentication framework. The GSMA’s IoT SAFE (IoT SIM Applet For Secure End-to-End) initiative standardizes the use of the SIM/eSIM as a hardware security module for device-level TLS client certificates, credential storage, and cryptographic operations.

CPE implementing IoT SAFE can use the carrier-provisioned eUICC as the hardware root for mutually authenticated TLS connections to enterprise zero-trust policy engines, cloud management platforms, and ZTNA (Zero Trust Network Access) brokers. This eliminates the need for separate hardware security modules and leverages the existing mobile operator security infrastructure—including secure OTA provisioning and key rotation—for enterprise CPE identity management.

End-to-End Encryption and Traffic Isolation

Zero-trust architecture mandates that no traffic is trusted based on network location alone. For 5G CPE deployed at the enterprise edge, this translates to mandatory encryption across the CPE’s entire data path:

IPsec and WireGuard Tunnel Termination: Enterprise CPE must support hardware-accelerated IPsec (IKEv2 with strong cipher suites) and WireGuard for tunnel termination to enterprise VPN concentrators or cloud security gateways. AES-256-GCM and ChaCha20-Poly1305 cipher support with hardware crypto acceleration is essential for maintaining multi-gigabit throughput with encryption overhead. CPE should support per-VLAN tunnel mapping, enabling different traffic classes (corporate data, guest Wi-Fi, IoT telemetry) to be encrypted and routed through separate security domains.

Micro-Segmentation at the CPE Edge: Advanced enterprise CPE implements 802.1Q VLAN trunking with per-VLAN security policies, enabling micro-segmentation between corporate workstations, payment systems, building management IoT, and guest networks directly at the branch edge. Combined with dynamic policy enforcement from a cloud-based zero-trust policy engine, this architecture ensures that a compromised IoT sensor cannot pivot to attack the payment processing VLAN—even when both connect through the same 5G CPE.

MACsec and 802.1X for LAN-Side Security: For deployments where the CPE’s LAN ports connect to managed switches or other infrastructure devices, MACsec (IEEE 802.1AE) at line rate and 802.1X supplicant functionality on the CPE’s LAN interfaces provide link-layer encryption and port-based authentication that extend the zero-trust boundary one hop deeper into the enterprise network.

Management Plane Security: The Overlooked Vector

CPE management interfaces—TR-069/TR-369 (USP), SNMP, SSH, RESTCONF, and vendor-specific cloud management APIs—represent a high-value attack surface. Zero-trust CPE security architecture must protect these interfaces with the same rigor applied to the data plane:

Mutual TLS for Management Protocols: All CPE management protocols must use mutually authenticated TLS 1.3 with client certificate authentication. The CPE must authenticate the management server (preventing man-in-the-middle attacks), and the management server must authenticate the CPE (preventing rogue device registration). Certificate enrollment should use EST (RFC 7030) or SCEP with hardware-backed key generation in the TPM or secure element.

Role-Based Access Control and Audit Logging: CPE must implement granular RBAC distinguishing between firmware update, configuration change, monitoring-only, and diagnostic roles. All administrative actions must generate syslog or structured audit events with immutable timestamps, forwarded to a centralized SIEM. Local admin credentials must be salted and hashed with modern algorithms (bcrypt, Argon2id), never stored in plaintext or reversible formats.

Secure OTA Firmware Updates: Over-the-air firmware updates are the most security-critical operation in the CPE lifecycle. Updates must be signed with vendor private keys, verified by the CPE before installation, and delivered over mutually authenticated TLS. The update mechanism must support A/B partition schemes with automatic rollback on verification failure, and update metadata (version, hash, signature, target hardware revision) must be independently verifiable by enterprise security teams.

Building the Procurement Specification

For technical buyers drafting 5G CPE procurement specifications in 2026, the following zero-trust security requirements should be considered mandatory for enterprise-grade deployments:

• Hardware root of trust with immutable boot ROM and secure boot chain verification
• TPM 2.0 or equivalent secure enclave for key storage and device attestation
• GSMA IoT SAFE or equivalent SIM-based credential storage for device identity
• Hardware-accelerated IPsec (AES-256-GCM) and WireGuard with per-VLAN tunnel mapping
• Mutual TLS 1.3 for all management interfaces with hardware-backed client certificates
• Signed, verified OTA firmware updates with A/B dual-bank fallback
• Granular RBAC with immutable audit logging to external SIEM
• 802.1X supplicant and MACsec support for LAN-side zero-trust extension
• FIPS 140-3 or Common Criteria EAL4+ certification for cryptographic modules

The enterprise 5G FWA security landscape in 2026 demands that CPE be treated not as a simple modem-and-router appliance, but as a security-enforcement point at the distributed enterprise edge. Organizations that apply zero-trust principles to CPE procurement will build 5G FWA networks that are scalable, defensible, and audit-ready—while those that treat CPE security as an afterthought will embed technical debt that becomes exponentially more expensive to remediate as deployments scale.

As global IPv4 address exhaustion enters its terminal phase—with RIPE NCC, APNIC, and ARIN all operating from final /8 allocations and IPv4 transfer market prices exceeding USD 55 per address—the transition to IPv6 in 5G fixed wireless access deployments has moved from a future-proofing exercise to an operational imperative. For technical buyers evaluating 5G CPE for carrier and enterprise deployments in 2026, understanding IPv6 transition architecture is no longer optional: it directly impacts address scalability, application performance, NAT traversal overhead, and total cost of ownership across the CPE lifecycle.

The IPv4 Exhaustion Landscape and 5G FWA Implications

5G FWA networks introduce a unique scaling challenge for IPv4. Unlike traditional mobile broadband where NAT44 and CGNAT at the mobile core suffice for smartphone traffic, FWA CPE serves entire LANs—often with dozens to hundreds of connected devices per premises—each expecting routable or at least well-NATed IP connectivity. CGNAT at the 5G core introduces stateful translation overhead that scales linearly with concurrent sessions, creating throughput bottlenecks, increased latency, and application compatibility issues for protocols that embed IP addresses in payloads (SIP, FTP, IPsec, gaming protocols).

The 3GPP 5G architecture mandates IPv6 support in the 5G core (5GC), and all major 5G standalone (SA) deployments globally operate with IPv6-native user plane functions (UPF). However, the last-mile CPE—where enterprise LANs meet the 5G WAN—remains the critical decision point where IPv6 transition strategy is implemented or broken.

Dual-Stack Architecture: The Pragmatic Baseline

Dual-stack remains the most widely deployed IPv6 transition mechanism in 5G CPE, and for good reason: it provides simultaneous IPv4 and IPv6 connectivity without requiring either protocol to tunnel through the other. In a dual-stack 5G FWA deployment, the 5GC assigns both an IPv4 address (typically RFC 1918 private address behind CGNAT) and an IPv6 global unicast address (GUA) prefix to the CPE WAN interface. The CPE then distributes IPv4 via NAT44 on the LAN side and IPv6 via prefix delegation (DHCPv6-PD) or SLAAC.

Key design considerations for dual-stack CPE:

DHCPv6 Prefix Delegation: The CPE must request an IPv6 prefix from the 5GC via DHCPv6-PD, with typical prefix lengths ranging from /56 to /64 depending on operator policy. Enterprise-grade CPE should support configurable prefix delegation hint sizes and sub-delegation to downstream routers for multi-subnet deployments.

DNS64/NAT64 Integration: Even in dual-stack deployments, the 5GC may implement DNS64/NAT64 for IPv6-only transport, requiring the CPE to correctly handle synthesized AAAA records (RFC 7050) and ensure applications that use literal IPv4 addresses are properly translated through the NAT64 gateway’s well-known prefix (64:ff9b::/96).

Happy Eyeballs v2 (RFC 8305): CPE should not interfere with client-side Happy Eyeballs algorithm operation, ensuring that dual-stack endpoints can rapidly prefer IPv6 when available while falling back to IPv4 seamlessly. Enterprise deployments should validate CPE firmware does not introduce DNS filtering or connection tracking that biases protocol selection.

IPv6-Only Deployments: The End-State Architecture

Forward-looking operators and large enterprises are increasingly targeting IPv6-only CPE deployments, eliminating IPv4 from the access network entirely. In this model, the CPE receives only an IPv6 GUA on its WAN interface, and IPv4 connectivity for legacy applications is provided through NAT64 translation at the 5GC UPF or through a CLAT (Customer-side Translator) function integrated into the CPE itself.

464XLAT (RFC 6877): This architecture combines a CLAT function in the CPE that performs stateless IPv4-to-IPv6 translation (SIIT) with a PLAT (Provider-side Translator) in the operator network that performs stateful NAT64. The CPE’s CLAT function intercepts IPv4 traffic from LAN devices, encapsulates it in IPv6 packets addressed to the PLAT’s NAT64 prefix, and the PLAT completes the translation to public IPv4. This architecture is particularly suited to mobile network operators with large-scale CGNAT infrastructure already in place.

MAP-T and MAP-E (RFC 7597, 7599): Mapping of Address and Port (MAP) technologies provide deterministic, stateless IPv4-over-IPv6 translation that eliminates the stateful NAT bottleneck at the operator core. MAP-T (Translation mode) and MAP-E (Encapsulation mode) are gaining traction in Asian operator deployments where CGNAT capacity planning has become a significant operational concern. CPE supporting MAP must implement Border Relay (BR) client functionality with configurable mapping rules, port-set allocation, and correct handling of ICMP/PMTUD in the translated path.

Enterprise Considerations: Beyond Protocol Support

IPsec and VPN Compatibility: Enterprise CPE commonly terminate IPsec tunnels to headquarters or cloud VPN concentrators. IPv6 transition mechanisms must be validated for IPsec interoperability: IKEv2’s support for IPv6 transport and IPv6-embedded IPsec Security Associations must be confirmed across CPE firmware versions. ESP encapsulation in MAP-E, in particular, can introduce MTU issues requiring careful PMTUD or MSS clamping configuration.

SD-WAN Integration: Many enterprise 5G FWA deployments position the CPE as a WAN edge device within a broader SD-WAN fabric. The CPE’s IPv6 transition mechanism must be compatible with SD-WAN overlay protocols (VXLAN, GRE, IPsec) that may themselves operate over IPv4 or IPv6 underlay networks. Dual-stack CPE provides the greatest SD-WAN deployment flexibility, while 464XLAT and MAP-T/E architectures may require overlay-to-underlay address family translation in the SD-WAN edge.

Application Performance Monitoring: IPv6 transition adds protocol translation hops that can complicate performance monitoring and root-cause analysis. Enterprise-grade CPE should expose per-protocol (IPv4/IPv6) throughput, latency, and session count metrics via SNMP, NETCONF/YANG, or RESTCONF APIs, enabling network operations teams to separately monitor native and translated traffic paths.

Evolving Standards and the Road Ahead

The IETF v6ops working group continues to refine IPv6 transition operational guidance, with RFC 9099 (Operational Security Considerations for IPv6 Networks) and RFC 9386 (IPv6 Deployment Status) providing updated recommendations relevant to CPE design. The Broadband Forum’s TR-124 issue 8 introduces IPv6 transition requirements for 5G residential gateways, specifying mandatory CLAT and 464XLAT support alongside dual-stack and IPv6-only operational modes.

For technical buyers, the key takeaway is clear: 5G CPE procurement specifications must explicitly define IPv6 transition architecture requirements, including preferred mechanism (dual-stack, 464XLAT, MAP-T/E), required prefix delegation behavior, DNS64/NAT64 handling, and VPN/SD-WAN compatibility. CPE that ships with only IPv4 CGNAT support in 2026 is already technically obsolete for any operator or enterprise with a five-year deployment horizon.

Thermal management is one of the most overlooked yet critical design disciplines in 5G CPE engineering. While buyers and operators focus on throughput, band support, and MIMO configuration, the thermal envelope directly determines a device’s sustained performance, outdoor survivability, and total cost of ownership across a multi-year deployment lifecycle. A CPE that throttles under load or fails prematurely due to heat stress undermines the entire FWA business case.

This guide provides a structured framework for technical buyers, procurement managers, and operator engineering teams evaluating 5G CPE thermal design — from passive cooling strategies to industrial-grade enclosure certification.

Why Thermal Design Matters for 5G CPE

5G CPE devices operate under fundamentally different thermal constraints than their 4G predecessors. Several factors contribute to increased heat generation:

Higher Power Amplifier Output. 5G NR, particularly in n77/n78 (3.5 GHz) and n258/n257 (mmWave) bands, requires power amplifiers operating at higher output levels to maintain link budget. Each dB of PA output translates to additional milliwatts of dissipated heat.

Multi-Band Carrier Aggregation. Modern CPE devices simultaneously operate across multiple frequency bands — sub-6 GHz for coverage and mmWave or mid-band for capacity. Each active RF chain contributes to the total thermal load.

Integrated Wi-Fi 6/6E/7 AP. CPE serving as a combined 5G modem and Wi-Fi access point runs two high-performance radios in a single enclosure, essentially doubling the thermal challenge.

Edge Compute Workloads. As CPE devices incorporate AI/ML inference for intelligent traffic steering, predictive maintenance, and local analytics, the SoC runs sustained compute workloads that compound RF-induced heat generation.

The result: a 5G CPE can generate 12–25W of thermal dissipation load in sustained operation, compared to 5–10W for a typical 4G CPE. Without adequate thermal management, device temperature can exceed safe operating limits within 15–30 minutes of sustained full-load operation.

Passive Cooling: The First Line of Defense

For most CPE form factors — particularly indoor desktop and wall-mounted units — passive cooling is the preferred thermal management strategy. It eliminates fan-related failure modes, acoustic noise, and dust ingress, all of which are unacceptable in residential and quiet office environments.

Heat Sink Design

Effective passive cooling starts with the heat sink. Key design parameters include:

– Material Selection: Die-cast aluminum is the industry standard, balancing thermal conductivity (~120–170 W/m·K for common alloys), weight, and manufacturing cost. Premium designs may specify copper inserts for hotspot mitigation at the modem/SoC interface. – Fin Geometry: Fin height, pitch, and orientation must be optimized for the device’s mounting orientation. Wall-mounted CPE benefits from vertically oriented fins that enhance natural convection. Desktop CPE with horizontal orientation requires forced airflow paths or chimney-effect enclosures. – Surface Area: As a rule of thumb, passive cooling requires approximately 30–50 cm² of effective surface area per watt of dissipated heat for a 40°C ambient-to-junction temperature delta. A 20W CPE thus needs 600–1,000 cm² of effective heat sink surface area.

Thermal Interface Materials (TIM)

The gap between the modem/SoC die and the heat sink is a critical thermal bottleneck. High-performance thermal pads or phase-change materials with conductivity above 5 W/m·K are recommended. Gap filler pads must account for component height variance across the PCB — a 0.2mm tolerance stack can increase thermal resistance by 30% if uncompensated.

Enclosure as Heat Sink

Advanced passive designs use the entire CPE enclosure as a thermal dissipation surface. Magnesium-alloy or aluminum chassis bonded to internal heat spreaders distribute heat across the full device surface, eliminating hotspots while maximizing radiative and convective cooling. This approach is particularly effective for slim, wall-mounted indoor CPE where aesthetic constraints limit visible heat sink protrusions.

Outdoor CPE: The Industrial-Grade Challenge

Outdoor CPE — deployed on rooftops, poles, or building exteriors — faces thermal conditions that passive cooling alone cannot always handle. These devices must operate reliably across an ambient temperature range of -40°C to +55°C, with direct solar radiation adding 15–25°C of effective thermal load during peak sun exposure.

IP-Rated Enclosures with Thermal Management

The ingress protection (IP) rating fundamentally constrains thermal design. An IP67 or IP68 enclosure is sealed against dust and water — which also means zero natural airflow. Every watt of heat must be conducted through the enclosure walls. This creates a design tension between environmental sealing and thermal dissipation that requires careful engineering:

– Dual-Chamber Architecture: Some outdoor CPE designs separate the sealed electronics chamber from a vented heat exchanger chamber with Gore-Tex membranes that allow pressure equalization and limited vapor transmission without compromising IP rating. – Die-Cast Enclosure with Integrated Fins: The enclosure itself becomes the primary heat sink. Thick-walled die-cast aluminum bodies with external fins maximize surface area while maintaining structural integrity and IP compliance. – Solar Radiation Mitigation: Light-colored or reflective enclosure finishes reduce solar absorption. A white or light-gray powder-coated surface can reduce solar gain by 40–60% compared to dark-colored or bare metal enclosures.

Sun Shield and Mounting Considerations

Outdoor CPE mounting accessories contribute significantly to thermal performance:

– A sun shield or visor above the CPE enclosure blocks direct solar radiation during peak hours, reducing internal temperature rise by 10–15°C. – Pole-mount brackets should include a thermal standoff gap (minimum 10mm) between the enclosure and the mounting surface to maintain convection airflow on all sides. – Orientation matters: vertical mounting with fins aligned to the prevailing wind direction improves cooling by up to 25% compared to horizontal orientations.

Active Cooling: When Fans Are Necessary

In extreme thermal environments — high ambient temperature combined with sustained full-load operation — passive cooling may be insufficient. Active fan-based cooling introduces moving parts but can dramatically increase heat dissipation capacity.

Fan Selection and Reliability

For CPE applications, fan selection criteria differ from consumer electronics:

– MTBF (Mean Time Between Failures): Industrial-grade fans rated for 70,000–100,000 hours at 40°C are minimum requirements for operator-grade outdoor CPE. Consumer-grade fans (30,000–50,000 hours) are unacceptable for multi-year outdoor deployments. – Dual-Ball vs. Sleeve Bearings: Dual-ball bearing fans maintain performance across wide temperature ranges and tolerate mounting in any orientation. Sleeve-bearing fans degrade rapidly when mounted vertically and are not recommended for outdoor CPE. – Fan Speed Control: PWM-controlled, temperature-regulated fan curves balance cooling with acoustic noise and power consumption. A smart fan controller can reduce fan duty cycle below 20% during idle/low-load conditions, extending fan life and reducing dust accumulation.

Hybrid Passive-Active Designs

The optimal approach for demanding outdoor deployments is a hybrid design: passive cooling handles normal operation, and a temperature-controlled fan activates only when the internal junction temperature exceeds a threshold (typically 65–70°C). This minimizes fan runtime — often to less than 5% of total operating hours in temperate climates — while providing thermal headroom for extreme conditions.

Thermal Testing and Validation Standards

Technical buyers should verify that CPE vendors have subjected their designs to rigorous thermal validation:

– IEC 60068-2 Environmental Testing: Thermal cycling (-40°C to +85°C, minimum 100 cycles), damp heat (85°C/85% RH, 1,000 hours), and thermal shock testing. – Soak Testing: Sustained operation at maximum ambient temperature (typically +55°C) with full RF and compute load for a minimum of 72 continuous hours with zero throttling events. – Solar Load Simulation: IEC 60068-2-5 procedures for solar radiation testing, simulating 1,120 W/m² irradiance.

Evaluation Checklist for Buyers

When assessing 5G CPE thermal design, request the following from vendors:

1. Thermal simulation reports showing junction temperatures for CPU, modem, PA, and Wi-Fi chipset under worst-case conditions (max ambient + full load).
2. Throttling policy documentation: At what temperature does the device begin reducing TX power, MIMO layers, or carrier aggregation? What is the recovery behavior?
3. Enclosure material and finish specifications, including solar absorptivity index for outdoor models.
4. IP rating certification from an accredited test laboratory — not self-declared.
5. Fan MTBF certification and fan replacement procedures if active cooling is used.
6. Field failure data from comparable deployments in similar climate zones.

The Bottom Line

Thermal management is not a secondary concern — it is a first-order determinant of CPE reliability and operator satisfaction. A device that handles heat well will deliver consistent throughput, survive harsh outdoor environments, and minimize field replacement costs over a 5–7 year deployment lifetime. At Honlly Telecom, our 5G CPE designs incorporate industrial-grade passive cooling architectures, IP67-rated enclosures, and hybrid thermal solutions validated to the most demanding operator specifications. Contact our engineering team to discuss thermal requirements for your next FWA deployment.

Carrier aggregation (CA) is the engine that transforms 5G from a single-band connectivity solution into a multi-gigabit wireless broadband platform. For operators deploying Fixed Wireless Access at scale, the CPE’s CA capabilities directly determine peak and average throughput, cell-edge performance, and the efficient utilization of fragmented spectrum assets. This guide provides a structured evaluation framework for technical buyers assessing 5G CPE carrier aggregation architecture, Dynamic Spectrum Sharing (DSS) integration, and real-world throughput optimization strategies.

The Carrier Aggregation Landscape in 5G NR

5G NR carrier aggregation differs fundamentally from LTE CA in both scale and flexibility. Release 15 introduced a baseline of up to 16 component carriers (CCs) with a maximum aggregated bandwidth of approximately 1 GHz in Frequency Range 2 (FR2, mmWave). Release 16 and 17 expanded intra-band and inter-band CA combinations, while Release 18 (5G-Advanced) introduces enhanced cross-carrier scheduling and AI-assisted carrier selection.

Current CA Configurations Relevant to FWA CPE

For sub-6 GHz FWA deployments, the most commercially relevant CA configurations include:

| Configuration | Component Carriers | Aggregate BW | Peak DL Throughput (4×4 MIMO) | |—————|——————-|————-|——————————-| | n77 + n78 Intra-band | 2–4 CCs | 200–400 MHz | 3.4–6.8 Gbps | | n77 + n78 + n79 | 3–6 CCs | 300–600 MHz | 5.1–10.2 Gbps | | n1 + n3 + n78 | 3 CCs | 110–190 MHz | 1.9–3.2 Gbps | | n28 + n78 (Low+Mid) | 2 CCs | 130–170 MHz | 2.2–2.9 Gbps | | n258 + n257 (mmWave) | 4–8 CCs | 400–800 MHz | 6.8–13.6 Gbps |

The practical throughput numbers depend on modulation order (256QAM vs. 64QAM), MIMO layers, and coding rate. Buyers should request vendor-validated throughput figures at specific signal conditions rather than relying on theoretical peak rates.

Inter-Band vs. Intra-Band CA: Architecture Trade-offs

Intra-Band Contiguous CA

When an operator holds contiguous spectrum within a single band (e.g., 100 MHz + 60 MHz within n78), intra-band contiguous CA is the simplest configuration. A single RF chain and power amplifier can cover the entire bandwidth, minimizing component count, cost, and power consumption. CPE supporting intra-band contiguous CA typically achieves the highest power efficiency and lowest cost-per-Mbps.

Intra-Band Non-Contiguous CA

Non-contiguous intra-band CA addresses the common scenario where an operator’s spectrum within a band is fragmented — for example, 80 MHz + 40 MHz separated by a 20 MHz gap held by another operator. This requires a wider RF front-end or dual receive paths within the same band, increasing component complexity but enabling aggregation of otherwise stranded spectrum assets.

Inter-Band CA

Inter-band CA combines carriers across different frequency bands — most commonly low-band (n28, 700 MHz for coverage) with mid-band (n78, 3.5 GHz for capacity). This configuration requires multiple RF chains, separate antennas or a wideband antenna array, and more sophisticated baseband processing for cross-band scheduling. The value is significant: low-band carriers provide reliable control-plane coverage and uplink performance, while mid-band carriers deliver downlink throughput.

For FWA CPE deployed in suburban and rural environments, inter-band CA combining sub-1 GHz coverage bands with 3.5 GHz capacity bands is often the most impactful configuration for balancing reach and speed.

Dynamic Spectrum Sharing (DSS)

DSS enables operators to simultaneously operate LTE and 5G NR in the same frequency band by dynamically allocating resource blocks between the two technologies on a millisecond timescale. For CPE buyers, DSS support is particularly relevant in markets where operators are refarming 4G spectrum for 5G rather than deploying on greenfield spectrum.

How DSS Affects CPE Design

From the CPE perspective, DSS is largely transparent at the physical layer — the device receives scheduling grants and demodulates the allocated resource blocks regardless of whether adjacent blocks carry LTE or NR traffic. However, two CPE features significantly impact DSS performance:

1. DSS-Aware Rate Matching: The CPE modem must correctly interpret LTE Cell-Specific Reference Signal (CRS) rate matching patterns from the gNB to avoid demodulation errors on resource elements shared with LTE. CPE chipsets with DSS-optimized baseband processing achieve 5–15% higher throughput in DSS scenarios compared to basic implementations.

2. MBSFN Subframe Awareness: In DSS deployments where LTE uses MBSFN subframes to free resources for NR, the CPE must handle the dynamic subframe configuration changes without connection drops. Field testing has shown that some early 5G CPE implementations experience intermittent connectivity in aggressive DSS configurations — buyers should verify DSS interoperability with their specific operator’s LTE/NR resource allocation scheme.

CA Combination Validation: What Buyers Must Verify

Not all CA combinations listed in modem datasheets are commercially viable. 3GPP specifications define hundreds of possible CA combinations, but practical implementation is constrained by:

RF Front-End Complexity. Each additional CC adds filters, LNAs, and switching networks. A CPE supporting 6-way CA may require 12+ discrete RF filters, each adding insertion loss, cost, and PCB area. The gap between “chipset-capable” and “product-implemented” CA combinations can be significant.

Coexistence and Desense. Multiple simultaneously active receivers operating across wide frequency separations (e.g., n28 at 700 MHz and n78 at 3.5 GHz) risk self-interference from harmonics, intermodulation products, and local oscillator leakage. Effective RF shielding, PCB isolation, and filtering are essential but add cost and physical volume.

Antenna Isolation. Multiple antenna elements supporting different bands require sufficient isolation to avoid coupling. For FWA CPE with integrated antennas, achieving >15 dB of inter-band isolation in a compact form factor is a significant RF engineering challenge.

Power and Thermal Budget. Each additional active receive path adds 0.5–2W to the power budget. CPE designs that claim extensive CA support on paper may throttle CA combinations under thermal load. Buyers should request sustained throughput data (not peak burst rates) at maximum ambient temperature.

Buyer Verification Protocol

When evaluating a CPE’s CA claims, request:

1. A complete CA combination list with per-combination validated throughput (not chipset theoretical maximums).
2. Sustained throughput stability data — 24-hour throughput logs at maximum CA configuration, with zero throttling events.
3. Band-specific RSSI-to-throughput mapping showing performance degradation curves as signal strength decreases.
4. DSS interoperability test reports with the target operator’s specific NR/LTE resource allocation configuration.
5. Thermal performance at maximum CA configuration — junction temperatures and any throttling triggers.

CA and Spectrum Strategy: Aligning CPE with Operator Roadmaps

Operators should evaluate CPE CA capabilities against their mid-term spectrum strategy (3–5 year horizon), not just the current spectrum portfolio. Key considerations:

Refarming Timelines

If an operator plans to refarm 3G (2100 MHz) or 4G (1800 MHz, 2600 MHz) spectrum for 5G NR within the CPE deployment lifecycle, the device must support those band additions. CPE with software-defined radio (SDR) architectures offer future-proofing advantages — new bands can be added via firmware update rather than hardware replacement.

5G-Advanced CA Enhancements

Release 18 introduces several CA-related enhancements that will arrive in CPE chipsets from late 2026:

– Cross-Carrier Scheduling with Single DCI: Reducing control channel overhead by scheduling multiple carriers with a single downlink control information message. – AI/ML-Based Carrier Selection: Network-side AI models predict optimal carrier combinations per-UE based on load, interference, and mobility patterns. – Supplementary Uplink (SUL) Enhancements: Aggregating low-band uplink with mid-band downlink to improve uplink coverage in time-division duplex (TDD) deployments, critical for video conferencing and cloud upload use cases.

Buyers procuring CPE for 2027–2028 deployments should prioritize Release 18-capable platforms to capture these efficiency gains.

Cost vs. CA Capability: Finding the Right Tier

Not every FWA deployment requires maximum CA. Segmenting CPE specifications by use case optimizes procurement cost:

| Deployment Tier | Recommended CA | Target Throughput | Typical Cost Delta | |—————-|—————-|——————-|——————-| | Entry / Rural | 2× CA (Low+Mid) | 100–300 Mbps | Baseline | | Standard Suburban | 3–4× CA (Mid-band) | 500 Mbps–1 Gbps | +15–25% | | Premium Urban | 4–6× CA (Mid+mmWave) | 1–3 Gbps | +35–60% | | Enterprise / SMB | 6–8× CA (Full FR1+FR2) | 3–10 Gbps | +60–120% |

The cost deltas include RF front-end, antenna, thermal, and baseband processing overhead. For operators serving diverse geographic markets, a tiered CPE portfolio — rather than a single “maximum CA” SKU — typically delivers the best ROI.

Practical Throughput Expectations

Buyers should calibrate expectations around real-world throughput. In field conditions, even well-designed CA implementations deliver 50–70% of theoretical peak rates due to:

– Signal-to-Noise Ratio (SNR) degradation at cell edge – Network loading (shared spectrum among multiple UEs) – Backhaul constraints at the gNB – Transport-layer overhead (UDP/TCP headers, retransmissions) – Wi-Fi bridging losses for CPE operating as an AP

A CPE rated for 5 Gbps peak CA throughput should be expected to deliver 2–3.5 Gbps in typical suburban deployment conditions and 1–2 Gbps at the cell edge. These are still transformative speeds for FWA — enabling multi-user 4K streaming, cloud gaming, and business-grade VPN performance — but realistic expectations prevent deployment disappointments.

Conclusion

Carrier aggregation is the defining performance feature of 5G FWA CPE. The difference between a well-executed CA architecture and a checklist-driven implementation can be a 2× gap in real-world throughput, coverage, and operator satisfaction. Technical buyers should move beyond counting component carriers and rigorously evaluate sustained performance, thermal behavior, DSS interoperability, and alignment with operator spectrum roadmaps.

At Honlly Telecom, our 5G CPE portfolio spans entry-level 2× CA devices to premium 8× CA multi-gigabit platforms, all validated through extensive field testing with Tier-1 operators across Asia, Europe, and the Middle East. Contact our product team for detailed CA combination lists, throughput validation reports, and deployment case studies tailored to your spectrum environment.

As 5G networks mature beyond flagship smartphones and high-performance FWA, the ecosystem is turning its attention to a vast middle ground of use cases that require more than LTE-M or NB-IoT can deliver, yet do not justify the cost and complexity of full-specification 5G NR devices. Enter 5G NR RedCap (Reduced Capability), standardized in 3GPP Release 17 and enhanced in Release 18, which defines a device class optimized for mid-tier IoT, industrial wireless sensors, surveillance cameras, and wearable ecosystems. This guide provides technical buyers with a detailed framework for evaluating RedCap CPE and terminal solutions.

What 5G NR RedCap Actually Reduces—and What It Preserves

RedCap is not simply “5G-lite.” It is a carefully engineered device simplification that targets a specific performance envelope while preserving core 5G NR capabilities that differentiate it from LTE-based IoT technologies. The key reductions relative to full-spec NR devices (FR1) include:

• Reduced Bandwidth: Maximum 20 MHz in FR1 (vs. 100 MHz for full NR), with mandatory support for 5 MHz and optional 10 MHz configurations. This simplification reduces RF front-end complexity, ADC/DAC requirements, and baseband processing demands significantly.
• Reduced Antenna Configuration: 1 Rx or 2 Rx branches (vs. mandatory 4 Rx for full NR FR1). For many industrial sensor and wearable applications, 1 Rx is sufficient, though 2 Rx is recommended for FWA-type RedCap CPE to support basic receive diversity.
• Half-Duplex FDD Support: Optional half-duplex FDD operation, eliminating the need for duplex filters and further reducing component count and cost for devices that can tolerate non-simultaneous transmission and reception.
• Relaxed Processing Timeline: Extended processing timelines that reduce baseband computational requirements, enabling lower-cost modem silicon without compromising reliability.

Critically, RedCap preserves: 5G NR waveform and numerology (OFDM with flexible subcarrier spacing); network slicing support (URSP); 5G core network integration; 5G security architecture (SUPI concealment, 5G-AKA, EAP-AKA’); and positioning enhancements. These retained capabilities mean RedCap devices are first-class citizens on the 5G network, not a separate IoT overlay.

RedCap vs. eRedCap: The Release 18 Expansion

3GPP Release 18 introduced “eRedCap” (enhanced RedCap), which further narrows the device complexity gap toward LTE Cat-1/Cat-4 territory while remaining within the 5G NR framework. eRedCap targets peak data rates of approximately 10 Mbps—similar to LTE Cat-1 bis but with 5G-native network integration benefits.

Key eRedCap features include: mandatory 5 MHz bandwidth support (10 MHz maximum, 5 MHz minimum for FR1); further reduced peak data rates through transport block size limitations and relaxed MIMO layer counts; and optional support for device-specific bandwidth part (BWP) configurations that allow the network to schedule RedCap devices within a narrower portion of the carrier bandwidth while full NR devices use the entire carrier.

For CPE and terminal buyers, the RedCap/eRedCap continuum creates a device hierarchy that maps cleanly to specific use cases: standard RedCap for fixed wireless sensors, industrial cameras, and gateways requiring 50–150 Mbps; eRedCap for wearable devices, asset trackers, and environmental sensors needing 5–10 Mbps with minimal power consumption and lowest possible BOM cost.

RedCap CPE Architecture: System Design Considerations

Designing a RedCap CPE or terminal requires a fundamentally different approach than downsizing a full-spec 5G CPE. The optimizations are architectural, not merely subtractive:

Modem Selection: The Qualcomm Snapdragon X35 5G Modem-RF system, announced in early 2023 and now shipping in volume, was purpose-built for RedCap rather than derived from a full NR platform. Competing solutions from MediaTek (T300 series) and UNISOC are also reaching production maturity. Purpose-built RedCap modems offer 40–60% lower power consumption and 30–50% smaller PCB footprint compared to full NR modems configured in reduced mode.

RF Front-End Simplification: The 20 MHz bandwidth limit means the RF front-end can use narrower-band LNAs and PAs with relaxed linearity requirements, surface acoustic wave (SAW) filters instead of bulk acoustic wave (BAW) filters in many bands, and simplified antenna switch modules. This contributes to a BOM cost reduction of approximately 35–50% compared to full-spec 5G CPE RF front-ends.

Power Architecture: RedCap devices targeting battery-powered or energy-harvesting operation can leverage 3GPP Release 17 power-saving enhancements including: extended Discontinuous Reception (eDRX) with significantly longer sleep cycles than LTE-M; Radio Resource Management (RRM) relaxation for stationary devices to reduce measurement overhead; and Paging Early Indication (PEI) to skip unnecessary PDCCH monitoring.

Thermal Design: Lower baseband processing complexity and reduced RF power translate to approximately 50–70% lower thermal output compared to full NR CPE, enabling fanless, sealed industrial enclosures suitable for harsh outdoor and factory-floor environments where active cooling is prohibited.

Use Case Deep Dive: Industrial Wireless Sensor Networks

One of the most compelling RedCap CPE applications is as an aggregation gateway for industrial wireless sensor networks in smart manufacturing environments. In this architecture, a RedCap CPE serves as the 5G backhaul endpoint for an on-premise sensor mesh (e.g., IO-Link Wireless, WirelessHART, or proprietary ISM-band sensor protocols), providing a managed bridge between the factory sensor layer and the 5G core network.

The RedCap CPE in this role requires: industrial protocol conversion capability (Modbus TCP, PROFINET, EtherNet/IP to 5G data plane); deterministic latency guarantees via 5G network slicing and TSN (Time-Sensitive Networking) integration; ruggedized IP65 or higher enclosure with M12 connectors for industrial power and Ethernet; and support for IEEE 802.1CB Frame Replication and Elimination for Reliability (FRER) for ultra-reliable low-latency applications.

The economic case is compelling: a RedCap-based sensor gateway at approximately 40% of the cost of a full-spec 5G industrial CPE, with sufficient throughput for aggregating hundreds of sensor streams at typical industrial data rates of 1–10 Mbps total backhaul traffic.

Procurement Considerations for RedCap CPE

Technical buyers evaluating RedCap 5G CPE should address the following decision points:

• Band Support: Confirm RedCap band support aligns with deployment regions. While full NR devices support dozens of bands, RedCap devices typically support a targeted subset (Bands n1, n3, n5, n7, n8, n28, n38, n40, n41, n77, n78, n79). Verify specific band combinations with carrier aggregation support if required for throughput targets.
• Rx Diversity: For fixed wireless sensor gateways with challenging RF environments (basements, metal enclosures, factory floors), specify minimum 2 Rx for basic receive diversity. Single Rx configurations are acceptable for outdoor pole-mounted units with line-of-sight to the cell site.
• Network Slicing: URSP (UE Route Selection Policy) support is mandatory for industrial RedCap CPE to ensure traffic separation between critical control plane data and bulk telemetry. Verify the modem and device firmware support URSP rules with at least 8 concurrent PDU session support.
• Positioning: For asset tracking and logistics applications, verify support for 5G NR positioning methods (DL-TDOA, UL-TDOA, Multi-RTT) available in Release 17/18, with sub-meter accuracy targets for indoor deployments.
• Certification Roadmap: RedCap device certification through GCF/PTCRB is still maturing. Confirm that target operator(s) have completed RedCap network feature verification and that the device vendor has a clear certification timeline with committed conformance test coverage.
• eRedCap Migration Path: For deployments planning volume scaling over 3–5 years, evaluate whether the CPE platform supports a pin-compatible upgrade to eRedCap modems as the technology matures and use cases evolve toward lower data rates and power consumption profiles.

Market Outlook and Ecosystem Maturity

The RedCap ecosystem is crossing the chasm from early-adopter trials to commercial scale in H2 2026. Operator support has expanded rapidly: China Mobile, China Telecom, and China Unicom have all completed RedCap commercial network verification and launched RedCap-specific data plans; AT&T and T-Mobile US are conducting enterprise trials with industrial and logistics customers; and major European operators including Deutsche Telekom, Vodafone, and BT/EE have activated RedCap on a portion of their 5G SA networks.

ABI Research forecasts that RedCap/eRedCap device shipments will reach 85 million units annually by 2028, with industrial IoT and fixed wireless sensor gateways representing the largest single segment at approximately 40% of volume. The CPE and terminal segment within RedCap is projected to grow from approximately 1.2 million units in 2026 to over 8 million units by 2029.

For procurement organizations planning mid-tier IoT and industrial connectivity strategies, 2026 H2 represents the inflection point where RedCap CPE transitions from technology evaluation to deployment-ready procurement. The devices shipping today are purpose-built, carrier-certified, and economically viable—the key remaining question is ecosystem scale, not technical readiness.

As 5G FWA deployments scale across multiple operators and geographies, the SIM architecture embedded within CPE devices has evolved from a simple authentication token into a strategic enabler of deployment flexibility, operational efficiency, and long-term lifecycle management. This technical buyer’s guide examines the eSIM and Multi-IMSI architectures now being integrated into enterprise-grade 5G CPE platforms, providing procurement teams with the technical framework needed to evaluate solutions for multi-operator, multi-region, and future-proof FWA deployments.

The Evolution from Physical SIM to eSIM in CPE

Traditional 5G CPE devices relied on removable UICC (Universal Integrated Circuit Card) formats—typically 2FF (Mini-SIM) or 4FF (Nano-SIM) physical cards. While functional, this approach introduced significant operational friction: truck rolls for SIM swaps during operator changes, physical SIM inventory management across distribution channels, vulnerability to theft and tampering, and limited ability to dynamically re-provision connectivity profiles in response to network conditions or commercial agreements.

The GSMA’s eSIM specifications—particularly GSMA SGP.02 (M2M) and SGP.22 (Consumer) architectures—have matured to address these pain points for CPE deployments. An eSIM (embedded UICC or eUICC) is a soldered, non-removable SIM chip that supports remote SIM provisioning (RSP), enabling operators to download, enable, disable, and delete operator profiles over-the-air without physical access to the device.

The SGP.22 Consumer architecture, originally designed for smartphones and wearables, has proven particularly suitable for 5G CPE. It supports a “pull” model where the device initiates profile download via an SM-DP+ (Subscription Manager – Data Preparation+) server, activated through a QR code or activation code delivered via the operator’s mobile app or web portal. This consumer-friendly activation flow is increasingly adopted for residential FWA CPE, enabling self-install and zero-touch provisioning.

For enterprise and industrial CPE deployments, the SGP.02 M2M architecture offers a “push” model where profiles are provisioned remotely by the operator via an SM-DP (Subscription Manager – Data Preparation) server, with minimal end-user interaction. This architecture supports bulk provisioning, scheduled profile switching, and integration with operator OSS/BSS systems—critical capabilities for deployments with thousands of distributed CPE endpoints.

Multi-IMSI Architecture: Operational Flexibility for Roaming and Multi-Operator Deployments

While eSIM enables remote profile management, Multi-IMSI (Multiple International Mobile Subscriber Identity) architecture extends the concept by allowing a single device to hold multiple active operator profiles simultaneously, with intelligent switching logic that selects the optimal profile based on configurable policies.

A Multi-IMSI 5G CPE typically integrates a eUICC with support for multiple IMSI/applet combinations, managed through a SIM applet framework running on the UICC’s Java Card platform. The device maintains several operator profiles—each containing its own IMSI, authentication keys (Ki), OPC, and network parameters—with an applet that monitors network availability and switches active profiles based on rules such as:

• Geographic Location: Automatically select the home network profile when on the home PLMN, switch to a roaming partner profile when abroad to achieve local-rate data pricing
• Network Quality: Switch to an alternate operator profile if the primary network’s signal quality or throughput falls below defined thresholds
• Time-Based Scheduling: Use a specific operator profile during business hours for guaranteed SLA performance, switch to a lower-cost profile outside peak hours
• Application-Based Steering: Route critical enterprise traffic through one operator while offloading bulk data to another

This Multi-IMSI capability is particularly valuable for: cross-border deployments where a single CPE model must operate across multiple countries; maritime and logistics applications where vessels and containers traverse multiple territorial waters; and enterprise branch offices requiring redundant WAN connectivity with automatic failover between operators.

GSMA eSIM Compliance and Certification Considerations

Procurement teams evaluating eSIM-enabled 5G CPE should verify compliance with the relevant GSMA specifications based on deployment use case:

• SGP.02 v4.2: M2M eSIM architecture with push-based provisioning; required for enterprise/industrial CPE managed through operator OSS/BSS platforms
• SGP.22 v3.0: Consumer eSIM architecture with pull-based provisioning; suitable for residential and SOHO CPE with end-user self-activation
• SGP.32 v1.0: IoT eSIM specification; increasingly relevant for massive IoT deployments with constrained devices and LPWA connectivity

GSMA SAS (Security Accreditation Scheme) certification for the eUICC manufacturer and SM-DP+ provider is essential. SAS-UP (UICC Production) certifies the secure manufacturing and personalization process for eUICCs, while SAS-SM (Subscription Management) certifies the security of the RSP platform infrastructure. Devices integrating non-certified eSIM components face interoperability risks and potential operator rejection during certification.

Security Architecture: Mutual Authentication and Profile Isolation

The eSIM security model builds on the proven 3GPP AKA (Authentication and Key Agreement) framework while adding eUICC-specific protections. Key security considerations include:

ISD-R (Issuer Security Domain – Root): The root security domain on the eUICC, managed by the eUICC manufacturer (EUM), responsible for creating and managing ISD-Ps (Issuer Security Domain – Profiles). The ISD-R private key never leaves the eUICC secure element, ensuring that only authorized entities can manage profiles.

Profile Interlock and Isolation: Each operator profile operates within its own ISD-P, providing cryptographic isolation between profiles. One operator’s profile cannot access another’s credentials or network parameters. This is critical for scenarios where the CPE may switch between competing operators.

CI (Certificate Issuer) Trust Chain: GSMA’s Certificate Issuer root of trust ensures that only authenticated SM-DP+ servers can communicate with the eUICC for profile operations. Buyers should confirm that the eUICC vendor participates in the GSMA CI program and supports the latest ECC (Elliptic Curve Cryptography) key algorithms in addition to legacy RSA.

Integration with 5G CPE Platform Architecture

From a system integration perspective, the eSIM/Multi-IMSI subsystem must interface with several CPE platform components:

• Modem Baseband: The modem must support eUICC ISO 7816 interface or SPI-based eUICC connections, with modem firmware capable of hot-swapping IMSI/applet sessions without requiring a full modem reset—a non-trivial requirement that varies significantly between modem vendors
• Device Management Client: Integration with TR-369 USP or LwM2M device management agents to enable remote profile management operations through standardized APIs, including profile enable/disable, profile list query, and profile download initiation
• Local Management UI/API: A web GUI or mobile app interface for end-users or field technicians to initiate profile downloads (e.g., scan a QR code), view active profile information, and manage basic eSIM settings

Procurement Checklist for eSIM/Multi-IMSI 5G CPE

When evaluating 5G CPE solutions with eSIM and Multi-IMSI capabilities, technical buyers should verify the following specifications:

• eUICC compliance: GSMA SGP.02 and/or SGP.22 certified, with SAS-UP accreditation
• Number of simultaneously stored operator profiles: minimum 3 profiles for Multi-IMSI use cases; 5+ preferred for global deployments
• Profile switching time: target under 30 seconds for seamless failover; modem vendors’ support for hot-swap without full baseband re-initialization should be confirmed
• RSP platform interoperability: verified against major SM-DP+ providers (IDEMIA, G+D, Thales, Kigen, Valid) used by target operators
• Fallback physical SIM slot: dual-SIM architecture with one eSIM and one physical SIM slot provides maximum deployment flexibility during eSIM ecosystem transition periods
• Remote management API compliance: TR-369 USP or equivalent for operator-managed profile operations
• Security certification: CC EAL4+ or higher for eUICC secure element; GSMA SAS-SM for the RSP infrastructure

The transition to eSIM and Multi-IMSI architectures in 5G CPE represents a foundational shift in how connectivity is provisioned, managed, and monetized. For operators and enterprises deploying FWA at scale, selecting the right SIM architecture today will determine deployment agility, operational cost structure, and vendor flexibility for years to come.

Network timing and synchronization is one of the most underappreciated yet critical aspects of 5G CPE design and procurement. In Time Division Duplex (TDD) networks — which constitute the vast majority of global 5G NR deployments — all base stations and connected CPE devices must maintain tightly synchronized time alignment to avoid inter-symbol interference, guard period violations, and catastrophic cross-link interference. For technical buyers evaluating 5G CPE for carrier-grade FWA deployments, understanding the synchronization architecture inside the device is essential to ensuring reliable operation, regulatory compliance, and future-proof network integration.

Why Timing Matters in 5G TDD CPE

5G NR TDD networks operate on a shared frequency channel where uplink and downlink transmissions are separated in time rather than frequency. This requires all devices in a given cell — base stations and CPE alike — to agree on a common time reference with microsecond-level precision. The 3GPP TS 38.133 specification defines stringent timing requirements for CPE devices, including:

• Cell phase synchronization accuracy: ±1.5 µs relative to the serving cell’s phase reference for wide-area base stations (Category A).
• Transmit timing adjustment: CPE must adjust its uplink transmission timing based on Timing Advance (TA) commands from the gNB with step sizes of 0.52 µs for FR1 and sub-carrier spacing-dependent granularity for FR2.
• Frequency accuracy: ±0.1 ppm for wide-area base stations and ±0.2 ppm for local-area/home base stations over a 1 ms observation period.
• Holdover performance: In the event of GNSS signal loss, the CPE’s internal oscillator must maintain timing accuracy within 1.5 µs for at least 24 hours (ITU-T G.8272 PRTC Class B requirement).

Failure to meet these requirements results in degraded network performance — increased block error rate (BLER), reduced spectral efficiency, and in severe cases, complete service disruption as interfering uplink transmissions bleed into adjacent downlink slots. For operators managing tens of thousands of CPE devices across a TDD network, timing synchronization is not optional; it is foundational.

IEEE 1588v2 Precision Time Protocol (PTP) in 5G CPE

IEEE 1588v2 Precision Time Protocol has emerged as the primary packet-based synchronization mechanism for 5G transport networks and is increasingly implemented at the CPE level. In a 5G FWA architecture, PTP operates in the telecom profile defined by ITU-T G.8275.1 (full timing support) and G.8275.2 (partial timing support), delivering sub-microsecond synchronization accuracy over packet-switched backhaul networks.

Key PTP implementation considerations for CPE buyers include:

PTP Profile Support

Enterprise and carrier-grade CPE should support both G.8275.1 (multicast PTP over Ethernet with boundary clock functionality at each network hop) and G.8275.2 (unicast PTP with assistance information, designed for networks where not every intermediate node is PTP-aware). The ability to operate as an ordinary clock (OC) in G.8275.1 mode or as a PTP telecom slave clock (T-TSC) in G.8275.2 mode provides deployment flexibility across different operator network architectures.

Hardware Timestamping

Software-based PTP implementations introduce jitter on the order of tens to hundreds of microseconds, which is unacceptable for 5G TDD synchronization. CPE devices must implement hardware timestamping at the Ethernet PHY or MAC layer to achieve the required nanosecond-level precision. Look for devices explicitly documenting IEEE 1588v2 hardware timestamping support in their chipset specifications — typically implemented in the Ethernet switch or PHY silicon rather than in software on the application processor.

One-Step vs. Two-Step Clock Modes

One-step clocks embed the egress timestamp directly into the Sync message as it departs, reducing protocol overhead and improving accuracy at high message rates. Two-step clocks send the timestamp in a separate Follow_Up message. While two-step is more common in existing deployments, one-step mode is preferred for 5G CPE due to reduced processing latency and simpler implementation in Transparent Clock (TC) network elements.

Message Rates and Announce Intervals

Standard PTP Sync message rates for telecom applications range from 16 to 128 messages per second. Higher rates improve timing accuracy at the cost of increased CPU and network overhead. CPE should support configurable message rates to match operator-specific network engineering guidelines. The Announce interval (typically 1–2 seconds) determines how frequently the PTP grandmaster identity and clock quality are communicated, affecting failover behavior in redundant grandmaster deployments.

Synchronous Ethernet (SyncE): Frequency Synchronization at the Physical Layer

Synchronous Ethernet (SyncE), standardized in ITU-T G.8261, G.8262, and G.8264, provides physical-layer frequency synchronization by recovering a precision clock from the Ethernet line signal — analogous to how traditional SDH/SONET networks distribute timing. In 5G CPE, SyncE serves as a complementary mechanism to PTP, providing highly stable frequency synchronization that enhances PTP phase accuracy and extends holdover performance.

For technical evaluation, CPE SyncE capability should include:

• G.8262 Synchronous Ethernet Equipment Clock (EEC) compliance: Option 1 (EEC-Option 1) for 2048 kbit/s hierarchy or Option 2 (EEC-Option 2) for 1544 kbit/s hierarchy, supporting wander generation, tolerance, and transfer specifications.
• Ethernet Synchronization Messaging Channel (ESMC): G.8264-defined protocol for communicating Synchronization Status Messages (SSM) that convey clock quality levels (QL) across the SyncE chain, enabling automatic clock selection and protection switching.
• Hybrid SyncE + PTP operation: The ability to use SyncE for frequency distribution while PTP handles phase/time alignment, combining the best attributes of each technology. This hybrid mode is increasingly specified in operator RFPs for dense urban FWA deployments where GNSS signal availability is compromised.

GNSS-Disciplined Oscillator Design

For outdoor CPE and enterprise-grade gateways, an integrated GNSS receiver with a disciplined oscillator provides an autonomous time and frequency reference independent of network-based synchronization. This is particularly valuable in TDD networks where GNSS serves as the Primary Reference Time Clock (PRTC) per ITU-T G.8272.

Key GNSS subsystem evaluation criteria:

Multi-Constellation Support

Modern CPE should support at least GPS (L1 C/A) and one or more additional constellations — GLONASS (L1), BeiDou (B1I), or Galileo (E1) — to improve satellite visibility, time-to-first-fix (TTFF), and resilience against single-constellation outages. Multi-band support (L1/L2 or L1/L5) further improves accuracy by enabling ionospheric error correction, though it increases BOM cost and power consumption.

Oscillator Types and Holdover Performance

The oscillator technology directly determines GNSS holdover capability:

• TCXO (Temperature-Compensated Crystal Oscillator): Basic holdover of 1–10 µs over 4–8 hours. Suitable for indoor CPE where GNSS is not the primary timing source. Cost: low.
• OCXO (Oven-Controlled Crystal Oscillator): Holdover of 1.5 µs over 24–72 hours, meeting PRTC Class B requirements. The industry standard for outdoor CPE and carrier-grade FWA devices. Cost: moderate.
• Miniature Atomic Clock (MAC) / Chip-Scale Atomic Clock (CSAC): Holdover of 1 µs over 7+ days. Emerging technology for mission-critical and remote deployments. Cost: high, but decreasing as manufacturing scales.

For most operator FWA deployments, an OCXO-based GNSS-disciplined oscillator provides the optimal balance of performance, cost, and power consumption. Buyers should verify that the CPE’s holdover specification is validated against ITU-T G.8272 PRTC Class B requirements under temperature cycling (−20°C to +60°C), as laboratory bench measurements at constant temperature do not represent field conditions.

GNSS Antenna Considerations

Outdoor CPE must include a dedicated GNSS antenna port (typically SMA or N-type connector) supporting active antennas with 3–5 V DC bias and 20–40 dB gain. The antenna should provide right-hand circular polarization (RHCP) with an axial ratio below 3 dB for reliable multi-constellation reception. For installations in urban canyons or high-rise environments, the CPE should support multi-path mitigation algorithms and advanced signal processing to maintain timing lock under degraded sky-view conditions.

Practical Procurement: Evaluation Checklist

When evaluating 5G CPE for TDD FWA deployments, technical buyers should assess the following synchronization capabilities:

1. PTP Profile Compliance: Does the device support ITU-T G.8275.1 and/or G.8275.2 profiles with hardware timestamping?
2. SyncE Support: Is G.8262 EEC compliance documented, with ESMC for automatic clock quality negotiation?
3. GNSS Multi-Constellation: Which constellations are supported? Multi-band capability available?
4. Oscillator Type: TCXO, OCXO, or atomic? What is the validated holdover specification under temperature cycling?
5. Hybrid Operation: Does the device support simultaneous SyncE + PTP + GNSS with automatic failover hierarchy?
6. 3GPP Timing Compliance: Are TS 38.133 phase accuracy, frequency accuracy, and timing advance requirements documented in device conformance test reports?
7. Management and Monitoring: Can PTP clock status, GNSS satellite visibility, and oscillator health be monitored via TR-369 USP, SNMP, or vendor API?
8. GNSS Antenna Port: Is a dedicated, bias-tee-powered antenna connector provided? What is the supported antenna gain range?

Future Directions: Enhanced Synchronization for 5G-Advanced and 6G

As networks evolve toward 5G-Advanced (3GPP Release 18/19) and early 6G research, synchronization requirements will tighten further. Key developments on the horizon include:

• Sub-100 ns accuracy: Coordinated Multi-Point (CoMP) transmission, massive MIMO reciprocity-based beamforming, and carrier aggregation across non-co-located cells will require timing accuracy below 100 nanoseconds — an order of magnitude tighter than current 5G NR requirements.
• Network-Integrated Sensing: 6G’s vision of joint communication and sensing (JCAS) requires picosecond-level synchronization for accurate range, velocity, and angle estimation — likely necessitating optical or atomic timing references at the network edge.
• AI-Assisted Timing Recovery: Machine learning algorithms for predictive oscillator drift compensation, multi-path GNSS signal processing, and adaptive PTP clock servo optimization are emerging as techniques to improve timing resilience without escalating hardware costs.

For CPE procurement with a 5–7 year deployment horizon, selecting devices with OCXO-based synchronization and field-upgradable timing firmware provides headroom for these evolving requirements without requiring hardware replacement.

Frequently Asked Questions

Why is network timing critical for 5G TDD CPE?

5G TDD networks share a single frequency channel for uplink and downlink, separated in time. All devices must maintain microsecond-level time alignment to prevent inter-symbol interference and cross-link interference. 3GPP TS 38.133 specifies phase accuracy within ±1.5 µs for wide-area deployments.

What is the difference between PTP and SyncE for CPE synchronization?

PTP (IEEE 1588v2) provides both time/phase and frequency synchronization via packet-based messaging, achieving sub-microsecond accuracy with hardware timestamping. SyncE (G.8262) provides only frequency synchronization at the physical layer by recovering a clock from the Ethernet line signal. They are complementary: SyncE provides stable frequency reference that enhances PTP phase accuracy.

What oscillator type is recommended for outdoor 5G FWA CPE?

OCXO (Oven-Controlled Crystal Oscillator) is the industry standard for outdoor CPE, providing holdover of 1.5 µs over 24–72 hours per ITU-T G.8272 PRTC Class B requirements. TCXO is acceptable for indoor CPE without GNSS dependency, while chip-scale atomic clocks are emerging for mission-critical remote deployments.

Does 5G CPE need GNSS if the network provides PTP synchronization?

GNSS provides an independent, autonomous timing reference that serves as a backup when network PTP is degraded and as a PRTC source for the wider synchronization architecture. Hybrid operation combining GNSS, PTP, and SyncE with automatic failover is recommended for carrier-grade 5G FWA CPE deployments.

Need 5G CPE with carrier-grade synchronization for your TDD FWA network? Contact Honlly Telecom to discuss your timing requirements. Our engineering team can provide detailed IEEE 1588v2 PTP, SyncE, and GNSS-disciplined oscillator specifications for our outdoor and enterprise CPE product lines.
