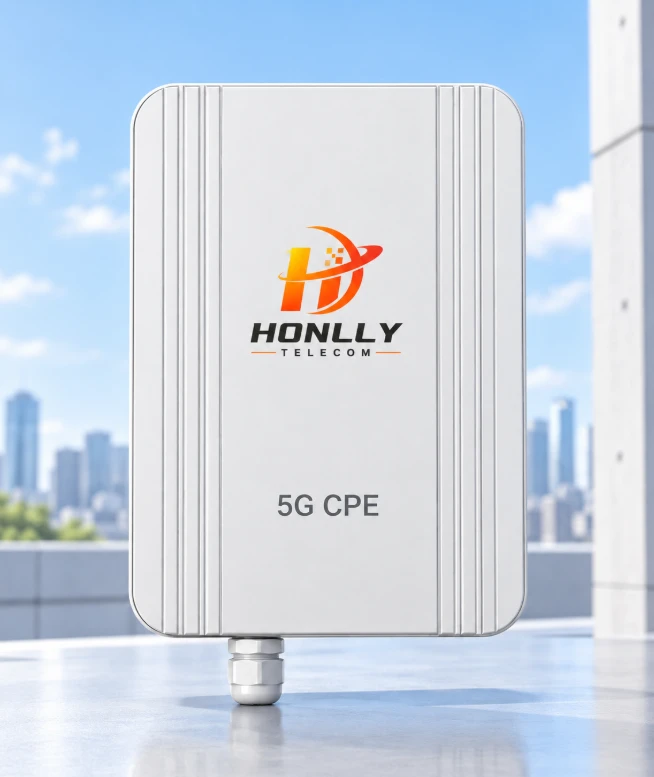

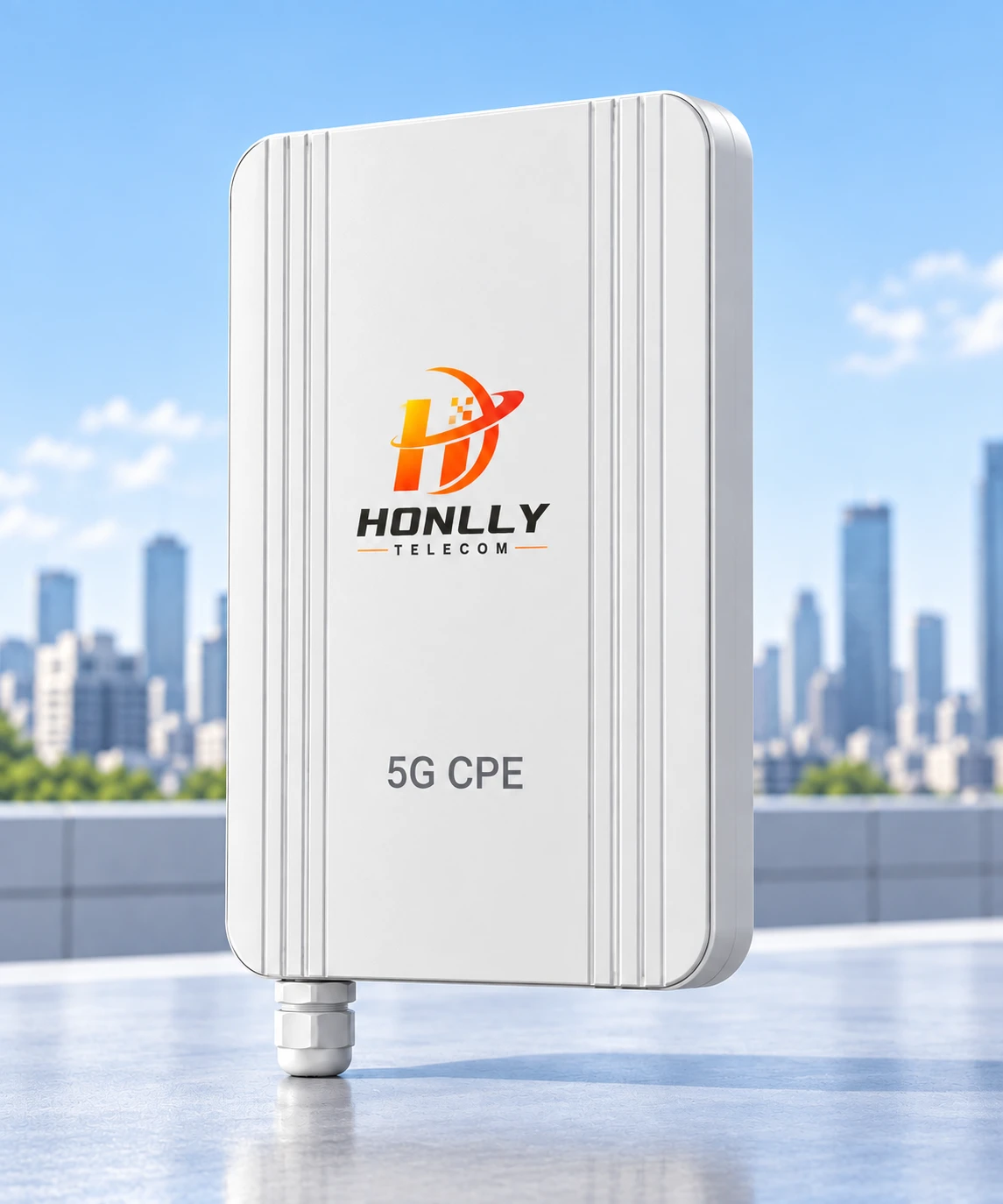

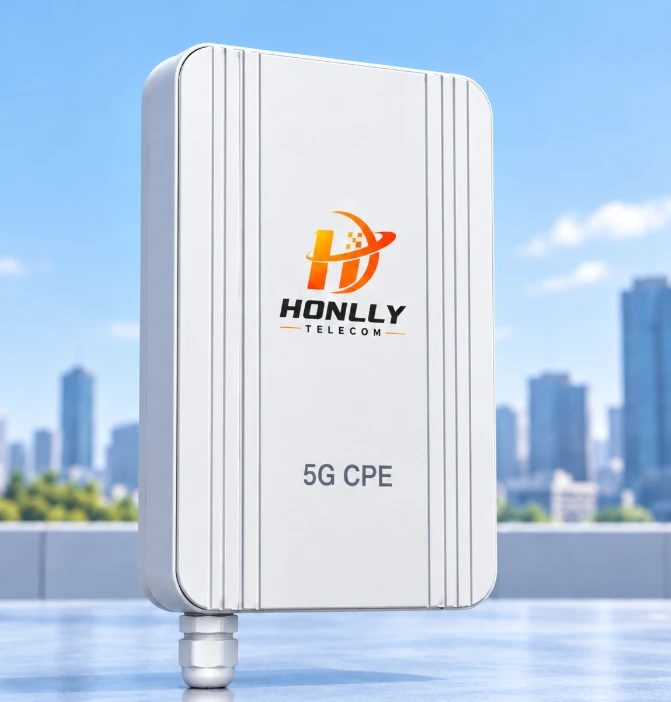

HL-6300R 5G Outdoor Router Kit (5G Outdoor CPE + WiFi 6 AX1800)
Honlly Telecom’s HL-6300R 5G outdoor CPE (ODU) + WiFi 6 indoor router kit is built on the mature Unisoc V620 platform and is already in mass production.
- Chipset: Unisoc V620 (V630), ARM Cortex-A55 quad-core 2.0GHz
- 5G Rate: NSA 5.47Gbps DL / SA 4.67Gbps DL
- WiFi: WiFi 6 AX1800 (1201Mbps @5GHz + 574Mbps @2.4GHz)
- Protection: IP65 outdoor unit
- Ports: 2.5G LAN (ODU) + 1×GE WAN / 3×GE LAN
- Management: TR-069 / TR-181 + remote FOTA
Product Description
The HL-6300R 5G outdoor router kit combines an outdoor CPE with an indoor WiFi 6 AX1800 router for fixed wireless access. Review the outdoor installation, power and indoor connectivity requirements together when selecting a configuration.
Unisoc V630 5G-A: Honlly’s Next-Generation Technology Direction
The HL-6300R platform adopts the Unisoc V630 5G-Advanced (5G-A) solution — the core technology direction that will drive Honlly Telecom’s product roadmap over the coming year. Aligned with 3GPP Release 18, the Unisoc V630 unlocks 5G-A capabilities: higher uplink throughput, lower latency and improved network efficiency for fixed-wireless and enterprise access.
Honlly Telecom is building its next-generation CPE and router lineup on the Unisoc V630 5G-A platform. Contact us to learn how the HL-6300R and its Unisoc V630 5G-A variants can future-proof your deployment.
Technical Specifications
Battery configuration: The linked PDF describes the standard 5000mAh / 18.5Wh mini UPS. Optional 10000mAh and 20000mAh batteries can be configured on request. Confirm the selected power-supply configuration and quotation before ordering. The listed UPS weight and other physical specifications refer to the documented standard configuration.
Download HL-6300R 5G Outdoor Router Kit Specification (PDF, 6 pages)
Specifications below are based on the linked product datasheet. The outdoor CPE, indoor router and mini UPS have separate installation and power requirements. Confirm the ODU input range, firmware version and supplied accessories for the ordered configuration. Maximum cellular and WiFi rates are theoretical, not guaranteed end-to-end throughput.
| Chipset | Unisoc V620 (V630), ARM Cortex-A55 quad-core up to 2.0GHz |
|---|---|
| 5G Standard | 3GPP Release 16 (NSA & SA) |
| 5G NR Bands | n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 |
| LTE Bands | FDD B1/3/5/7/8/20/28/32; TDD B38/40/41/42/43 |
| WCDMA Bands | B1/5/8 |
| 5G Data Rate | NSA 5.47Gbps DL / 825Mbps UL; SA 4.67Gbps DL / 1.25Gbps UL |
| LTE Data Rate | 1.6Gbps DL / 211Mbps UL |
| MIMO | 5G NR DL 4×4 / UL 2×2; LTE DL 4×4 |
| LTE Category | DL Cat 19 / UL Cat 18 |
| WiFi | WiFi 6 AX1800 (1201Mbps @5GHz + 574Mbps @2.4GHz) |
| SIM | 1× Nano SIM (4FF) 1.8V/3V, or 1× eSIM |
| Antennas | 4× internal 4G/5G antennas, 4×4 MIMO, 50Ω |
| ODU Interface | 1× 2.5G Ethernet (PoE), 1× USB2.0 |
| Indoor Unit Ports | 1× GE WAN, 3× GE LAN |

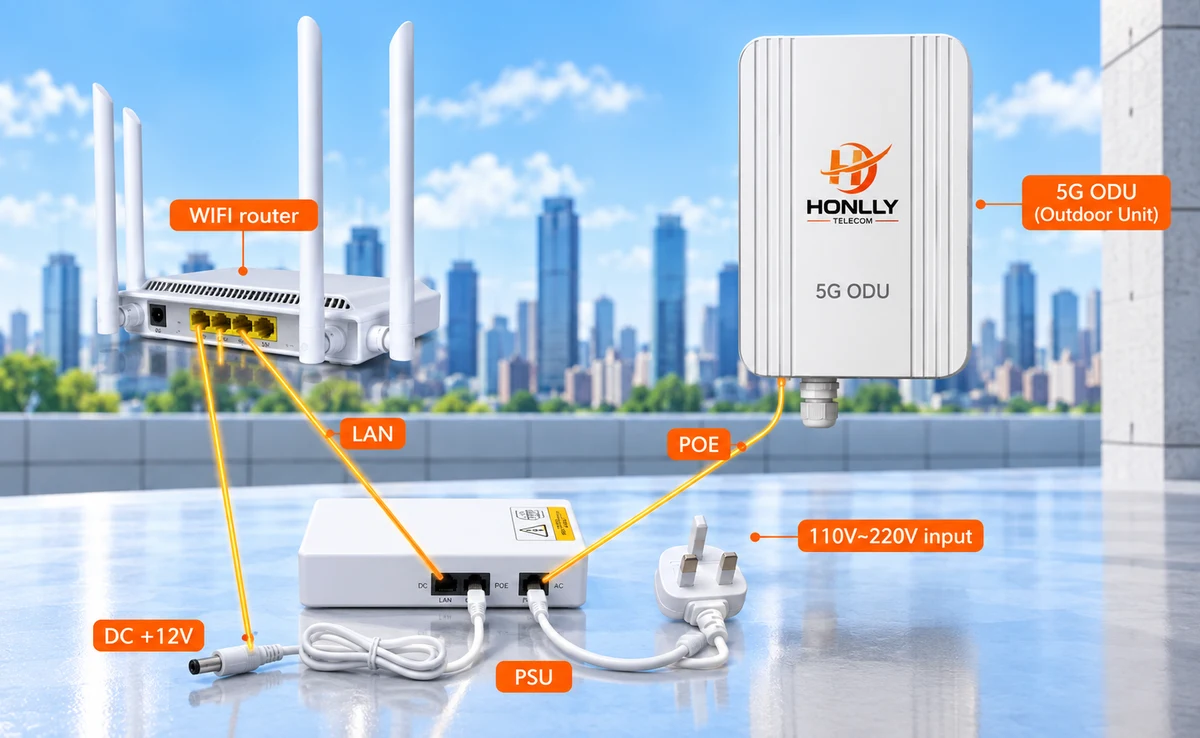

| Power | Mini UPS outputs: PoE 20V/1A and DC 12V/1A; confirm ODU input requirements |
| Battery Backup | 5000mAh standard battery; 10000mAh or 20000mAh available on request |
| Protection | IP65 (ODU) |
| Temperature | ODU: -30°C to +70°C; mini UPS: 0°C to +45°C |
| Dimensions | ODU: 190 × 141 × 40mm; indoor router: 195 × 125 × 35mm |
| Weight | ODU: 480g; indoor router: 250g; mini UPS: approximately 440g |
| OS | OpenWrt; firmware version to be confirmed for the ordered configuration |
| Security | WPA2/WPA3-PSK MIX |
| Management | TR-069, TR-181, Web GUI, SSHv2 |
| ODU Mounting | Wall or pole mounted |
| Indoor WiFi Features | Mesh, MU-MIMO, OFDMA, 1024-QAM, beamforming and dynamic QoS |
| Indoor Router Antennas | 2 external 2.4GHz 5dBi antennas and 2 external 5GHz 5dBi antennas |
| Indoor Router Device Capacity | Up to 128 connected devices as listed in the specification; actual performance depends on usage and network conditions |
| Indoor Router Power | DC 12V/1A; listed power consumption ≤12W |
| Mini UPS Input | AC 110–220V, 50/60Hz; customer-specified AC plug |
| Mini UPS Interfaces | 1 Gigabit Ethernet LAN; PoE output 20V/1A; DC output 12V/1A |
| 5G MIMO Bands | DL 4×4: n1/n3/n7/n38/n40/n41/n77/n78; UL 2×2: n40/n41/n77/n78 |
5G Outdoor Router & 5G Outdoor CPE Use Cases
- ISP & WISP fixed wireless: deliver last-mile broadband to homes and businesses without fiber.
- Rural & remote broadband: connect farms, villages, and remote sites beyond cable reach.
- Enterprise backup: business continuity with a dedicated 5G failover link.
- Industrial & smart sites: monitoring, SCADA, and IoT backhaul for outdoor facilities.
- Temporary & event connectivity: fast-deploy internet for construction, events, and pop-up sites.
Why Choose the HL-6300R 5G Outdoor Router & CPE Kit
- Carrier-grade 5G speed: 5G NSA 5.47Gbps DL and SA 4.67Gbps DL for high-throughput FWA.
- All-in-one kit: 5G Outdoor CPE (ODU) + WiFi 6 AX1800 indoor router + mini UPS with a standard 5000mAh battery, with 10000mAh and 20000mAh options available on request.
- Rugged IP65 outdoor unit: built for -30°C to +70°C and harsh weather.
- Simple PoE installation: one 2.5G PoE cable powers and connects the outdoor unit.
- Central management: OpenWRT with TR-069/TR-181, remote FOTA, and watch-dog self-recovery.
- OEM/ODM ready: custom branding, band configuration, firmware, and packaging.
Interested in HL-6300R 5G Outdoor Router Kit (5G Outdoor CPE + WiFi 6 AX1800)?
Contact Honlly Telecom for OEM/ODM pricing, custom branding, certification support, and sample availability. Minimum order quantities are flexible.Product Selection & OEM/ODM Support
Buyer Questions
What should I compare on HL-6300R?
Compare the outdoor unit, indoor WiFi router and mini UPS separately. The listed outdoor enclosure is IP65; the standard UPS battery is 5000mAh, with larger options on request. Confirm the complete power arrangement using the linked specification and quotation.
Compare product formats and acceptance tests · Find specifications and planning resources
FAQ
What type of buyer is the HL-6300R suitable for?
The HL-6300R is suitable for operators, ISPs, MVNOs, distributors, telecom equipment importers, and enterprise buyers evaluating 5G ODU + indoor router kits for fixed wireless access deployment.Can Honlly support OEM/ODM customization for the HL-6300R?
Yes. Honlly Telecom can discuss branding, firmware, packaging, band configuration, certification support, and project-specific feature requirements for the HL-6300R.What information should buyers send for a HL-6300R quotation?
Buyers should send target market, required bands, carrier or certification requirements, estimated quantity, branding needs, and any firmware or packaging customization requests.What is the difference between a 5G Outdoor Router and a 5G Outdoor CPE?
A 5G Outdoor CPE is the outdoor customer-premises unit that receives the 5G signal; a 5G Outdoor Router is the complete solution that routes that connection to indoor devices over WiFi or Ethernet. The HL-6300R combines both: a 5G Outdoor CPE (ODU) paired with an indoor WiFi 6 AX1800 router.Which frequency bands does the HL-6300R 5G Outdoor Router support?
5G NR n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78; LTE FDD B1/3/5/7/8/20/28/32; LTE TDD B38/40/41/42/43; and WCDMA B1/5/8.Choosing an outdoor kit or an indoor router
The HL-6300R pairs an outdoor 5G CPE with an indoor WiFi 6 AX1800 router. Review mounting, power and cable requirements for the intended site before ordering. For projects that call for an indoor desktop unit, compare the HL-850UE 5G indoor router and evaluate cellular reception at the installation location.
Planning a deployment for your market
For projects in Yemen, Southeast Asia, Africa, Central America or North America, share the deployment location, operator, required quantity and network requirements when requesting a quotation. Review the selected model’s published bands against the intended service, and confirm the ordered hardware and firmware configuration before sample evaluation. Band overlap alone does not establish operator compatibility or local approval.
Discuss SIM and APN settings, power arrangements, installation conditions, remote management and any applicable approval requirements before volume procurement. Request a current quotation for the required configuration; pricing and delivery terms should be confirmed for each order.
HL-6300R deployment checklist
For an outdoor 5G CPE deployment, review the listed enclosure rating, mounting arrangement, power or PoE requirements and connection to the indoor network. Provide the operator bands and site conditions so the proposed hardware variant and installation accessories can be checked together.
