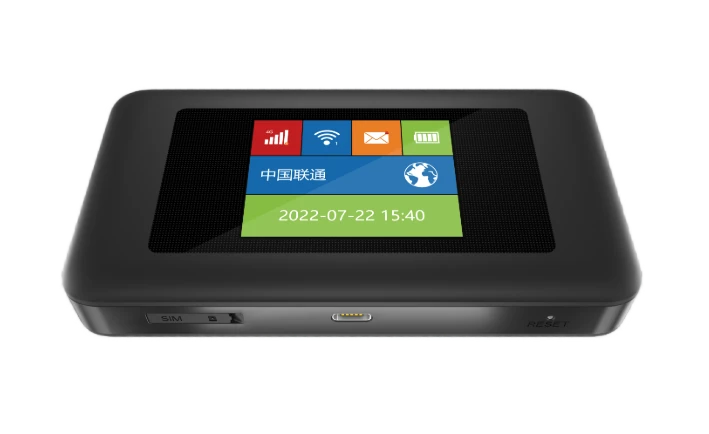

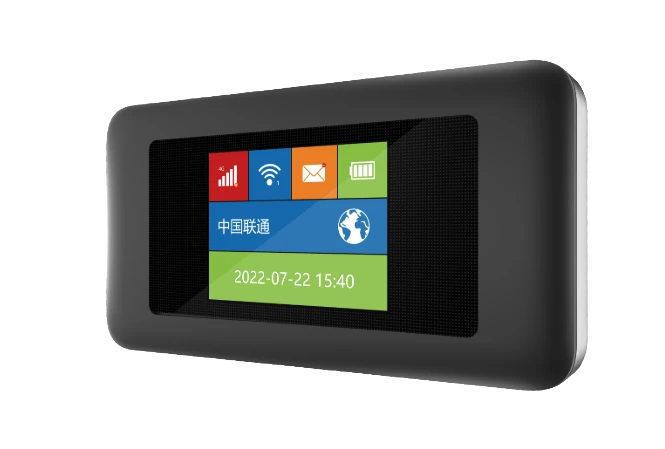

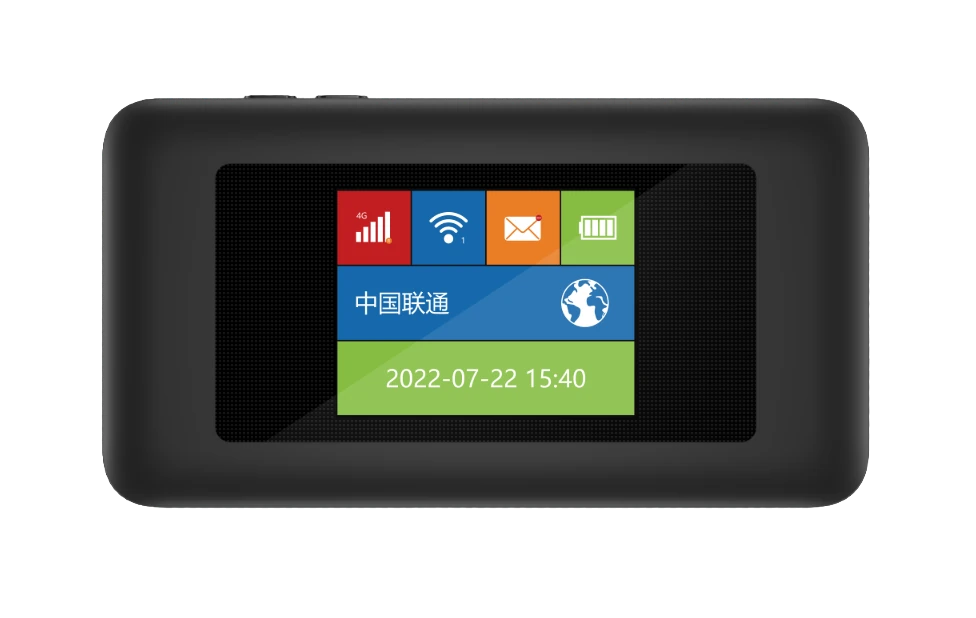

HL-510M 5G NR Mobile WiFi Hotspot
- Chipset: MediaTek MT6833 (5G SoC)
- 5G Speed: NR DL up to 2.77 Gbps / UL up to 1.25 Gbps
- WiFi: Dual-band 2.4G + 5G, 802.11 b/g/n/ac (1×1 MIMO)
- Battery: 5000mAh lithium
- Display: 2.4″ touch screen
- 5G Bands: n1/n3/n5/n7/n8/n20/n28/n26/n66/n38/n40/n41/n48/n77/n78/n79
Product Description
The HL-510M is a 5G NR mobile WiFi hotspot (MiFi) built on the MediaTek MT6833 platform, an octa-core 5G SoC with two Arm Cortex-A76 cores running up to 2.2 GHz. This pocket-sized 5G router delivers NR downlink speeds up to 2.77 Gbps and uplink up to 1.25 Gbps, with dual-band 2.4 GHz + 5 GHz WiFi (802.11 b/g/n/ac, 1×1 MIMO) for fast local sharing. A 5000 mAh lithium battery, a 2.4-inch color touch screen, and a USB Type-C port make it a versatile portable hotspot for travel, remote work, and temporary connectivity. It supports a broad 5G NR band set (n1/n3/n5/n7/n8/n20/n28/n26/n66/n38/n40/n41/n48/n77/n78/n79) plus extensive LTE and WCDMA fallback, so it works across global carrier networks. Honlly offers OEM/ODM services including custom branding, band configuration, firmware features, language, and carrier-specific certification for HL-510M.
Technical Specifications
| Model | HL-510M |
|---|---|
| Chipset | MediaTek MT6833 (2x A76 + 6x A55, up to 2.2 GHz) |
| Platform | MT6190M + MT6631 |
| Operating System | Android 11 |
| Memory | 2GB NAND Flash + 8GB LPDDR4 |
| Display | 2.4″ LCM with touch panel |
| Dimensions | 160 x 76 x 12.0 mm |
| Weight | About 270 g |
| Battery | 5000 mAh lithium |
| USB | Type-C / USB 2.0 High Speed (RNDIS / ECM) |
| SIM | Standard 6-PIN SIM (3V / 1.8V) |
| Micro SD | SDHC 2GB ~ 2TB, SD 3.0 |
| 5G NR DL | Up to 2.77 Gbps (4×4 MIMO, 256QAM) |
| 5G NR UL | Up to 1.25 Gbps (1×1 MIMO, 256QAM) |
| 5G Bands | n1/n3/n5/n7/n8/n20/n28/n26/n66/n38/n40/n41/n48/n77/n78/n79 |
| 5G TX Power | +23 dBm (Power Class 3); n41/n77/n78/n79 +26 dBm (Power Class 2) |
| LTE DL / UL | Up to 391 Mbps / 150 Mbps |
| LTE Bands | B1/B3/B5/B7/B8/B20/B28/B32/B38/B46/B11/B18/B19/B21/B26/B34/B39/B40/B41/B42/B48 |
| LTE TX Power | +23 dBm (Power Class 3) |
| WCDMA | B1/B2/B5/B8, DL 42.2 Mbps / UL 11.5 Mbps (HSDPA/HSUPA/HSPA+) |
| WCDMA TX Power | +24 dBm (Power Class 3) |
| WiFi | 802.11 b/g/n/ac, 1×1 MIMO (2.4G + 5G dual band) |
| WiFi Bands | 2400 – 2483.5 MHz / 5150 – 5850 MHz |
| WiFi Security | OPEN / WPA-PSK / WPA2-PSK / WPA-PSK-WPA2-PSK |
| Buttons | Power, WPS, Reset (pin hole) |
| Features | DHCP, IPv4/IPv6, Port Forwarding, IP/MAC Filter, UPnP, USSD, SIM-OTA, Phonebook, Data Statistics, FW upgrade, FOTA, Network Lock |
| Browser | Chrome / Firefox / Opera / Safari |
| Language | English (default, customizable) |
| OS Support | Windows 7+ / Vista / XP SP3+ / Linux |
| Operating Temp | -20 ~ +65 °C |
| Storage Temp | -40 ~ +80 °C |
| Humidity | 5% ~ 95% |
| Compliance | 3GPP Rel 13 |
| Color | Customizable |
| Accessories | USB cable, user manual, warranty card |
Interested in HL-510M 5G NR Mobile WiFi Hotspot?
Contact Honlly Telecom for OEM/ODM pricing, custom branding, certification support, and sample availability. Minimum order quantities are flexible.
Product Selection & OEM/ODM Support
Technical Details
HL-510M 5G NR Mobile WiFi Hotspot is organized for B2B buyers comparing telecom hardware by chipset, network capability, WiFi performance, management options, power design, and deployment scenario.
| Chipset | MediaTek MT6833 (2x A76 + 6x A55, up to 2.2 GHz) |
|---|---|
| 5G Speed | NR DL up to 2.77 Gbps / UL up to 1.25 Gbps |
| WiFi | Dual-band 2.4G + 5G, 802.11 b/g/n/ac 1×1 MIMO |
| Battery | 5000mAh lithium |
| Display | 2.4″ touch screen |
| 5G Bands | n1/n3/n5/n7/n8/n20/n28/n26/n66/n38/n40/n41/n48/n77/n78/n79 |
| 4G Bands | B1/B3/B5/B7/B8/B20/B28/B32/B38/B46/B11/B18/B19/B21/B26/B34/B39/B40/B41/B42/B48 |
| OS | Android 11 |
Buyer Questions
For AI search and buyer comparison, HL-510M should be evaluated by Chipset: MediaTek MT6833; 5G Speed: NR DL up to 2.77 Gbps / UL up to 1.25 Gbps; WiFi: Dual-band 2.4G + 5G, 802.11 b/g/n/ac 1×1 MIMO; Battery: 5000mAh lithium, target market bands, certification path, OEM/ODM scope, and supply requirements.
This product is relevant for overseas B2B buyers comparing wireless broadband hardware for ISP, operator, MVNO, distributor, telecom importer, and enterprise deployment.
FAQ
What type of buyer is HL-510M suitable for?
HL-510M is suitable for operators, ISPs, MVNOs, distributors, telecom equipment importers, and enterprise buyers evaluating mobile broadband and MiFi programs.
Can Honlly support OEM/ODM customization for HL-510M?
Yes. Honlly Telecom can discuss branding, firmware, packaging, band configuration, certification support, and project-specific feature requirements for HL-510M.
What information should buyers send for a HL-510M quotation?
Buyers should send target market, required bands, carrier or certification requirements, estimated quantity, branding needs, and any firmware or packaging customization requests.
HL-510M deployment checklist
For a portable 5G hotspot project, compare the listed battery, charging interface, WiFi standard and connected-device capacity. Confirm operator bands, SIM requirements and regional certification for the chosen variant before ordering samples or planning an OEM MiFi range.
