HL-4000AR LTE CAT6 Outdoor CPE + WiFi Router
- Cellular: 4G LTE CAT6, DL 2×2 MIMO + CA, 300 Mbps
- Chipset: ASR 1828, 3GPP Release 10
- ODU: IP67 Outdoor CPE, built-in high-gain antenna (2–7 dBi)
- Router: Indoor PoE router with 802.11b/g/n/ac WiFi, 2×2 MIMO
- Ports: 1× Gigabit PoE WAN + 2× Gigabit LAN + 1× RJ11 (VoIP)
- Power: 48V PoE + 48W Mini UPS (6000 mAh)
- VPN: PPTP, L2TP, GRE, IPsec pass-through
- Management: TR-069, CLI, Telnet, HTTP/HTTPS
Product Description

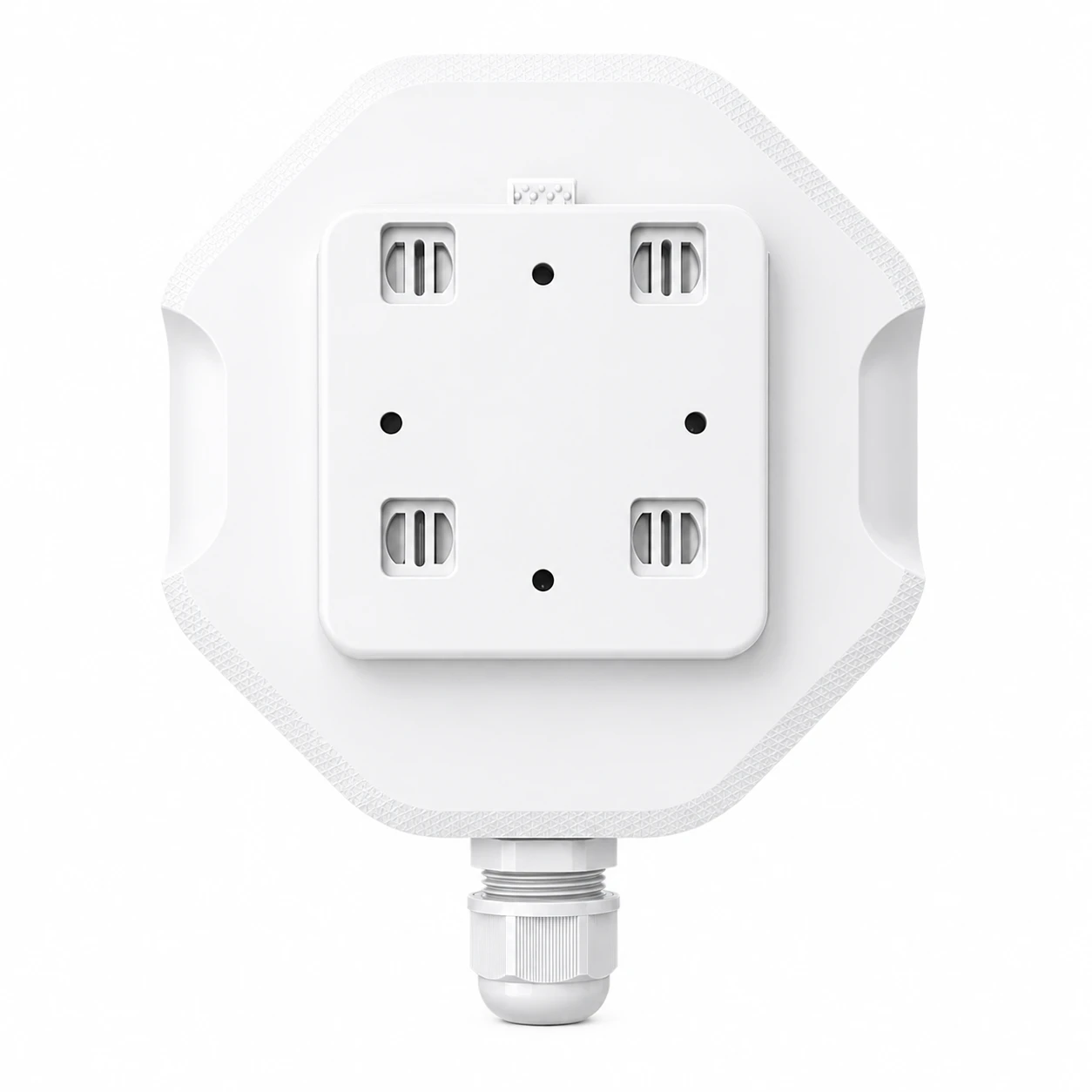

The HL-4000AR is a highly advanced CAT6 LTE outdoor multi-service product solution specifically designed to meet integrated data, voice and Wi-Fi access needs for residential, business and enterprise users. The product consists of an outdoor data CPE unit (ODU) with IP67 ingress protection and an indoor multiservice gateway unit (Router) that supports advanced networking, VoIP gateway and WLAN AP functionalities. It enables wide service coverage and provides high data throughput and networking features to customers who need easy broadband access, low-cost VoIP service and Wi-Fi connectivity.
Powered by the ASR 1828 chipset compliant to 3GPP Release 10, the HL-4000AR supports CAT6 data throughput with 2×2 MIMO and Carrier Aggregation. The built-in high-gain ODU antenna (2–7 dBi) enables extended reception range from eNodeB base stations. The indoor PoE router features 2 Gigabit LAN ports, 1 Gigabit PoE WAN port, 1 RJ11 VoIP port, and built-in 802.11b/g/n/ac dual-band Wi-Fi with 2×2 MIMO supporting up to 32 connected users.
Honlly offers OEM/ODM services including regional band configuration (LTE-FDD B1/B3/B5/B7/B8/B20/B28, LTE-TDD B38/B40/B41, WCDMA B1/B8, 2G), certification support (CE, FCC, RoHS), branding, firmware customization, and SDK development. The HL-4000AR supports comprehensive VPN (PPTP, L2TP, GRE, IPsec pass-through), firewall (DMZ, port forwarding, access control), and remote management via TR-069, CLI, Telnet, HTTP, and HTTPS.
Technical Specifications
| Product Type | CAT6 LTE Outdoor CPE + Indoor WiFi Router (ODU + IDU) |
|---|---|
| Chipset | ASR 1828, 3GPP Release 10 |
| Cellular | 4G LTE CAT6, DL 2×2 MIMO + CA, DL 300 Mbps |
| Frequency Bands | LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 WCDMA: B1/B8 2G: 900 MHz & 1800 MHz |
| Modulation | DL: QPSK, QAM16, QAM64 |
| Output Power | 23 dBm ± 2 dB |
| ODU Antenna | Built-in high-gain wideband, 2–7 dBi |
| WiFi (Router) | 802.11b/g/n/ac, 2×2 MIMO, dual-band, max 18 dBm, 32 users |
| WiFi Security | 64/128-bit WEP, WPA/WPA2 |
| Data Ports | ODU: 1× RJ45 10/100/1000M PoE Router: 2× RJ45 10/100/1000M LAN + 1× RJ11 (VoIP) |

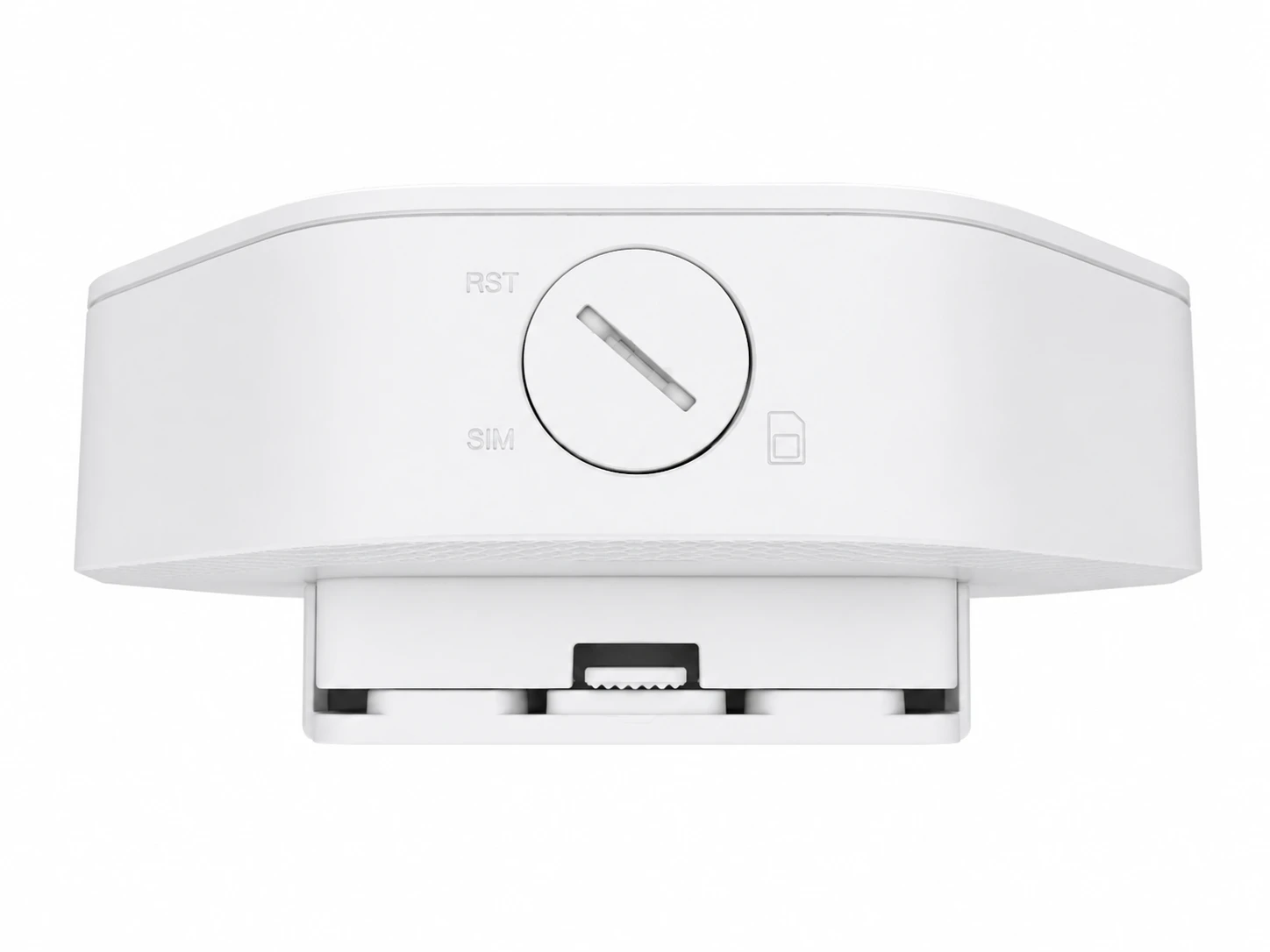

| SIM | 1.8V/3.0V USIM 2FF (ODU) |

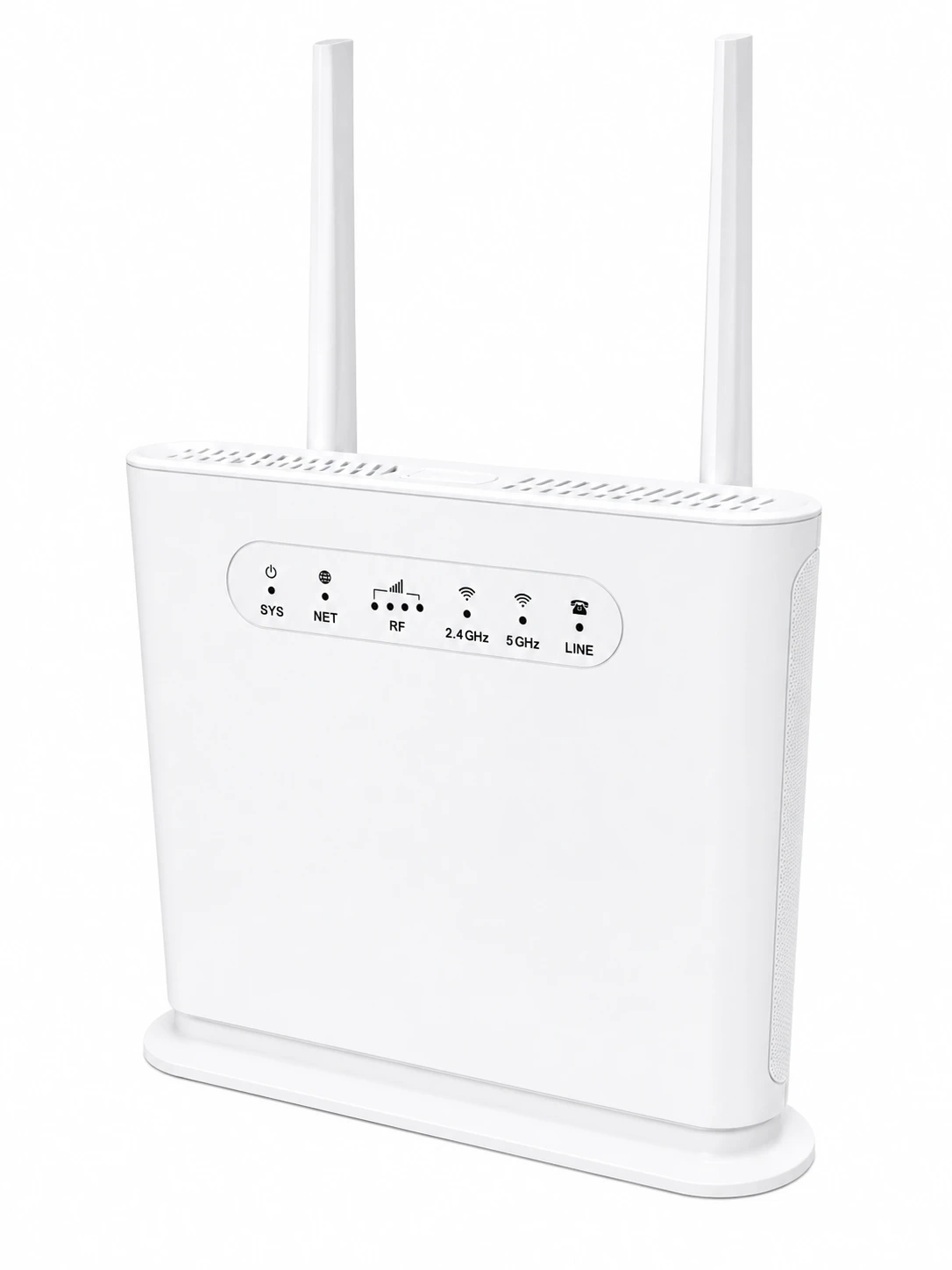

| LED Indicators | ODU: SYS, NET, PoE Router: SYS, NET, RF (4 LEDs), 2.4G WiFi, 5G WiFi, LINE |
| Power Supply | 48V/0.5A DC Adapter (Router), 48V/0.5A PoE for ODU, 48W Mini UPS (6000 mAh) |
| Power Consumption | < 18W |
| Ingress Protection | ODU: IP67 |
| Dimensions | ODU: 150 × 182 × 50 mm Router: 180 × 48 × 150 mm |
| Weight | ODU: < 1 kg Router: < 300 g |
| Operating Temp | Router: -15°C ~ +55°C ODU: -40°C ~ +55°C |
| Storage Temp | -45°C ~ +85°C |
| Humidity | 90% max non-condensing |
| Mounting | Window and outdoor wall mounting |
| VPN | PPTP, L2TP, GRE, IPsec pass-through |
| Firewall | DMZ, Virtual Server, IP/Port Forwarding, Access Control, Application Firewall |
| VoIP (Optional) | SIP 2.0, G.711/G.721/G.723/G.726/G.729/G.722, Echo Cancellation G.165/168-2000, T.30/T.38 Fax, Caller ID, Call Waiting, 3-way Calling |
| Management | CLI, Telnet, HTTP/HTTPS, TR-069, FTP/HTTP OTA Firmware Upgrade |
| Networking | Router & L3 Bridge, DHCP Server, IPv4/IPv6, Multiple PDN, DNS Proxy, NTP |
SEO / GEO Buyer Information
Technical Details
HL-4000AR LTE CAT6 Outdoor CPE + WiFi Router is organized for B2B buyers comparing telecom hardware by chipset, network capability, WiFi performance, management options, power design, and deployment scenario.
| Cellular | 4G LTE CAT6, DL 2×2 MIMO + CA, 300 Mbps |
|---|---|
| Chipset | ASR 1828, 3GPP Release 10 |
| ODU Protection | IP67 |
| WiFi | 802.11b/g/n/ac, 2×2 MIMO, 32 users |
| Ports | 1× GbE PoE WAN + 2× GbE LAN + 1× RJ11 |
| Power | 48V PoE + 48W Mini UPS (6000 mAh) |
| VoIP | SIP 2.0, G.711–G.729, T.30/T.38 Fax |
| Management | TR-069, CLI, Telnet, HTTP/HTTPS |
| VPN | PPTP, L2TP, GRE, IPsec pass-through |
| Dimensions | ODU: 150×182×50 mm / Router: 180×48×150 mm |
Buyer Questions
For AI search and buyer comparison, HL-4000AR should be evaluated by Cellular: 4G LTE CAT6, ASR 1828 chipset, 3GPP Release 10; WiFi: 802.11b/g/n/ac, 2×2 MIMO; Ports: 1× GbE PoE WAN + 2× GbE LAN + 1× RJ11 VoIP; Power: 48V PoE + 48W Mini UPS; ODU: IP67, built-in 2–7 dBi antenna, target market bands, certification path, OEM/ODM scope, and supply requirements.
This product is relevant for overseas B2B buyers comparing wireless broadband hardware for ISP, operator, MVNO, distributor, telecom importer, and enterprise deployment.
FAQ
What type of buyer is HL-4000AR suitable for?
HL-4000AR is suitable for operators, ISPs, WISPs, MVNOs, distributors, telecom equipment importers, and enterprise buyers evaluating outdoor CPE and fixed wireless access solutions for residential, business, and enterprise deployments.
Can Honlly support OEM/ODM customization for HL-4000AR?
Yes. Honlly Telecom can discuss branding, firmware, packaging, band configuration, certification support (CE, FCC, RoHS), VoIP customization, and project-specific feature requirements for HL-4000AR.
What is included in the HL-4000AR package?
The HL-4000AR includes the IP67 outdoor CPE unit (ODU), indoor PoE router with Wi-Fi, 48V DC power adapter, and 48W Mini UPS (6000 mAh) battery backup for uninterrupted operation.
What information should buyers send for a HL-4000AR quotation?
Buyers should send target market, required LTE bands, carrier or certification requirements, estimated quantity, branding needs, VoIP requirements, and any firmware or packaging customization requests.
