Thermal management is one of the most overlooked yet critical design disciplines in 5G CPE engineering. While buyers and operators focus on throughput, band support, and MIMO configuration, the thermal envelope directly determines a device’s sustained performance, outdoor survivability, and total cost of ownership across a multi-year deployment lifecycle. A CPE that throttles under load or fails prematurely due to heat stress undermines the entire FWA business case.
This guide provides a structured framework for technical buyers, procurement managers, and operator engineering teams evaluating 5G CPE thermal design — from passive cooling strategies to industrial-grade enclosure certification.
Why Thermal Design Matters for 5G CPE
5G CPE devices operate under fundamentally different thermal constraints than their 4G predecessors. Several factors contribute to increased heat generation:
Higher Power Amplifier Output. 5G NR, particularly in n77/n78 (3.5 GHz) and n258/n257 (mmWave) bands, requires power amplifiers operating at higher output levels to maintain link budget. Each dB of PA output translates to additional milliwatts of dissipated heat.
Multi-Band Carrier Aggregation. Modern CPE devices simultaneously operate across multiple frequency bands — sub-6 GHz for coverage and mmWave or mid-band for capacity. Each active RF chain contributes to the total thermal load.
Integrated Wi-Fi 6/6E/7 AP. CPE serving as a combined 5G modem and Wi-Fi access point runs two high-performance radios in a single enclosure, essentially doubling the thermal challenge.
Edge Compute Workloads. As CPE devices incorporate AI/ML inference for intelligent traffic steering, predictive maintenance, and local analytics, the SoC runs sustained compute workloads that compound RF-induced heat generation.
The result: a 5G CPE can generate 12–25W of thermal dissipation load in sustained operation, compared to 5–10W for a typical 4G CPE. Without adequate thermal management, device temperature can exceed safe operating limits within 15–30 minutes of sustained full-load operation.
Passive Cooling: The First Line of Defense
For most CPE form factors — particularly indoor desktop and wall-mounted units — passive cooling is the preferred thermal management strategy. It eliminates fan-related failure modes, acoustic noise, and dust ingress, all of which are unacceptable in residential and quiet office environments.
Heat Sink Design
Effective passive cooling starts with the heat sink. Key design parameters include:
– Material Selection: Die-cast aluminum is the industry standard, balancing thermal conductivity (~120–170 W/m·K for common alloys), weight, and manufacturing cost. Premium designs may specify copper inserts for hotspot mitigation at the modem/SoC interface. – Fin Geometry: Fin height, pitch, and orientation must be optimized for the device’s mounting orientation. Wall-mounted CPE benefits from vertically oriented fins that enhance natural convection. Desktop CPE with horizontal orientation requires forced airflow paths or chimney-effect enclosures. – Surface Area: As a rule of thumb, passive cooling requires approximately 30–50 cm² of effective surface area per watt of dissipated heat for a 40°C ambient-to-junction temperature delta. A 20W CPE thus needs 600–1,000 cm² of effective heat sink surface area.
Thermal Interface Materials (TIM)
The gap between the modem/SoC die and the heat sink is a critical thermal bottleneck. High-performance thermal pads or phase-change materials with conductivity above 5 W/m·K are recommended. Gap filler pads must account for component height variance across the PCB — a 0.2mm tolerance stack can increase thermal resistance by 30% if uncompensated.
Enclosure as Heat Sink
Advanced passive designs use the entire CPE enclosure as a thermal dissipation surface. Magnesium-alloy or aluminum chassis bonded to internal heat spreaders distribute heat across the full device surface, eliminating hotspots while maximizing radiative and convective cooling. This approach is particularly effective for slim, wall-mounted indoor CPE where aesthetic constraints limit visible heat sink protrusions.

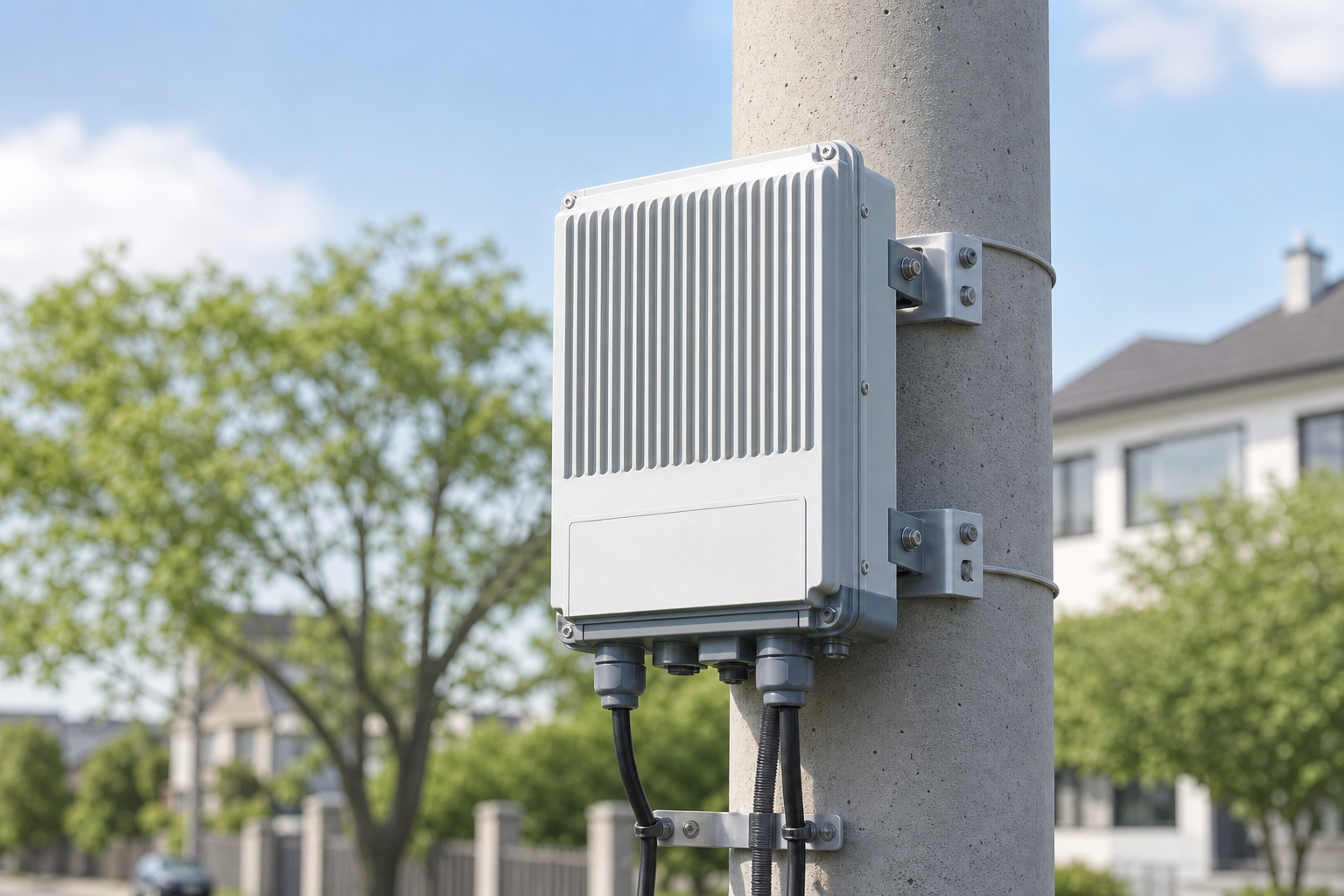

Outdoor CPE: The Industrial-Grade Challenge
Outdoor CPE — deployed on rooftops, poles, or building exteriors — faces thermal conditions that passive cooling alone cannot always handle. These devices must operate reliably across an ambient temperature range of -40°C to +55°C, with direct solar radiation adding 15–25°C of effective thermal load during peak sun exposure.
IP-Rated Enclosures with Thermal Management
The ingress protection (IP) rating fundamentally constrains thermal design. An IP67 or IP68 enclosure is sealed against dust and water — which also means zero natural airflow. Every watt of heat must be conducted through the enclosure walls. This creates a design tension between environmental sealing and thermal dissipation that requires careful engineering:
– Dual-Chamber Architecture: Some outdoor CPE designs separate the sealed electronics chamber from a vented heat exchanger chamber with Gore-Tex membranes that allow pressure equalization and limited vapor transmission without compromising IP rating. – Die-Cast Enclosure with Integrated Fins: The enclosure itself becomes the primary heat sink. Thick-walled die-cast aluminum bodies with external fins maximize surface area while maintaining structural integrity and IP compliance. – Solar Radiation Mitigation: Light-colored or reflective enclosure finishes reduce solar absorption. A white or light-gray powder-coated surface can reduce solar gain by 40–60% compared to dark-colored or bare metal enclosures.
Sun Shield and Mounting Considerations
Outdoor CPE mounting accessories contribute significantly to thermal performance:
– A sun shield or visor above the CPE enclosure blocks direct solar radiation during peak hours, reducing internal temperature rise by 10–15°C. – Pole-mount brackets should include a thermal standoff gap (minimum 10mm) between the enclosure and the mounting surface to maintain convection airflow on all sides. – Orientation matters: vertical mounting with fins aligned to the prevailing wind direction improves cooling by up to 25% compared to horizontal orientations.
Active Cooling: When Fans Are Necessary
In extreme thermal environments — high ambient temperature combined with sustained full-load operation — passive cooling may be insufficient. Active fan-based cooling introduces moving parts but can dramatically increase heat dissipation capacity.
Fan Selection and Reliability
For CPE applications, fan selection criteria differ from consumer electronics:
– MTBF (Mean Time Between Failures): Industrial-grade fans rated for 70,000–100,000 hours at 40°C are minimum requirements for operator-grade outdoor CPE. Consumer-grade fans (30,000–50,000 hours) are unacceptable for multi-year outdoor deployments. – Dual-Ball vs. Sleeve Bearings: Dual-ball bearing fans maintain performance across wide temperature ranges and tolerate mounting in any orientation. Sleeve-bearing fans degrade rapidly when mounted vertically and are not recommended for outdoor CPE. – Fan Speed Control: PWM-controlled, temperature-regulated fan curves balance cooling with acoustic noise and power consumption. A smart fan controller can reduce fan duty cycle below 20% during idle/low-load conditions, extending fan life and reducing dust accumulation.
Hybrid Passive-Active Designs
The optimal approach for demanding outdoor deployments is a hybrid design: passive cooling handles normal operation, and a temperature-controlled fan activates only when the internal junction temperature exceeds a threshold (typically 65–70°C). This minimizes fan runtime — often to less than 5% of total operating hours in temperate climates — while providing thermal headroom for extreme conditions.
Thermal Testing and Validation Standards
Technical buyers should verify that CPE vendors have subjected their designs to rigorous thermal validation:
– IEC 60068-2 Environmental Testing: Thermal cycling (-40°C to +85°C, minimum 100 cycles), damp heat (85°C/85% RH, 1,000 hours), and thermal shock testing. – Soak Testing: Sustained operation at maximum ambient temperature (typically +55°C) with full RF and compute load for a minimum of 72 continuous hours with zero throttling events. – Solar Load Simulation: IEC 60068-2-5 procedures for solar radiation testing, simulating 1,120 W/m² irradiance.
Evaluation Checklist for Buyers
When assessing 5G CPE thermal design, request the following from vendors:
- Thermal simulation reports showing junction temperatures for CPU, modem, PA, and Wi-Fi chipset under worst-case conditions (max ambient + full load).
- Throttling policy documentation: At what temperature does the device begin reducing TX power, MIMO layers, or carrier aggregation? What is the recovery behavior?
- Enclosure material and finish specifications, including solar absorptivity index for outdoor models.
- IP rating certification from an accredited test laboratory — not self-declared.
- Fan MTBF certification and fan replacement procedures if active cooling is used.
- Field failure data from comparable deployments in similar climate zones.
The Bottom Line
Thermal management is not a secondary concern — it is a first-order determinant of CPE reliability and operator satisfaction. A device that handles heat well will deliver consistent throughput, survive harsh outdoor environments, and minimize field replacement costs over a 5–7 year deployment lifetime. At Honlly Telecom, our 5G CPE designs incorporate industrial-grade passive cooling architectures, IP67-rated enclosures, and hybrid thermal solutions validated to the most demanding operator specifications. Contact our engineering team to discuss thermal requirements for your next FWA deployment.
