Quality of Service (QoS) architecture in 5G CPE has evolved far beyond simple priority queuing. As enterprise FWA deployments scale to support latency-sensitive applications — from real-time industrial control to 4K video conferencing and cloud-native SaaS — procurement teams must evaluate CPE QoS capabilities with the same rigor they apply to carrier-grade routing infrastructure. This guide provides a comprehensive technical framework for assessing QoS architecture in 5G CPE for B2B procurement.
The QoS Stack: From 5G NR Flow to LAN Egress
Effective QoS in a 5G CPE spans three distinct domains that must operate in concert:
- 5G NR QoS Flow (3GPP TS 23.501): The 5G core establishes QoS Flows with specific 5QI (5G QoS Identifier) values mapped to resource types (GBR, Non-GBR, Delay-Critical GBR). The CPE modem must correctly map these 5QI flows to internal traffic classes — a non-trivial task given that a single PDU session can carry up to 64 QoS Flows with distinct characteristics.
- CPE Internal Packet Processing: Between the 5G modem and the LAN/WLAN interfaces, the CPE must perform classification, marking, policing, shaping, and queue management. This is where most enterprise CPE differentiation occurs.
- LAN/WLAN Egress Scheduling: Traffic exiting to Ethernet switch ports or Wi-Fi radios must maintain QoS markings and enforce per-queue bandwidth allocation, especially critical in multi-tenant CPE scenarios (e.g., a single CPE serving both enterprise corporate traffic and guest Wi-Fi).
Deep Packet Inspection: The Classification Engine
Modern 5G CPE platforms increasingly integrate Deep Packet Inspection (DPI) engines directly into the device firmware — a capability previously reserved for dedicated enterprise firewalls and SD-WAN appliances. DPI enables application-layer traffic identification beyond simple port/protocol matching, critical for environments where applications use dynamic ports, encryption (TLS 1.3/QUIC), or CDN-distributed traffic patterns.
Procurement Evaluation Criteria for DPI in CPE:
- Signature Database Coverage: Minimum 3,000+ application signatures with weekly update capability. Verify coverage for enterprise-critical applications: Microsoft 365, Zoom, Teams, Salesforce, SAP, Citrix, AWS/Azure/GCP service endpoints.
- Encrypted Traffic Analytics (ETA): The ability to classify TLS 1.3 and QUIC traffic without decryption, using machine learning on packet metadata (packet length sequences, inter-arrival times, TLS fingerprinting). Check if the CPE supports Cisco ETA-compatible or equivalent ML-based classification.
- DPI Throughput: DPI processing should not become a bottleneck. For a 5G CPE with 2 Gbps+ downlink, the DPI engine must sustain classification at line rate with <5% CPU headroom impact.
- First-Packet Classification Latency: <1 ms for initial flow identification; sub-100 µs for subsequent packets in established flows.
Traffic Shaping and Hierarchical QoS (HQoS)

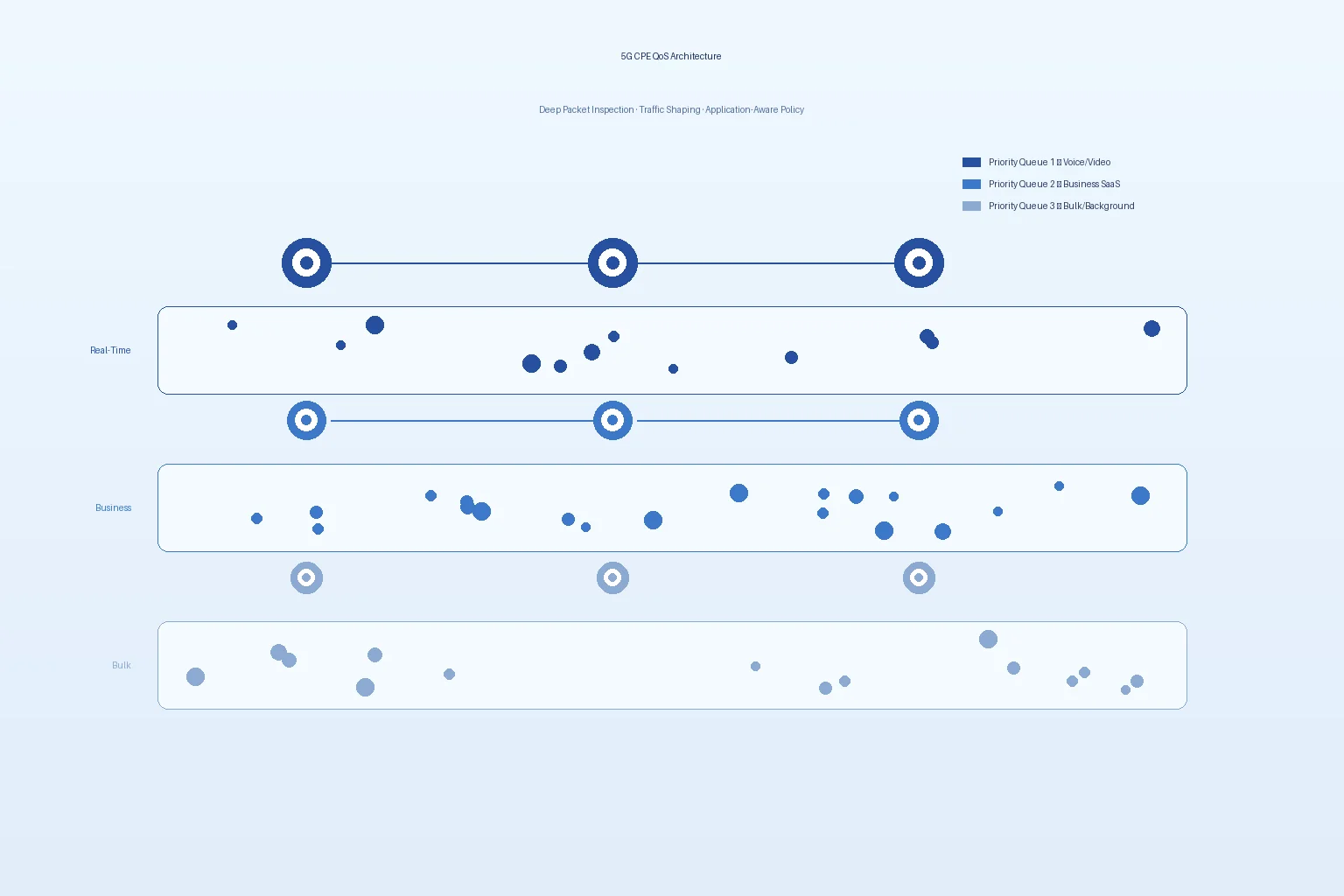

Hierarchical QoS (HQoS) enables multi-level traffic scheduling — essential for CPE deployments serving diverse tenant groups or application tiers. A three-level HQoS model is becoming the de facto standard for enterprise CPE:
- Level 1 — Subscriber/VLAN Level: Per-VLAN or per-subinterface bandwidth guarantees and caps. For example, a CPE serving a retail branch may allocate 60% of total bandwidth to POS and inventory systems (VLAN 100) and 40% to guest Wi-Fi and digital signage (VLAN 200).
- Level 2 — Application Group Level: Within each subscriber tier, application groups receive relative priority and minimum bandwidth guarantees. Real-time communications (voice, video conferencing) receive strict-priority queuing; business-critical SaaS receives guaranteed bandwidth; bulk data and entertainment receive best-effort with fair-queuing.
- Level 3 — Flow Level: Individual flows within application groups are scheduled using Weighted Fair Queuing (WFQ) or Deficit Round Robin (DRR) to prevent single-flow domination.
Key HQoS Specifications to Verify:
- Queue Depth: Minimum 8 hardware queues per port with 3-level hierarchical scheduling support. Software queues (typically 256–1024 per port) for flow-level granularity.
- Shaper Granularity: Rate limiting at 1 kbps granularity with burst size configurability. Verify that the CPE can simultaneously shape 64+ subscriber queues at line rate.
- Congestion Management: Support for WRED (Weighted Random Early Detection) with ECN (Explicit Congestion Notification) marking — critical for TCP throughput optimization over variable-capacity 5G links.
Application-Aware Policy Enforcement
Beyond classification and shaping, enterprise CPE must enforce application-aware policies that adapt to real-time network conditions. Three policy enforcement capabilities deserve particular attention in procurement evaluations:
Dynamic Path Selection: The CPE should steer latency-sensitive applications (VoLTE/VoNR offload, real-time video) to the 5G link with the lowest measured latency, while routing bulk transfers over higher-bandwidth but higher-latency paths. Path selection decisions must be reassessed at sub-second intervals based on active probing (TWAMP, ICMP, or proprietary SLA probes).
Application-Layer Gateway (ALG) and Protocol Awareness: SIP ALG for VoIP NAT traversal, FTP ALG for active/passive mode negotiation, and RTSP awareness for IP camera streams remain essential in enterprise environments. However, verify that the CPE’s ALG implementations are modern and do not interfere with encrypted signaling (SIP over TLS).
Time-Based Policy Scheduling: Enterprise CPE should support calendar-based policy changes — e.g., deprioritizing entertainment traffic during business hours (08:00–18:00) while allowing full bandwidth for software updates and cloud backups during off-hours. Verify that the CPE’s policy engine supports at least 32 time-based rules with calendar integration.
QoS Interoperability with Operator 5G Core
A frequently overlooked aspect of CPE QoS evaluation is interoperability with the mobile network operator’s 5G core policy framework. The CPE must correctly interpret and act upon:
- URSP (UE Route Selection Policy) Rules: Sent by the 5G core’s PCF, URSP rules instruct the CPE which PDU session (and associated QoS Flow) to use for specific application traffic descriptors. Verify that the CPE’s URSP client implementation correctly parses Traffic Descriptors (IP 5-tuple, FQDN, OSId/OSAppId) and Route Selection Descriptors (SSC mode, DNN, S-NSSAI).
- Reflective QoS: Support for Reflective QoS (RQoS) per 3GPP TS 24.193, where the CPE derives uplink QoS rules from received downlink packet markings. This eliminates the need for explicit QoS rule signaling for symmetric traffic patterns.
- QoS Flow to DSCP Mapping: The CPE must provide configurable mapping between 5QI values and IP DSCP/802.1p CoS markings on the LAN side, enabling end-to-end QoS continuity from the 5G core through to the enterprise LAN switch fabric.
Testing and Validation Framework for CPE QoS
B2B procurement teams should establish a structured QoS validation framework before finalizing vendor selection. Recommended test scenarios include:
- Multi-Application Concurrency Test: Simultaneously run VoIP calls (G.711, 20ms packetization), 1080p video conferencing, large file transfers (HTTP/HTTPS), and cloud backup traffic. Measure per-application latency, jitter, and throughput against SLA thresholds under 80% and 95% link load.
- QoS Policy Stress Test: Configure 64+ classification rules with nested HQoS policies and verify correct classification, shaping, and queue behavior using IxChariot, iPerf3 with DSCP marking, or commercial network test solutions.
- Failover QoS Consistency: Verify that QoS policies persist and are correctly re-applied after CPE reboot, firmware upgrade, and WAN link failover events. Policy synchronization latency should be under 30 seconds post-recovery.
- 5G NR Mobility QoS Continuity: For mobile or nomadic CPE use cases, verify that QoS markings and throughput guarantees are maintained across cell handovers and RAT changes (5G NR to LTE fallback).
Procurement Recommendations
For enterprise procurement teams evaluating 5G CPE with advanced QoS requirements, we recommend the following minimum specifications be included in RFPs effective H2 2026:
- Integrated DPI engine with 3,000+ signatures and weekly update cadence
- 3-level HQoS with minimum 8 hardware queues per port
- Application-aware dynamic path selection with sub-second re-evaluation
- Full URSP client implementation per 3GPP Release 17
- Reflective QoS and configurable 5QI-to-DSCP mapping
- Line-rate DPI and QoS processing at 2 Gbps aggregate throughput
- WRED with ECN marking for TCP congestion management
- API-driven (RESTCONF/NETCONF) QoS policy provisioning for integration with enterprise orchestrators
As 5G FWA transitions from best-effort broadband replacement to mission-critical enterprise connectivity, QoS architecture becomes a primary differentiator — not an afterthought. CPE platforms that deliver carrier-grade traffic management with enterprise-friendly policy frameworks will define the procurement landscape through 2027 and beyond.
