Antenna architecture remains one of the most critical yet frequently overlooked dimensions of 5G Fixed Wireless Access (FWA) CPE performance. While chipset specifications, throughput ratings, and software feature sets dominate procurement discussions, the antenna subsystem — including MIMO configuration, beamforming implementation, antenna gain, and external antenna support — ultimately determines whether a CPE device can deliver rated performance in real-world deployment conditions. This guide provides technical buyers with a structured framework for evaluating 5G CPE antenna architectures across diverse deployment scenarios.

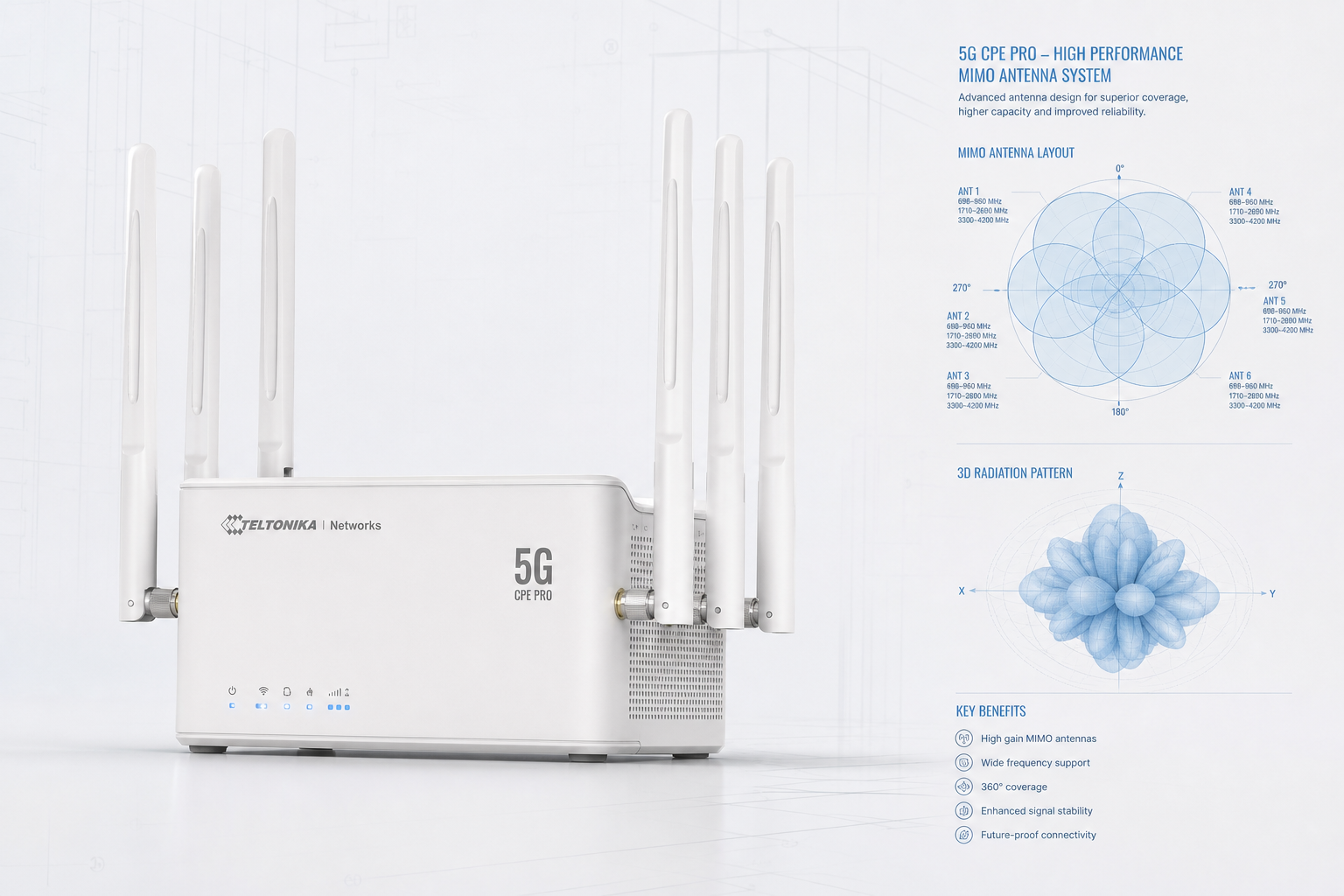

MIMO Configurations: 2×2, 4×4, and the Path to 8×8
Multiple-Input Multiple-Output (MIMO) is the foundational technology that enables 5G CPE devices to achieve multi-gigabit throughput by transmitting and receiving multiple data streams simultaneously over the same frequency channel. The MIMO configuration — expressed as N×M where N is the number of transmit antennas and M is the number of receive antennas — directly dictates the theoretical maximum spectral efficiency of the device.
In the current 5G CPE market, 4×4 MIMO has become the de facto standard for mid-range and premium FWA gateways operating in sub-6 GHz (FR1) bands. A 4×4 MIMO configuration enables up to four simultaneous spatial streams, effectively quadrupling throughput compared to single-antenna systems under favorable RF conditions. For enterprise deployments where consistent high throughput is a contractual requirement — such as SD-WAN branch office connectivity or primary business broadband — buyers should treat 4×4 MIMO as a mandatory specification, not a premium option.
Entry-level CPE devices with 2×2 MIMO remain viable for cost-sensitive deployments where peak throughput requirements are modest (below 300 Mbps typical), such as small retail POS systems or backup WAN links. However, buyers should understand that the throughput gap between 2×2 and 4×4 configurations widens significantly in challenging RF environments — a 4×4 system can maintain usable throughput at cell edges where a 2×2 system may drop below service-level thresholds.
Looking ahead, the 3GPP Release 17 and 18 specifications introduce support for 8×8 MIMO in FR1, and early engineering samples of 8×8 CPE platforms are expected to enter carrier certification programs in late 2026. While commercial availability remains limited, enterprises planning long-term FWA deployments should evaluate whether their selected CPE vendor has a roadmap for 8×8 MIMO support.
Beamforming: Digital, Analog, and Hybrid Approaches
Beamforming technology concentrates transmitted RF energy toward the target base station rather than radiating uniformly in all directions, improving signal-to-noise ratio (SNR) and extending effective range. 5G CPE devices employ different beamforming architectures with distinct performance and cost characteristics:
Digital beamforming applies per-antenna-element phase and amplitude weighting in the digital baseband processor, enabling simultaneous formation of multiple independent beams. This approach provides the highest flexibility and performance — supporting multi-user MIMO (MU-MIMO) and dynamic beam tracking — but requires dedicated RF chains for each antenna element, increasing component cost and power consumption. Digital beamforming is typically found in premium CPE platforms with 8 or more antenna elements.
Analog beamforming uses phase shifters in the RF front-end to steer a single beam, with lower cost and power consumption but reduced flexibility compared to digital implementations. Many mid-range 5G CPE devices employ analog beamforming for FR1 operation, which is generally sufficient for fixed-location deployments where the beam direction can be optimized once during installation and rarely needs adjustment.
Hybrid beamforming combines digital precoding with analog beam steering to balance performance and cost, and has emerged as the dominant architecture in current-generation enterprise CPE platforms. In a hybrid system, a smaller number of digital RF chains (typically 2-4) drive a larger array of antenna elements through analog phase shifters and combiners, achieving beamforming gain approaching all-digital systems at a fraction of the cost.
For technical evaluation, buyers should request the CPE vendor’s beamforming gain specifications — typically expressed in dB relative to an isotropic radiator (dBi) — and understand whether the device supports dynamic beam tracking for non-line-of-sight (NLOS) scenarios or static beam configuration for fixed rooftop installations.
External Antenna Support and RF Design Considerations
Internal antennas integrated into the CPE enclosure offer convenience and aesthetic appeal but often underperform in challenging deployment locations — basements, equipment rooms, metal-framed buildings, and rural areas at the edge of cell coverage. Enterprise buyers evaluating CPE for these scenarios should prioritize devices that support external antenna connections through industry-standard interfaces.
Key external antenna specifications to evaluate include:
- Connector type: SMA and TS-9 are the most common interfaces. SMA connectors offer superior mechanical durability and are preferred for permanent installations, while TS-9 connectors are common in consumer-grade devices and may require adapters for professional antenna systems. Enterprise buyers should verify connector compatibility with their planned antenna infrastructure.
- Antenna port count: For a 4×4 MIMO CPE, four external antenna ports are required to fully bypass the internal antenna array. Some devices offer only two external ports, limiting external MIMO to 2×2 operation — a significant compromise that buyers should identify during evaluation.
- Impedance matching: All components in the RF chain — CPE ports, cables, connectors, and external antennas — must maintain 50-ohm impedance to minimize signal reflection and loss. Even small impedance mismatches can cause several dB of signal degradation.
- Antenna gain and pattern: External antennas are available in omnidirectional (3-5 dBi typical) and directional (8-15 dBi typical) variants. Directional antennas provide higher gain in a specific direction, making them ideal for fixed installations with known cell tower locations, while omnidirectional antennas suit mobile or multi-carrier deployments.
Cross-Polarization and Diversity Techniques
Modern 5G CPE antenna systems employ polarization diversity — transmitting and receiving on both vertical and horizontal polarization planes — to improve link reliability in multipath-rich environments. Cross-polarized MIMO configurations, where antenna elements are arranged in ±45-degree slant polarization pairs, are particularly effective in urban and suburban deployments where signal reflections create diverse propagation paths.
Technical buyers evaluating CPE antenna specifications should look for polarization diversity metrics, including cross-polarization discrimination (XPD) values, which indicate how effectively the system can distinguish between orthogonally polarized signals. XPD values above 15 dB are generally considered good for sub-6 GHz 5G deployments.
Testing and Validation Best Practices
Antenna performance is inherently environment-dependent, and datasheet specifications measured in anechoic chambers rarely translate directly to field performance. Enterprise buyers should incorporate real-world testing into their CPE evaluation process:
- Conduct throughput testing at multiple locations within the intended deployment environment, including cell-edge and indoor-deep locations.
- Measure RSRP (Reference Signal Received Power) and SINR (Signal to Interference plus Noise Ratio) values at each test location to correlate antenna performance with signal conditions.
- Compare internal antenna performance against external antenna configurations to quantify the improvement achievable in challenging locations.
- Test beamforming effectiveness by intentionally rotating the CPE orientation and measuring throughput stability — good beamforming implementations should maintain consistent performance across moderate orientation changes.
As 5G FWA continues to displace fixed-line broadband in both developed and emerging markets, the antenna architecture of CPE devices will increasingly differentiate vendor offerings in terms of real-world throughput, coverage range, and deployment flexibility. For enterprise buyers, a rigorous understanding of MIMO, beamforming, and external antenna options is essential to selecting CPE that meets not just laboratory specifications but actual field performance requirements.
